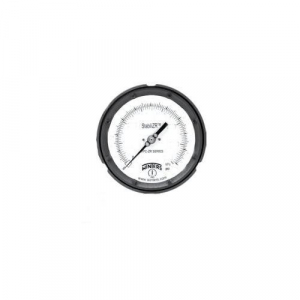

Winters PPC5284ZR
Winterszoom
brand:
manufacturer:
Description:
<p><strong>Features: </strong> </p> <ul><li>StabiliZRTM dampened movement minimizes effects of pulsation and vibration as effectively as liquid filled gauges </li> <li>Solid phenolic front and polypropylene pressure relief back safety case </li> <li>+/-0.5% accuracy </li> <li>Stainless steel full rotary movement </li> <li>Micrometer adjustable pointer for ease in calibration </li> <li>Under and overload stops </li> <li>316L stainless steel or brass wetted parts standard </li> <li>Restricted orifice standard on dual scale </li> <li>ASME B40.100 compliant </li> <li>CRN registered </li> </ul> <p><strong>Applications: </strong> </p> <ul><li>Ideally suited for process, chemical, petroleum and power industries </li> <li>Suitable for non-clogging corrosive media </li> <li>Used where operator safety is a requirement </li> <li>Processes where pulsation and vibration exist </li> </ul>

Attributes

Key Value
Accuracy+/-0.5% ANSI/ASME Grade 2A
Ambient TemperatureDry: -40F to 250F (-40C to 120C) Glycerin Filled: -4F to 150F (-20C to 65C)
Bourdon Tube316L SS, drawn seamless
CaseBlack phenolic with pressure relief back, solid front, integral back flange
Connection1/4" Back
Dial4.5" (115mm) white aluminum with black and red markings
Pressure Relief BackPolypropylene
Socket, TubeBRASS
Solid WallPhenolic
Working PressureMaximum 75% of full scale value
