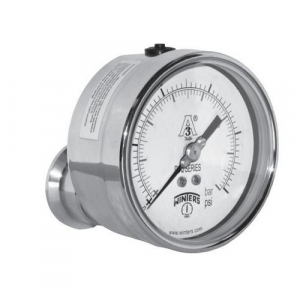

<p><strong>Winters, PSQ201025B, PSQ 4" Dial, 30"/0/150 PSI/bar, 2" 3A All-Purpose Quality Sanitary Gauge </strong> </p> <p><strong>Features: </strong> </p> <ul><li>Quality series for all sanitary gauge systems </li> <li>Food grade glycerin filling standard </li> <li>Electro-polish finish </li> <li>Industrial grade polycarbonate lens standard </li> <li>Clean-In-Place and steam-in-place design </li> <li>2" Tri-Clamp<sup>? </sup> connections back </li> <li>ASME B40.100 compliant </li> <li>CRN Registered </li> <li>5 year warranty </li> </ul> <p><strong>Applications: </strong> </p> <ul><li>Built to withstand all sanitary applications where 3A approval is required including food, beverage and dairy installations </li> </ul>
Attributes
| Key | Value |
|---|---|
| Accuracy | ?1.0% of full scale |
| Agency Compliance | 3A standard 74-05 |
| Ambient Temperature | Glycerin filled: 40?F to 150?F (4?C to 65?C) |
| Bezel, Case | 304 SS, polished |
| Bourdon Tube, Socket | 316 SS |
| Case Fill | Food grade glycerin standard (Dry, mineral oil, silicone and Neobee-20 optional) |
| CIP Temperature Limit | 250?F (121?C) continuous |
| Dial Size | 4" (100mm) Back |
| Enclosure Rating | IP65/NEMA 4x |
| Lens | Polycarbonate |
| Movement | 304 SS |
| Process Temperature | 0?F to 250?F (-18?C to 121?C) |
| Range Scale | 30"/0/150 PSI/bar |
| Re-zero Feature | Adjustable micrometer pointer (4" dial only) |
| SIP Temperature Limit | 266?F (130?C) 1 hour, dry |
| System Fill | Food grade glycerin standard (Mineral oil, silicone and Neobee-20 optional) |
| Wetted Parts | 316L SS, Ra=8 microinches |
