Description:

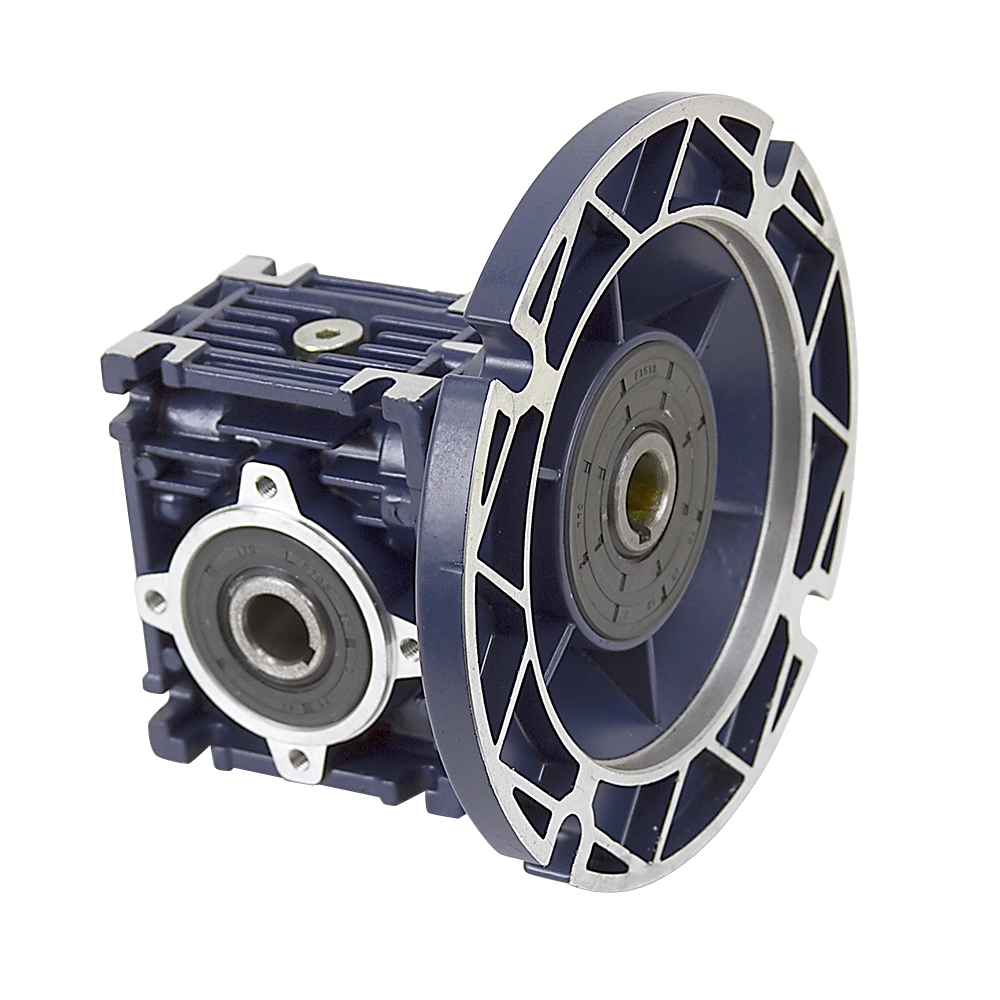

Aluminum Right Angle Worm Gear Reducer, 30 mm C.D., 20/1, 56C Input Flange, Hollow Bore Output Worldwide CALM30-20/1-56C, Aluminum Worm Gear Reducers,WorldWide Electric,CALM30-20/1-56C,
Attributes
| Key ^ | Value |
|---|---|
| Back Mount | 71mm x 44mm |
| Box Size | 30 mm Center Distance |
| Brand | World Wide Electric |
| Efficiency | 74 % |
| Gear Ratio | 20:1 |
| Input Bore | 5/8" keyed, 3/16" keyway |
| Input Hp (1.0 S.F.) | 0.28 Hp Max |
| Model Number | CALM30-20/1-56C |
| Motor Mount | 56C |
| Output Bore | 5/8" keyed, 3/16" keyway |
| Output RPM @ 1750 RPM Input | 88 RPM |
| Output Shaft Thrust Load | 40 lbs. Max |
| Output Torque | 151 in.-lb. Max |
| Over-Hung Load | 198 lbs. Max |
| Overall Size | 4.62" x 6.5" x 6.5" |
| Shpg. | 3 lbs. |
| Top & Bottom Mount | 54mm x 44mm |
