mpn:
brand:
manufacturer:
MPN:
Description:

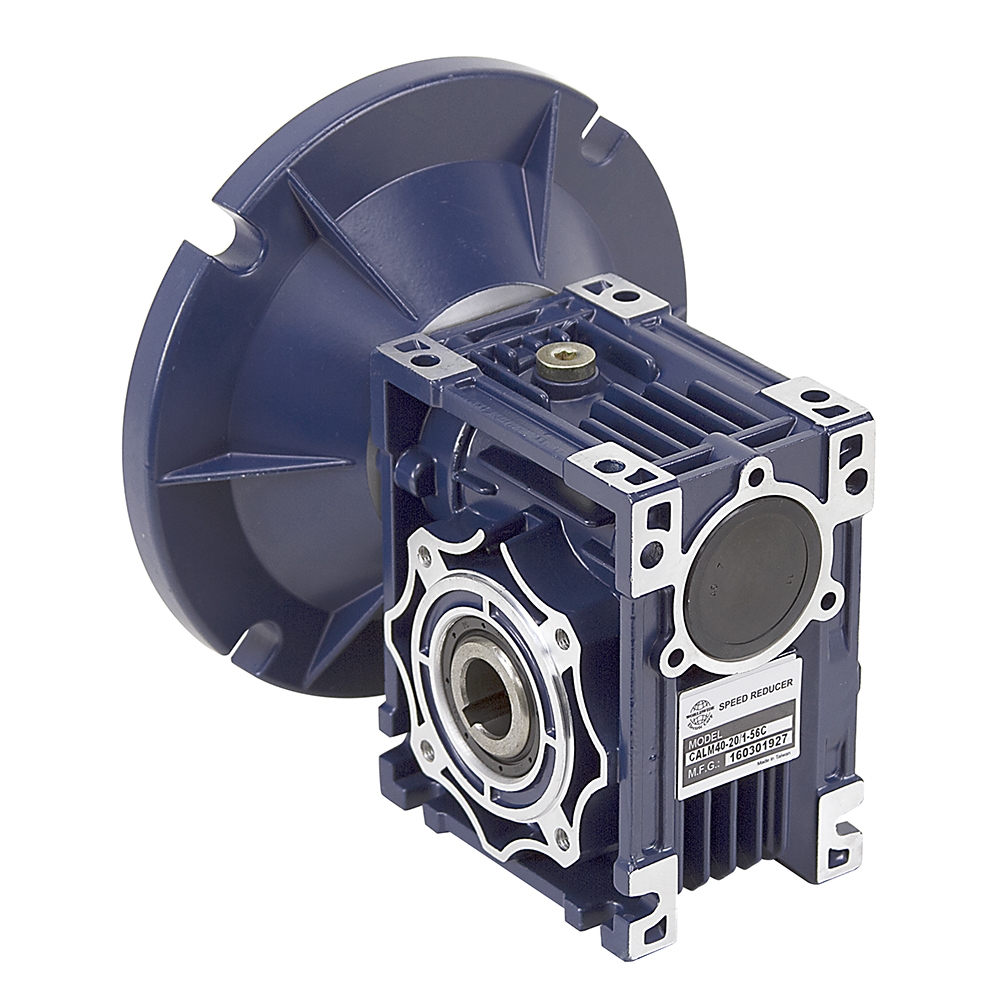

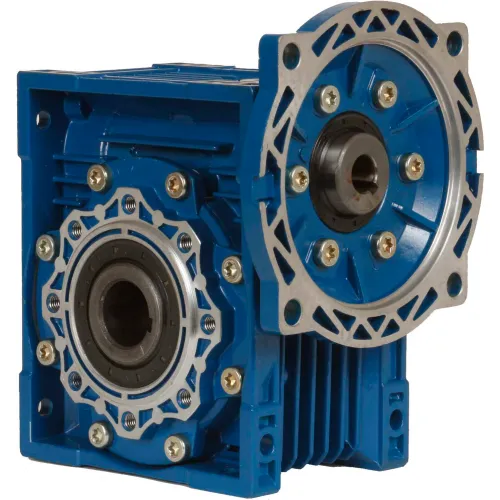

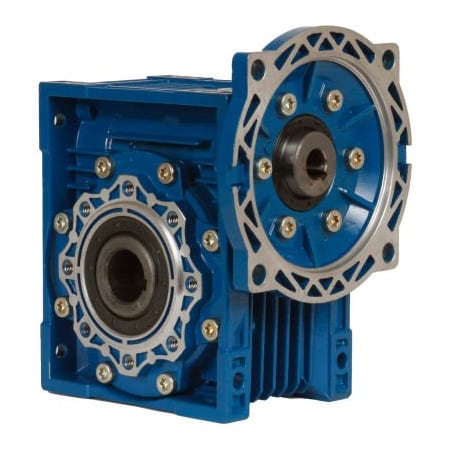

Aluminum Right Angle Worm Gear Reducer, 40 mm C.D., 20/1, 56C Input Flange, Hollow Bore Output Worldwide CALM40-20/1-56C, Aluminum Worm Gear Reducers,WorldWide Electric,CALM40-20/1-56C,
Weight:
0.3875
Weight:
0.3875 LB
Preferred Price:
311.33
Price:
311.33
Min Simple Price:
175.9
Absolute Min Price:
249.77
Min Price:
249.77
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
jU3MjA:::CALM40-20/1-56C
sku:
jU3MjA::1M:CALM40-20/1-56C@y0
condition:
11
seller:
surpluscenter.com
amzMan:
worldwide electric corporation
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Back Mount | 90mm x 60mm |
| Box Size | 40 mm Center Distance |
| Brand | World Wide Electric |
| Center Distance | 1.574 " |
| Efficiency | 79 % |
| Family Series | Worldwide Electric Corporation Gearboxes, CALM Series |
| Gear Ratio, Ratio | 20:1 |
| Gearbox Type | Worm |
| Gross Weight, Net Weight | 0 lbs |
| Input Bore | 5/8" keyed, 3/16" keyway |
| Input Bore Size | 0.625 " |
| Input Hp (1.0 S.F.) | 0.63 Hp Max |
| Input Type | Flange |
| Item Number, Manufacturer Part Number, Model Number | CALM40-20/1-56C |
| Manufacturer | Worldwide Electric Corporation |
| Material | Aluminum Alloy |
| Max Input HP (@ 1750 RPM) | 0.63 hp |
| Max OverHung Load (OHL) | 381 |
| Motor Frame Size | NEMA 56C |
| Motor Mount | 56C |
| Nominal Torque (in-lbs) | 361 in-lbs |
| Output Bore | 3/4" keyed, 3/16" keyway |
| Output RPM @ 1750 RPM Input, Output Speed (RPM) | 88 RPM |
| Output Shaft Diameter | 0.75 " |
| Output Shaft Thrust Load | 76 lbs. Max |
| Output Shaft Type | Hollow Shaft |
| Output Torque | 361 in.-lb. Max |
| Over-Hung Load | 381 lbs. Max |
| Overall Size | 5.37" x 6.5" x 6.75" |
| Package Quantity | 1 |
| Product Series | CALM |
| Shpg. | 6.2 lbs. |
| Top & Bottom Mount | 70mm x 60mm |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | surpluscenter.com | 13-1579-20-56C | 175.9 | 175.9 | 1 | In Stock | WorldWide Electric | 6.2 | 175.9 @ Qty: 1+ | |
 | Galco | CALM40-20/1-56C-WWEC | 195.64 | 195.64 | 1 | In Stock | Worldwide Electric Corporation | 195.64 @ Qty: 1+ | ||
 | National Supply Network | B1742129 | 196.65 | 196.65 | 1 | In Stock | Worldwide Electric Corporation | 196.65 @ Qty: 1+ | ||
 | Global Industrial | WBB1742129 | 219.95 | 219.95 | 1 | In Stock | Worldwide Electric Corporation | 219.95 @ Qty: 1+ | ||
 | Zoro | G204902329 | 259.99 | 259.99 | 1 | In Stock | 7 | Worldwide Electric | 259.99 @ Qty: 1+ |
