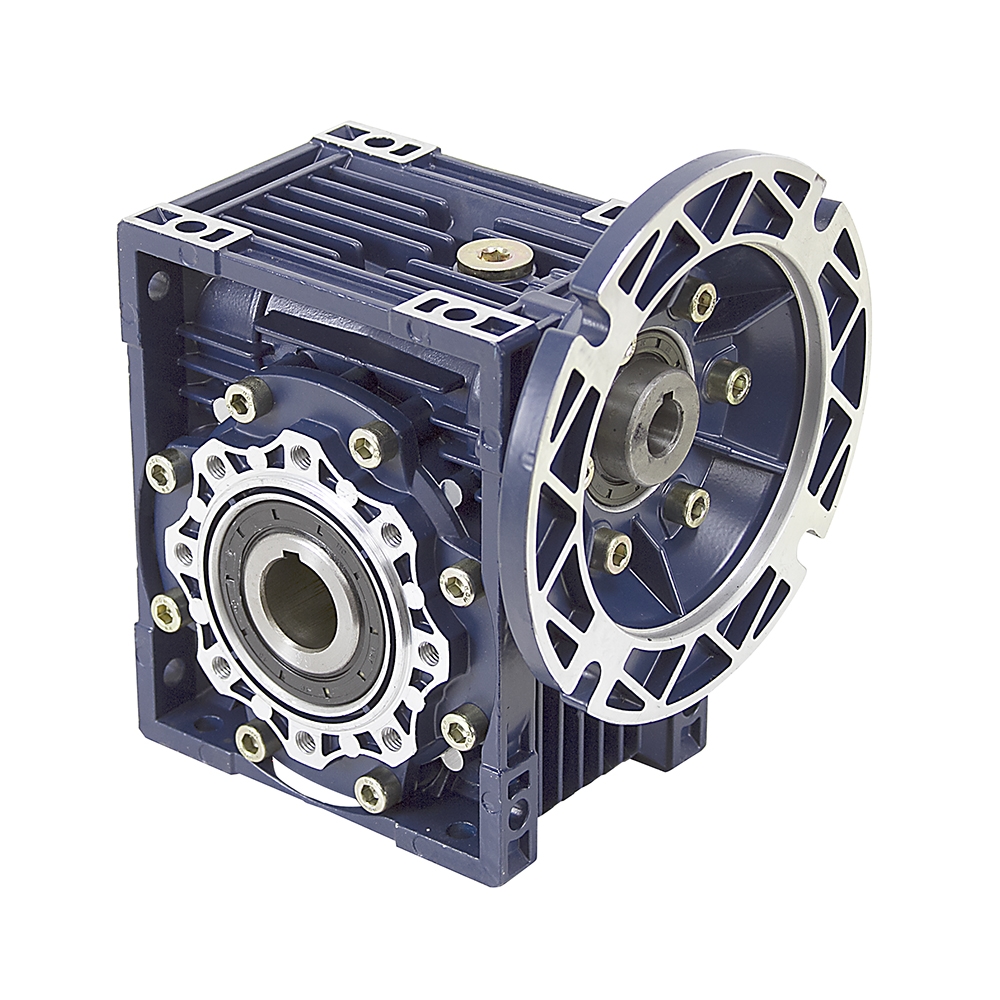

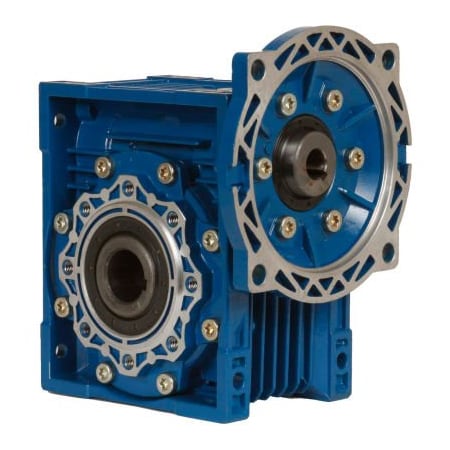

Worldwide Electric CALM63-10/1-56C Aluminum Worm Gear Reducer, 63mm, 10:1, 56C NEMA Frame

Worldwide Electric CALM63-10/1-56C Aluminum Worm Gear Reducer, 63mm, 10:1, 56C NEMA Framezoom

Attributes

Key Value
Back Mount130mm x 85mm
Box Size63 mm Center Distance
BrandWorld Wide Electric
Center Distance2.48 "
center distance mm63
Efficiency87 %
Family SeriesWorldwide Electric Corp.
Gear Ratio10:1
Gearbox TypeWorm
Gross Weight0 lbs
hp3.67
Input Bore5/8&QUOT keyed, 3/16&QU.
Input Bore Size0.625 "
Input Hp (1.0 S.F.)3.52 Hp Max
Input TypeFlange
Item NumberCALM63-10/1-56C
ManufacturerWorldwide Electric Corp.
Manufacturer Part NumberCALM63-10/1-56C
MaterialAluminum Alloy
materialAluminium
Max Input HP (@ 1750 RP.3.52 hp
Max OverHung Load (OHL)542
Model NumberCALM63-10/1-56C
Motor Frame SizeNEMA 56C
Motor Mount56C
nema frame56C
Net Weight0 lbs
Nominal Torque (in-lbs)1,108 in-lbs
Output Bore1-1/8&QUOT keyed, 1/4&.
Output RPM @ 1750 RPM I.175 RPM
output rpm at 1800 rpm .175
Output Shaft Diameter1.125 "
Output Shaft Thrust Load108 lbs. Max
Output Shaft TypeHollow Shaft
Output Speed (RPM)175 RPM
Output Torque1108 in.-lb. Max
Over-Hung Load542 lbs. Max
Overall Size6.87&QUOT x 6.5&QUOT x .
Product SeriesCALM
Ratio10:1
Shpg.13 lbs.
Top & Bottom Mount100mm x 85mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNational Supply NetworkB1742159305.831In StockWorldwide Electric Corporation305.83 @ 1
thumbzoomsurpluscenter.com13-1581-10-56C314.41In StockWorldWide Electric13.0314.4 @ 1
thumbzoomGlobal IndustrialWBB1742159327.951In StockWorldwide Electric Corporation327.95 @ 1
thumbzoomGalcoCALM63-10/1-56C-WWEC349.641In StockWorldwide Electric Corporation349.64 @ 1
thumbzoomZoroG704902157470.991In Stock10Worldwide Electric470.99 @ 1
