WorldWide Electric Corporation

B07D6KFZ2P

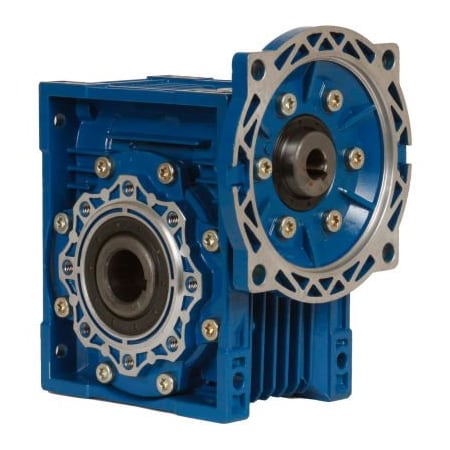

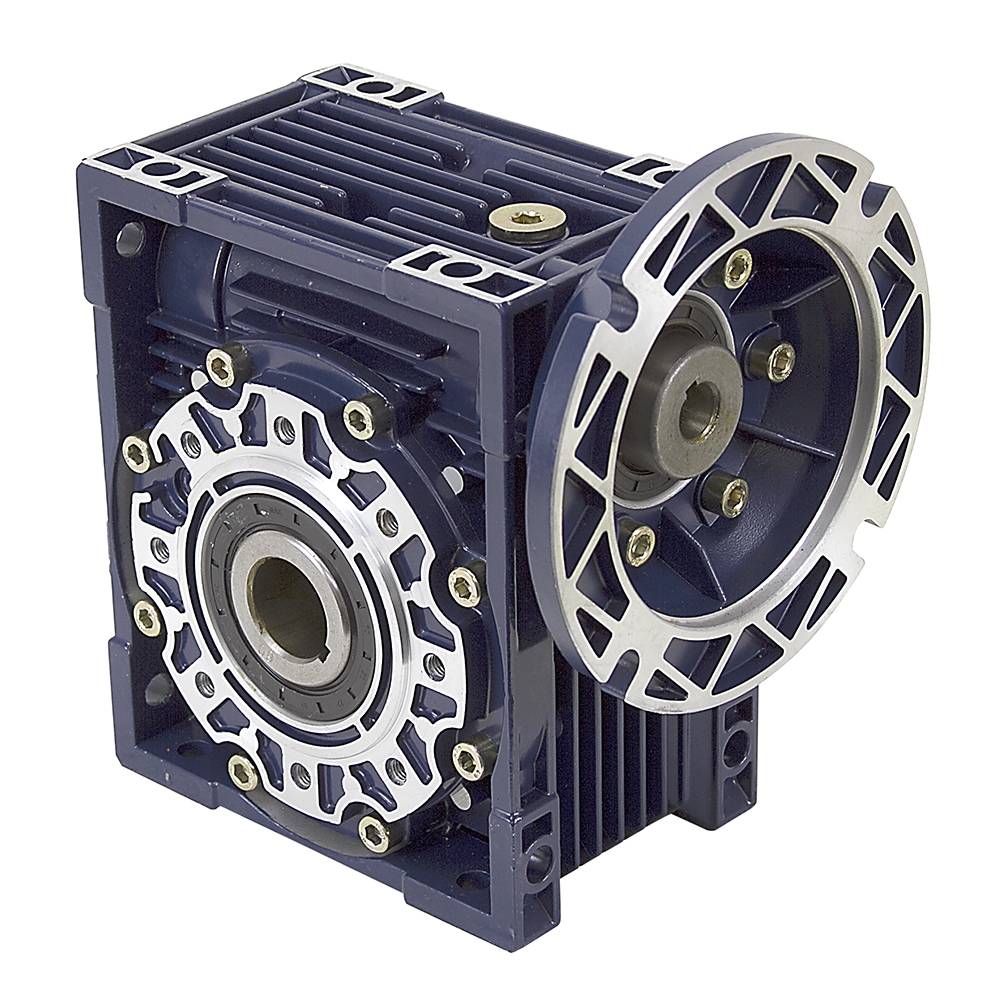

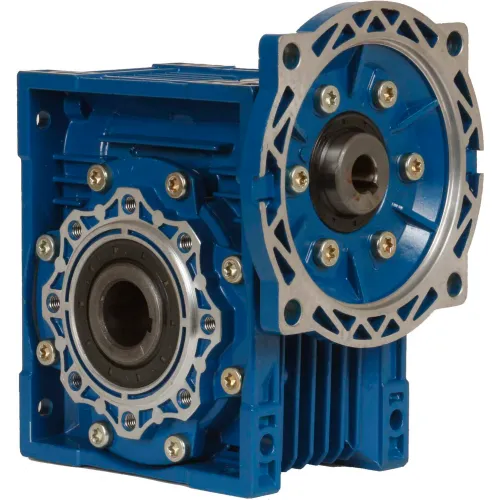

Worldwide Electric CALM75-20/1-145TC Aluminum Worm Gear Reducer, 75mm, 20:1, 145TC NEMA Frame

Worldwide Electric CALM75-20/1-145TC Aluminum Worm Gear Reducer, 75mm, 20:1, 145TC NEMA Framezoom

Attributes

Key Value
Back Mount153mm x 90mm
Box Size75 mm Center Distance
BrandWorld Wide Electric
Center Distance2.952 "
Efficiency84 %
Family SeriesWorldwide Electric Corp.
Gear Ratio20:1
Gearbox TypeWorm
Gross Weight0 lbs
Input Bore7/8&QUOT keyed, 3/16&QU.
Input Bore Size0.875 "
Input Hp (1.0 S.F.)3.24 Hp Max
Input TypeFlange
Item NumberCALM75-20/1-145TC
ManufacturerWorldwide Electric Corp.
Manufacturer Part NumberCALM75-20/1-145TC
MaterialAluminum Alloy
Max Input HP (@ 1750 RP.3.24 hp
Max OverHung Load (OHL)806
Model NumberCALM75-20/1-145TC
Motor Frame SizeNEMA 145TC
Motor Mount145TC
Net Weight0 lbs
Nominal Torque (in-lbs)1,953 in-lbs
Output Bore1-1/4&QUOT keyed, 1/4&.
Output RPM @ 1750 RPM I.88 RPM
Output Shaft Diameter1.25 "
Output Shaft Thrust Load161 lbs. Max
Output Shaft TypeHollow Shaft
Output Speed (RPM)88 RPM
Output Torque1953 in.-lb. Max
Over-Hung Load806 lbs. Max
Overall Size8.37&QUOT x 6.5&QUOT x .
Product SeriesCALM
Ratio20:1
Shpg.19 lbs.
Top & Bottom Mount120mm x 90mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNational Supply NetworkB1742144431.941In StockWorldwide Electric Corporation431.94 @ 1
thumbzoomsurpluscenter.com13-1582-20-145TC439.751In StockWorldWide Electric19.0439.75 @ 1
thumbzoomGlobal IndustrialWBB1742144464.951In StockWorldwide Electric Corporation464.95 @ 1
thumbzoomGalcoCALM75-20/1-145TC-WWEC505.881In StockWorldwide Electric Corporation505.88 @ 1
thumbzoomZoroG104902177786.991In StockWorldwide Electric786.99 @ 1
