WorldWide Electric Corporation

B07D6JFV52

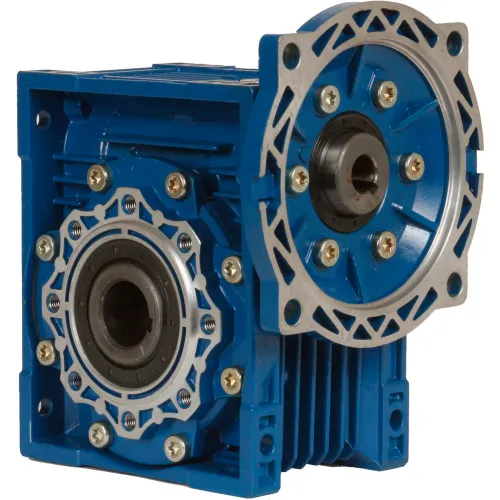

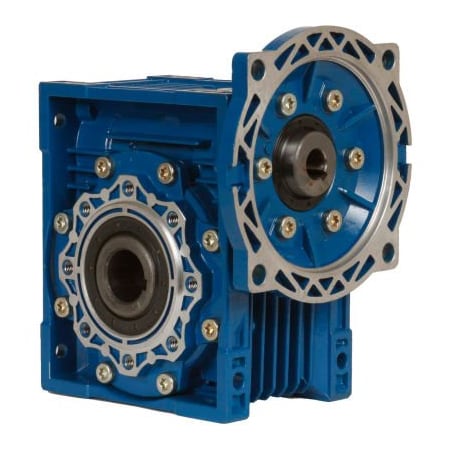

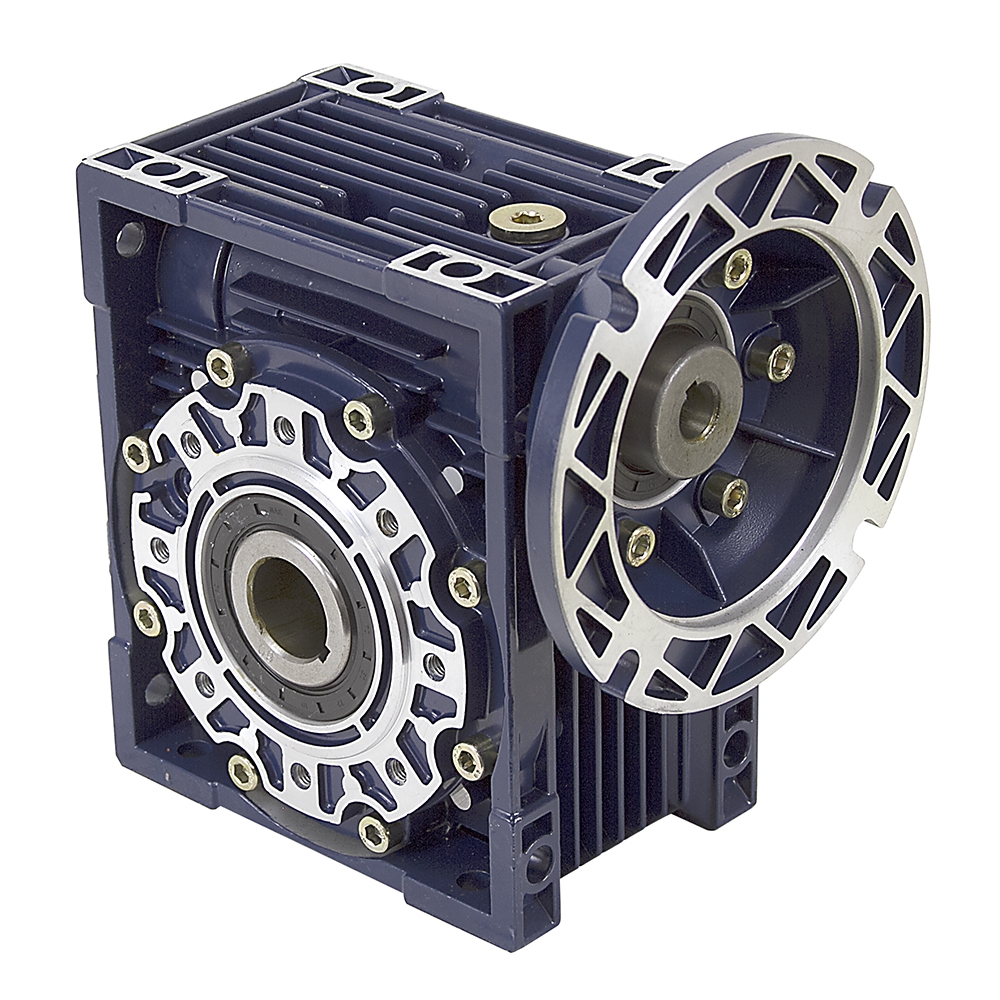

Worldwide Electric CALM75-25/1-56C Aluminum Worm Gear Reducer, 75mm, 25:1, 56C NEMA Frame

Worldwide Electric CALM75-25/1-56C Aluminum Worm Gear Reducer, 75mm, 25:1, 56C NEMA Framezoom

Attributes

Key Value
Back Mount153mm x 90mm
Box Size75 mm Center Distance
BrandWorld Wide Electric
Center Distance2.952 "
center distance mm75
Country of Origin (subj.Taiwan, Province of Chi.
Efficiency82 %
Family SeriesWorldwide Electric Corp.
Gear Ratio25:1
Gearbox TypeWorm
Gross Weight0 lbs
hp2.45
Input Bore7/8&QUOT keyed, 3/16&QU.
Input Bore Size0.875 "
Input Hp (1.0 S.F.)2.43 Hp Max
Input TypeFlange
Item NumberCALM75-25/1-56C
ManufacturerWorldwide Electric Corp.
Manufacturer Part NumberCALM75-25/1-56C
MaterialAluminum Alloy
materialAluminium
Max Input HP (@ 1750 RP.2.43 hp
Max OverHung Load (OHL)868
Model NumberCALM75-25/1-56C
Motor Frame SizeNEMA 56C
Motor Mount145TC
nema frame56C
Net Weight0 lbs
Nominal Torque (in-lbs)1,784 in-lbs
Output Bore1-1/4&QUOT keyed, 1/4&.
Output RPM @ 1750 RPM I.70 RPM
output rpm at 1800 rpm .70
Output Shaft Diameter1.25 "
Output Shaft Thrust Load174 lbs. Max
Output Shaft TypeHollow Shaft
Output Speed (RPM)70 RPM
Output Torque1784 in.-lb. Max
Over-Hung Load868 lbs. Max
Overall Size8.37&QUOT x 6.5&QUOT x .
Product SeriesCALM
Ratio25:1
Shpg.19 lbs.
Top & Bottom Mount120mm x 90mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNational Supply NetworkB1742183438.031In StockWorldwide Electric Corporation438.03 @ 1
thumbzoomsurpluscenter.com13-1582-25-56C439.751In StockWorldWide Electric19.0439.75 @ 1
thumbzoomGlobal IndustrialWBB1742183488.951In StockWorldwide Electric Corporation488.95 @ 1
thumbzoomGalcoCALM75-25/1-56C-WWEC505.881In StockWorldwide Electric Corporation505.88 @ 1
thumbzoomZoroG004902499974.11In Stock9Worldwide Electric974.1 @ 1
