Worldwide Electric HdRF154-40/1-L-56C

B00KC4HDIG

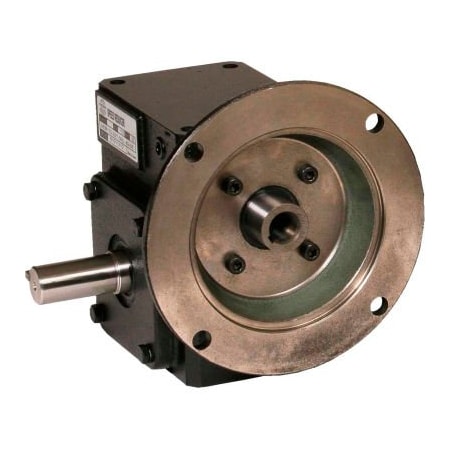

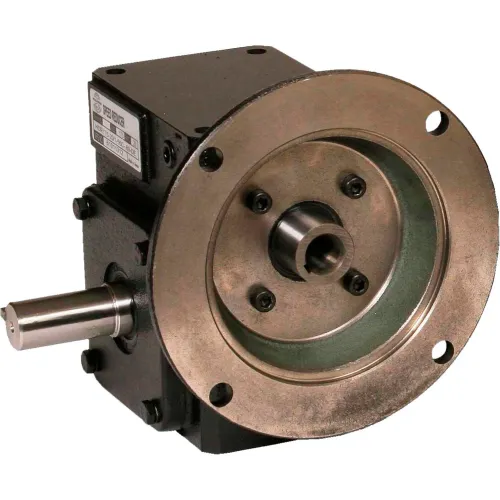

Worldwide Electric HdRF154-40/1-L-56C Worm Gear Reducers, Left Hand Output, 40:1 Ratio, 44 Output RPM, 56C Frame, 1.54" WCD Center

Worldwide Electric HdRF154-40/1-L-56C Worm Gear Reducers, Left Hand Output, 40:1 Ratio, 44 Output RPM, 56C Frame, 1.54" WCD Centerzoom

Attributes

Key Value
Box size154
Box Size154
Center Distance1.54 ", 1.54
ClassificationRight Angle Worm
Country of Origin (subj.Taiwan, Province of Chi.
Description:Worm Gear Reducer - 40:.
Family SeriesWorldwide Electric Corp.
Frame56C
Gearbox TypeWorm
Gross Weight0 lbs
Input Bore Size0.625 "
Input TypeFlange
Input typeFlange input
Item ConditionFactory New
Item NumberHdRF154-40/1-L-56C
ManufacturerWorldwide, Worldwide El.
Manufacturer Part NumberHdRF154-40/1-L-56C
MaterialCast Iron
MAX HP0.51
Max Input HP (@ 1750 RP.0.51 hp
Max Output Torque503
Max OverHung Load (OHL)450
MFG Part #:HdRF154-40/1-L-56C
Motor Frame SizeNEMA 56C
NEMA Motor frame56C
Net Weight0 lbs
Nominal Torque (in-lbs)503 in-lbs
Nominall Ratio40:1
OHL450
Output RPM at 1800 RPM .44
Output Shaft Diameter0.75 "
Output Shaft TypeLeft Handed Shaft
Output Speed (RPM)44 RPM
Output typeLeft hand
Output TypeLeft Hand Shaft
Product SeriesHDR
Ratio1, 40:1
RPM44
Stages1
Supplier:Worldwide Electric Corp.
Warranty lengthOne year
WCD center1.54 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNational Supply NetworkB1856573229.921In StockWorldwide Electric Corporation229.92 @ 1
thumbzoomDealers ElectricHDRF154-40/1-L-56C242.31In StockWorldwide41.0242.3 @ 1
thumbzoomMRO Supply1848428246.631In StockWorldWide Electric246.63 @ 1
thumbzoomGalcoHDRF154-40/1-L-56C-WWEC257.671In StockWorldwide Electric Corporation257.67 @ 1
thumbzoomGlobal IndustrialWBB1856573258.951In StockWorldwide Electric Corporation258.95 @ 1
kscdirect.comWWE HDRF154-40/1-L-56C274.661In StockWorldwide Electric Corporation274.66 @ 1
thumbzoomZoroG404902532434.031In StockWorldwide Electric434.03 @ 1
