brand:
manufacturer:
Description:

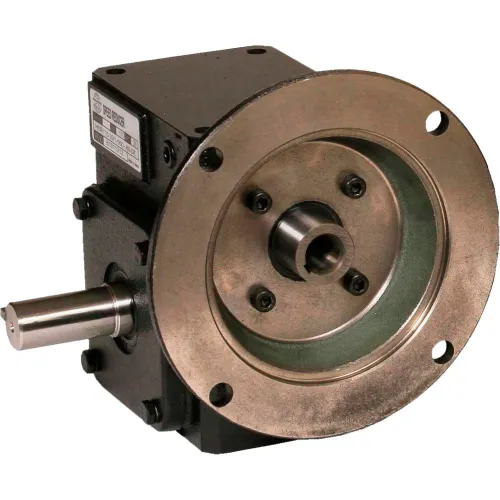

HdRF175-30/1-L-56C 1.75CD 30:1 56C FR
Weight:
27.0
Weight:
27.0 LB
Preferred Price:
430.0
Price:
430.0
Min Simple Price:
242.94
Absolute Min Price:
344.97
Min Price:
344.97
Dimensions:
[10.0, 10.0, 10.0]
qty:
21
simpleSku:
NTU2NA:::HDRF175-30/1-L-56C
sku:
NTU2NA::A0:HDRF175-30/1-L-56C@y0
condition:
11
seller:
National Supply Network
amzMan:
worldwide electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Box Size, Box size | 175 |
| Center Distance | 1.75, 1.75 " |
| Classification | Right Angle Worm |
| Description: | Worm Gear Reducer - 30:1 Ratio - LH Shaft Output |
| Family Series | Worldwide Electric Corporation Gearboxes, HdR Series |
| Frame, NEMA Motor frame | 56C |
| Gearbox Type | Worm |
| Gross Weight, Net Weight | 0 lbs |
| Input Bore Size | 0.625 " |
| Input Type | Flange |
| Input type | Flange input |
| Item Condition | Factory New |
| Item Number, Manufacturer Part Number, MFG Part #: | HdRF175-30/1-L-56C |
| Manufacturer | Worldwide |
| Manufacturer, Supplier: | Worldwide Electric Corporation |
| Material | Cast Iron |
| MAX HP | 0.78 |
| Max Input HP (@ 1750 RPM) | 0.89 hp |
| Max Output Torque | 666 |
| Max OverHung Load (OHL), OHL | 650 |
| Motor Frame Size | NEMA 56C |
| Nominal Torque (in-lbs) | 666 in-lbs |
| Nominall Ratio, Ratio | 30:1 |
| Output RPM at 1800 RPM input, RPM | 58 |
| Output Shaft Diameter | 0.875 " |
| Output Shaft Type | Left Handed Shaft |
| Output Speed (RPM) | 58 RPM |
| Output type | Left hand |
| Output Type | Left Hand Shaft |
| Product Series | HDR |
| Ratio, Stages | 1 |
| Warranty length | One year |
| WCD center | 1.75 in |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | National Supply Network | B1856399 | 242.94 | 242.94 | 1 | In Stock | Worldwide Electric Corporation | 242.94 @ Qty: 1+ | ||
 | Global Industrial | WBB1856399 | 256.95 | 256.95 | 1 | In Stock | Worldwide Electric Corporation | 256.95 @ Qty: 1+ | ||
 | Dealers Electric | HDRF175-30/1-L-56C | 266.93 | 266.93 | 1 | In Stock | Worldwide | 27.0 | 266.93 @ Qty: 1+ | |
 | MRO Supply | 1848420 | 271.7 | 271.7 | 1 | In Stock | WorldWide Electric | 271.7 @ Qty: 1+ | ||
 | Galco | HDRF175-30/1-L-56C-WWEC | 283.87 | 283.87 | 1 | In Stock | Worldwide Electric Corporation | 283.87 @ Qty: 1+ | ||
| kscdirect.com | WWE HDRF175-30/1-L-56C | 302.58 | 302.58 | 1 | In Stock | Worldwide Electric Corporation | 302.58 @ Qty: 1+ | |||
 | Zoro | G304902243 | 390.99 | 390.99 | 1 | In Stock | 50 | Worldwide Electric | 390.99 @ Qty: 1+ |
