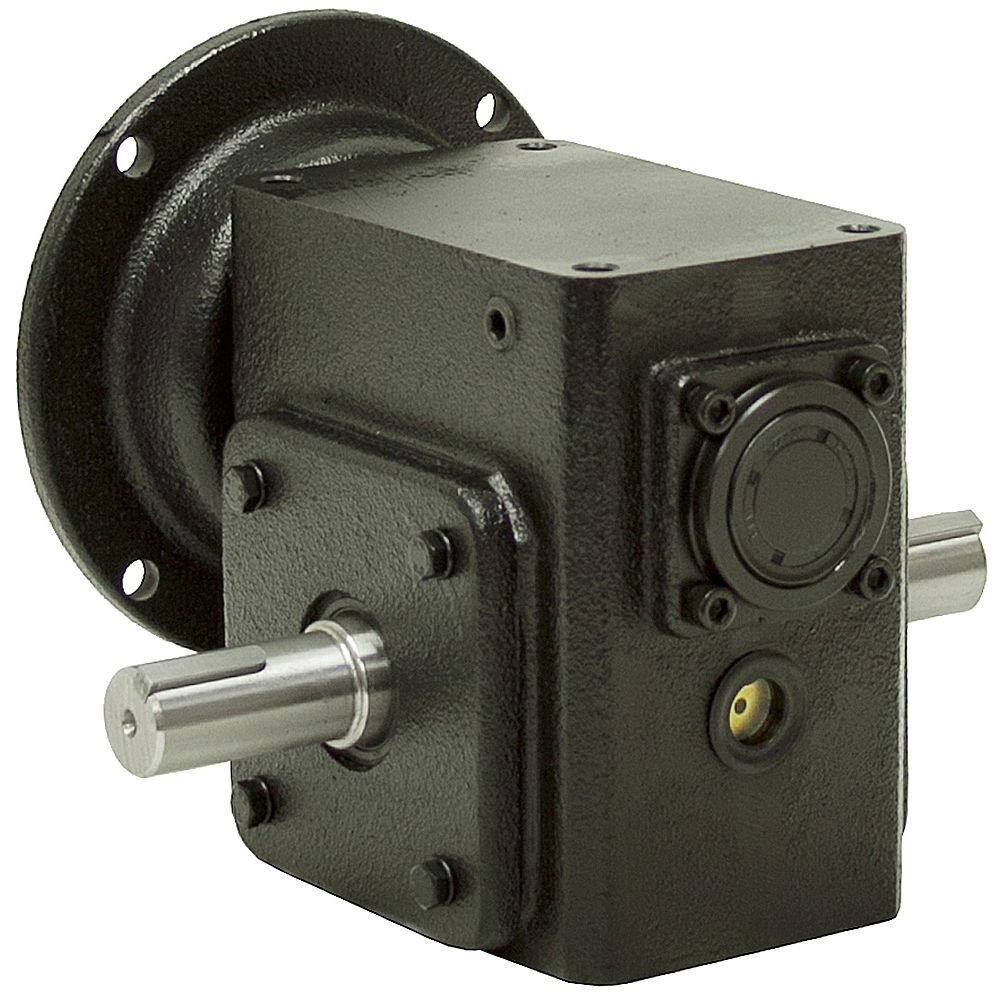

30:1 Right Angle Cast Iron Worm Gear Reducer 2.22 HP 56C Dual Output Worldwide HDRF-262-30-DE-56C, Worldwide Electric, 30:1 RA GEAR REDUCER 2.22 HPWorldWide Electric,HDRF-262-30-DE-56C ,
Attributes
| Key | Value |
|---|---|
| Input Bore | 5/8" keyed |
| Input Power | 2.22 HP max. |
| Input Speed | 1725 RPM max. |
| Motor Mount | 56C |
| Mount | 6-3/8" x 3-3/8" centers |
| Output Centerline Height | 2.938" |
| Output Shafts | 1-1/8" dia. x 2-5/8" keyed |
| Output Speed | 58 RPM max. |
| Output Torque | 1827 in-lb. max. |
| Output Type | Dual shaft |
| Overhung Load | 612 lbs. |
| Ratio | 30:1 |
| Shpg. | 56 lbs. |
| Size | 9-7/16" x 6-1/2" x 8-13/16" |
