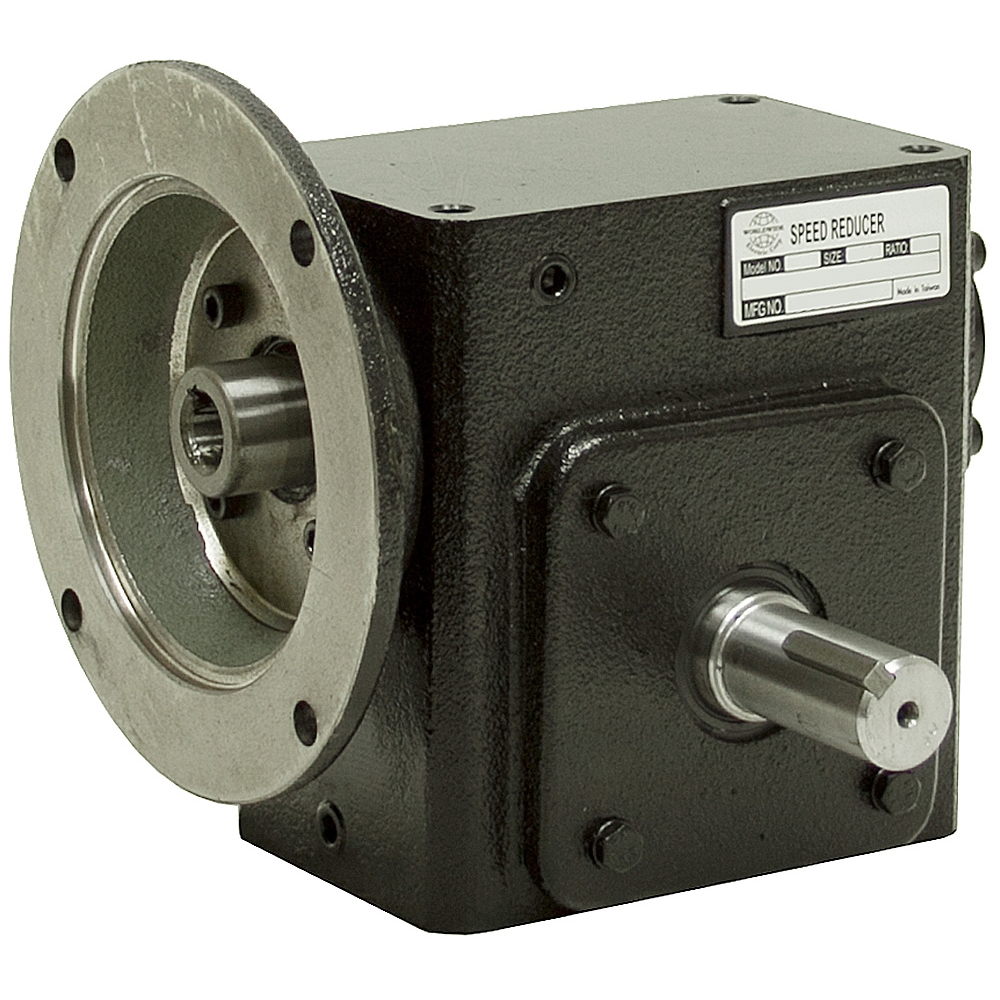

40:1 Right Angle Cast Iron Worm Gear Reducer 1.85 HP 56C Right Output Worldwide HDRF-262-40-R-56C, Cast Iron C-Face Motor Mount Gear Reducers, 40:1 RAWorldWide Electric,HDRF-262-40-R-56C ,
Attributes
| Key ^ | Value |
|---|---|
| Input Bore | 5/8" keyed |
| Input Power | 1.85 HP max. |
| Input Speed | 1725 RPM max. |
| Motor Mount | 56C |
| Mount | 6-3/8" x 3-3/8" centers |
| Output Centerline Height | 2.938" |
| Output Shaft | 1-1/8" dia. x 2-5/8" keyed |
| Output Speed | 44 RPM max. |
| Output Torque | 1919 in-lb. max. |
| Output Type | Right hand shaft |
| Overhung Load | 720 lbs. |
| Ratio | 40:1 |
| Shpg. | 56 lbs. |
| Size | 9-7/16" x 6-1/2" x 8-13/16" |
