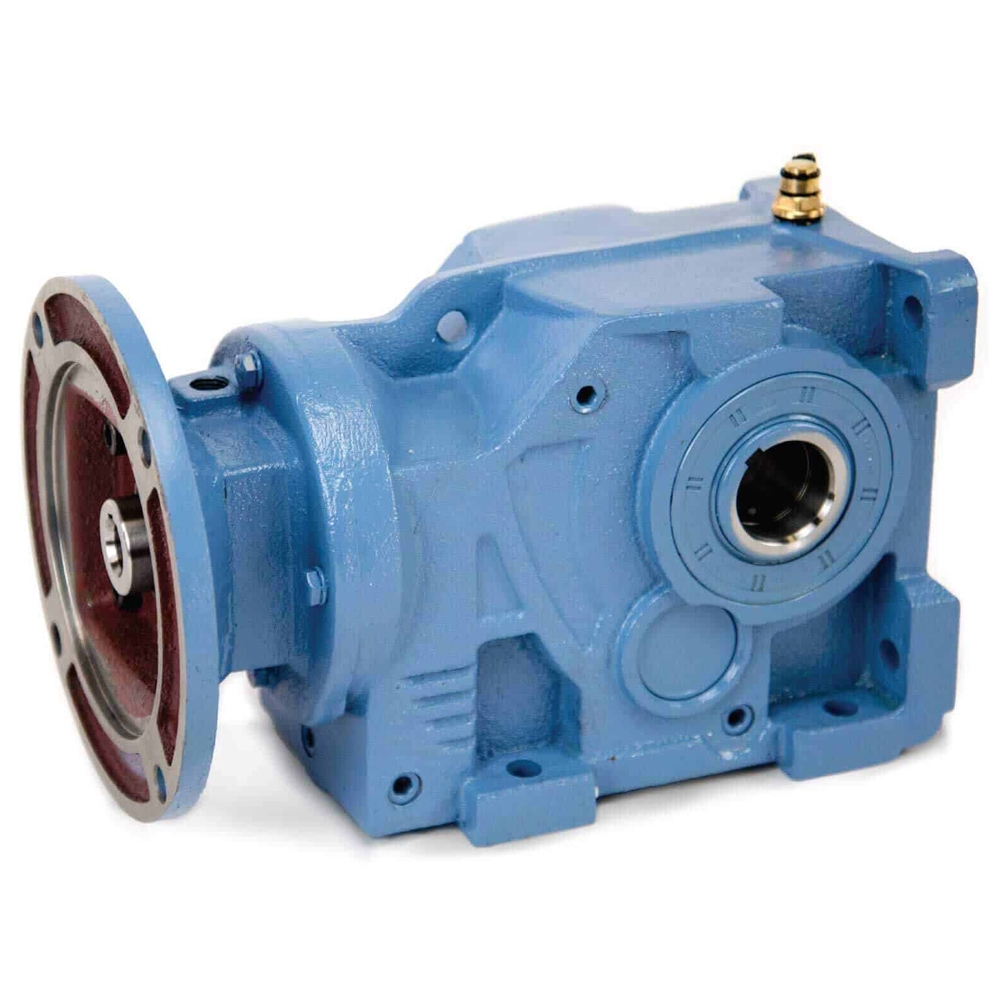

43.31:1 Size 87 14.76 HP Helical Bevel Gear Reducer Worldwide KHN87-40/1-H-213/215TC, Worldwide KHN Helical Bevel Reducers, 43.31:1 Size 87 14.76 HPWorldWide Electric,KHN87-40/1-H-213/215TC,
Attributes
| Key ^ | Value |
|---|---|
| Actual Ratio | 43.31:1 |
| Box Size | 87 |
| Cross Reference | SEW K87 |
| Gear Stages | 3 |
| Horizontal Foot Mount | Four 0.87" holes on 7.09" x 7.09" centers |
| Input HP | 14.76 HP max. |
| Manufacturer | World Wide Electric |
| Model Number | KHN87-40/1-H-213/5TC |
| Motor Mount | 213/5TC |
| Nominal Ratio | 40:1 |
| Output Bore | 2-3/8" Hollow Keyed, 5/8" Keyway |
| Output RPM @ 1750 RPM Input | 40 RPM |
| Output Torque | 20870 in.-lbs. max. |
| Over-Hung Load | 2410 lbs. max. |
| Shpg. | 236 lbs. |
| Size | 20.26" x 9.0" x 13.39" |
| Vertical Foot Mount | Four 0.87" holes on 7.09" x 9.17" centers |
