Description:
23.31:1 Size 77 3 HP Inline Cast Iron Gear Reducer Worldwide WINL77-20/1-182/4TC, Worldwide Electric, 23.31:1 SIZE 77 3 HP INLINE GEAR REDUCERWorldWide Electric,WINL77-20/1-182/4TC ,
Attributes
| Key ^ | Value |
|---|---|
| Actual Ratio | 23.31:1 |
| Base Mount | Four 0.71" holes on 8.07" x 6.69" centers |
| Box Size | 77 |
| Input Hp | 3 Hp Max |

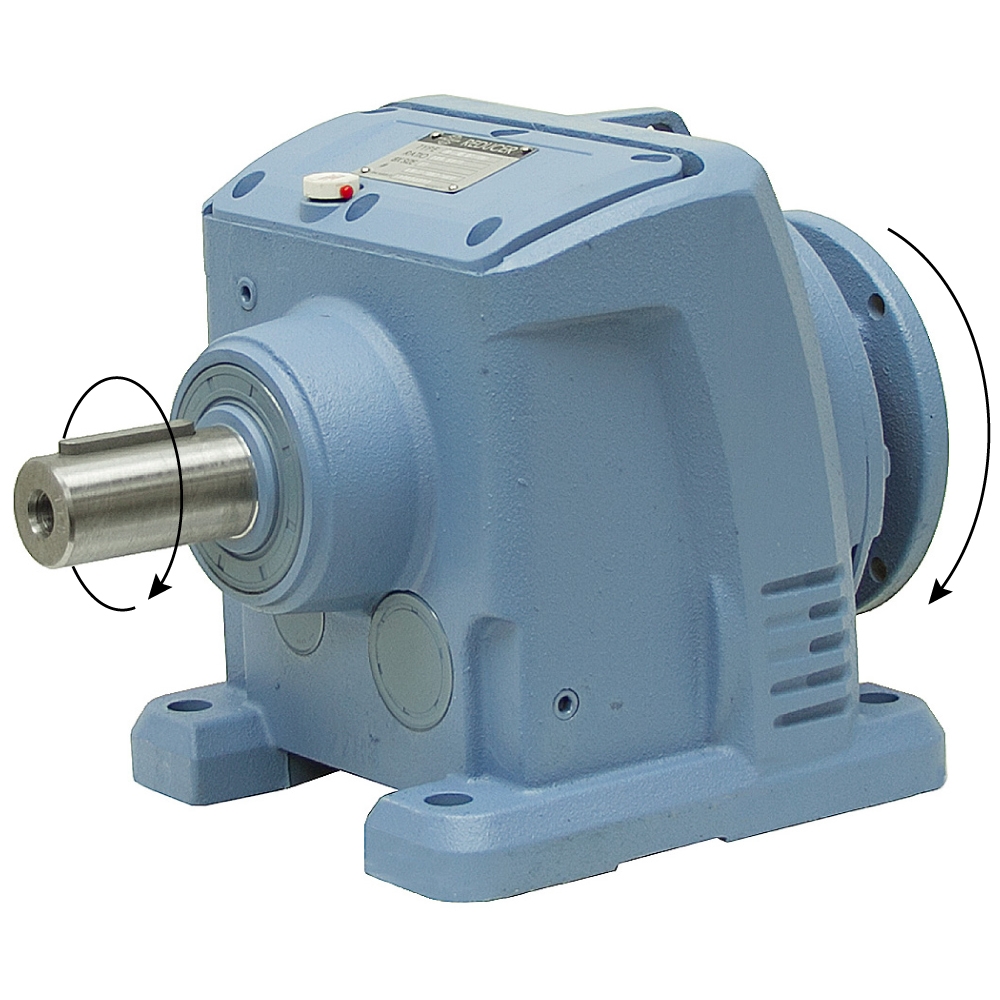

| Input Rotation | Reversible, see shaft relation in above photo |
| Model Number | WINL77-20/1-182/4TC |
| Motor Mount | 182TC |
| Nominal Ratio | 20:1 |
| Output RPM @ 1800 RPM Input | 75 RPM |
| Output Shaft | 1.625" dia. x 3.15" long keyed, 3/8" wide keyway, shaft end tapped 5/8"-11 |
| Output Torque | 2385 in.-lbs. Max |
| Over-Hung Load | 1330 lbs. Max |
| Service Class | III |
| Shpg. | 83 lbs. |
| Stages | 2 |
