Zebra DS4308-HL7U2100SCW
Zebrazoom
brand:
manufacturer:
Description:

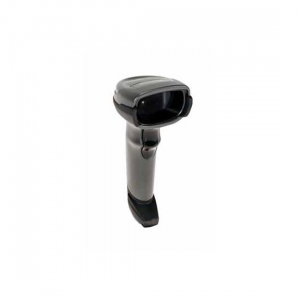

<p><strong>DS4308-HL7U2100SCW, DS4308-HL Checkpoint EAS Serial Kit Black </strong> </p> <p>The DS4308 is a feature-rich next generation 2D imager that resets the bar for scanning performance, scanning range, versatility and easeof-use. Workers can capture virtually any bar code faster than ever, whether it is displayed on a smartphone, tablet or computer or printed on a label - even if it is scratched, damaged or dirty. Its small and lightweight design offers the ergonomics your workers need for all day comfort in the most scan intensive jobs. A variety of models meet a wide range of business needs - from the Point-of-Sale in a retail store to the light industrial manufacturing production line. Regardless of which model you choose, you get one powerful Scanner that does the job of two. The Standard Range (SR) model offers an extraordinary range, eliminating the need to purchase separate standard and extended range Scanners. The High Density (HD) model scans standard bar codes as well as the tiny, dense barcodes commonly found on jewelry tags, consumer electronics and electronic components - eliminating the need to purchase separate standard and high density specialty Scanners. And driver?s license parsing can be added to either model. </p> <p>Zebra EVM, DS4308-HL,, Checkpoint EAS (with Stand) Usb Kit: Ds4308-hl00007zcww Scanner, CBA-u21-s07zar Shielded USB Cable, 20-71043-04r Stand, Black </p>

Attributes

Key ^Value
1DUPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
2DPDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Han Xin
Ambient Light Immunitymmune to normal indoor lighting up to 1600 Lux; immune to sunlight up to 86,000 Lux
Dimensions6.48 in. H x 3.86 in. L x 2.64 in. W 16.5 cm H x 9.8 cm L x 6.7 cm W)
Drop SpecificationWithstands multiple 6 ft./1.83 m drops to concrete
EnvironmentalCompliant with RoHS directive 2011/65/EU
Humidity5% to 95%, non-condensing
Imager Field of View0 - 360? ? 65? or greater ? 60? or greater
Interfaces SupportedUSB, RS232, Keyboard Wedge, RS485 (IBM 46xx) , SSI The scanner supports the following protocols over USB: HID Keyboard (default mode), SNAPI, IBM SurePOS (Yellowstone) (IBM Handheld, IBM Tabletop, OPOS), USB CDC, SSI over USB CDC, Toshiba TEC The scanner supports the following protocols over RS232: Standard, Wincor Nixdorf, ICL, Fujitsu, Olivetti, Omron and CUTE
Light SourceAiming pattern: 617 nm LED Illumination: 660 nm LEDs
Minimum ResolutionSR: Code 39 4 mil, UPC 60% 7.8 mil, PDF417 5 mil, Datamatrix 7.5 mil HD: Code 39 3 mil, UPC 60% 7.8 mil, PDF417 4 mil, Datamatrix 5 mil
Motion TolerancesUp to 30 in. / 76.2 cm per second
Operating Temp.32? F to 122? F/0? C to 50? C
PostalAustralian Post, US PLANET, Royal Mail 4 State Customer, US POSTNET, KIX Code (Dutch), UK Postal, Japan Post, UPU 4 State Postal FICS (Post US4), USPS 4 State Postal (Post US3), Canadian Post (Postbar)
Power5 VDC ? 10% at 360 mA (RMS typical)
Print Contrast20% minimum reflective difference
Storage Temp.-40? F to 158? F/-40? C to 70? C
Weight (w/o cable)5.71 oz. / 162 g
