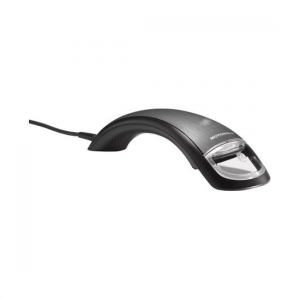

<p><strong>DS4801-DL4U0000SGN, DS4801 1D/2D Imager with Integrated USB Cable, White, DL Parsing </strong> </p> <p>Ready for the high-profile point of sale of today, the DS4800 Series marries chic consumer styling that is at home in the most fashion-conscious decor with innovative technologies that deliver enterprise-class flexibility, reliability, functionality and manageability. No matter what type of barcode shows up at the POS, the DS4800 Series is ready, able to scan 1D and 2D codes that are printed on paper labels, displayed on a mobile phone screen, poorly printed, damaged or high density. And with optional driver?s license support, you can decode and parse the information in the PDF417 barcodes found on U.S. driver?s licenses, automating age and identity verification, auto-population of credit and admission applications and more. </p> <p>DS4801 Kit, DL Parsing 1D/2D Imager, Includes DS4801-DL00004ZZNA With Integrated USB Cable, 20-71048-04R Stand, Black </p>
Attributes
| Key ^ | Value |
|---|---|
| 1D | All major 1-D bar codes |
| 2D | PDF417, DataMatrix, QR Code, Aztec, Composite Codes and MaxiCode |
| Bar Code Symbologies | 1-D: UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1- 128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concatenated 2-D: PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Han Xin Postal: Australian Post, US PLANET, Royal Mail 4 State Customer, US POSTNET, KIX Code (Dutch), UK Postal , Japan Post, UPU 4 State Postal FICS (Post US4), USPS 4 State Postal (Post US3) |
| Dimensions | 7.47 in. L x 2.61 in. W x 1.90 in. H 19.0 cm L x 6.6 cm W x 4.8 H |
| Drop Specification | Withstands multiple 5 ft. (1.5 m) drops to concrete |
| Humidity | 5% to 95% RH, non condensing |
| Light Source | Aiming 606nm LED; Illumination: 640nm LED |
| Minimum Print Contrast | 20% |
| Motion Tolerance | Up to 20 in./sec. |
| Operating Temp. | 32? F to 104? F/0? C to 40? C |
| Pitch Tolerance | 82? (measured using 100% UPC-A; ?3 degree accuracy) |
| Postal | US Postnet, US Planet, UK Postal, Australian Postal, Japan Postal |
| Power | 5VDC +- 10% at 360 mA ( RMS Typical) |
| Roll Tolerance | 360? |
| Sealing | IP40 |
| Skew Tolerance | 86? (measured using 100% UPC-A; ?3 degree accuracy) |
| Storage Temp. | -40? F to 158? F/-40? C to 70 ? C |
| Supported Host Interfaces | USB |
| Tumble Testing | 250 cycles (500 drops) in 1/2 meter tumbler |
| Weight (w/o cable) | 6 oz. (168 g) including cable, cable weight = 2 oz. (53g) |
