Description:

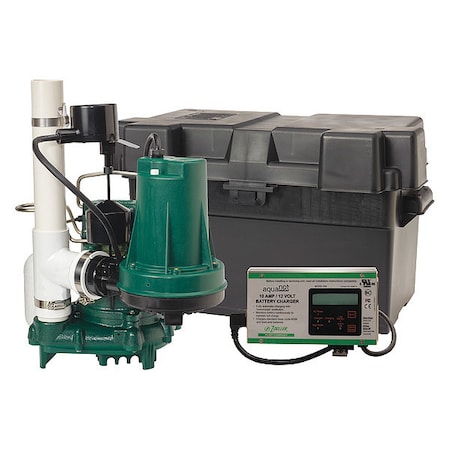

Sump/Battery Back-Up System
Attributes
| Key ^ | Value |
|---|---|
| Alarm Output | Audible |
| Body Dia. | 8 in |
| Body Material | Cast Iron (Primary) |
| Cord Length | 9 ft |
| Cord Length - Pumps | 9 ft. |
| Diameter | 8" (Secondary), 7-7/8" (Secondary) |
| Discharge Dia. | 1 1/2 in |
| Flow Rate @ 10 Ft. of Head | 34.0 gpm (Primary); 30.0 gpm (Secondary) |
| Height | 10-1/16" |
| HP | 3/10 (Primary); 1/3 (Secondary) |
| Length | 10-1/16" (Primary), 7-7/8" (Secondary) |
| Manufacturers Warranty Length | 3 yr |
| Max. Dia. Solids (In.) - Back-Up, Max. Diameter Solids | 1/2" |
| Max. Head | 19.0 ft (Primary); 22.0 ft (Secondary) |
| Min. Sump Pit Dia. | 18 in |
| Overall Height, Primary Pump Overall Height | 10 1/16 in |
| Primary Pump Maximum Solids Diameter | 1/2 in |
| Primary Pump Width at Widest Point, Width at Widest Point | 8 7/8 in |
| Secondary Pump Body Diameter | 7 7/8 in |
| Switch Actuation | Vertical Float |
| Width | 8-7/8" |
