mpn:
brand:
manufacturer:
MPN:
Weight:
53.0
Weight:
53.0 LB
Preferred Price:
2005.21
Price:
2005.21
Min Simple Price:
1132.89
Absolute Min Price:
1608.7
Min Price:
1608.7
Dimensions:
[12.0, 11.0, 9.0]
qty:
21
simpleSku:
MzQ2Mw:::508-0011
sku:
MzQ2Mw::DV:508-0011@y0
condition:
11
seller:
Zoro
amzMan:
zoeller
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Agency Compliance | CSA |
| Alarm Application | Indoor |
| Alarm Included | Yes |
| Alarm Output | Audible |
| Amps | 9.4 A |
| Body Dia. | 8 in |
| Body Material | Cast Iron (Primary) |
| Cord Length | 9 ft |
| Cord Length - Pumps | 9 ft. |
| Diameter | 8" (Primary), 7-7/8" (Secondary) |
| Discharge | 1-1/2 in M PVC Glue |
| Discharge Dia. | 1 1/2 in |
| Duty Cycle | Intermittent |
| Flow Rate @ 10 Ft. of Head | 61.0 gpm (Primary): 30.0 gpm (Secondary), 61.0 gpm (Primary); 30.0 gpm (Secondary) |
| Flow Rate @ 15 Ft. of Head | 45.0 gpm (Primary): 20.0 gpm (Secondary) |
| Flow Rate @ 20 Ft. of Head | 25.0 gpm (Primary) |
| Flow Rate @ 5 Ft. of Head | 72.0 gpm (Primary): 39.0 gpm (Secondary) |
| Height | 12" |
| HP | 1/2 (Primary); 1/3 (Secondary), 1/2 (Primary): 1/3 (Secondary) |
| Impeller Material | Cast Iron (Primary): Thermoplastic (Secondary) |
| Includes | 0 |

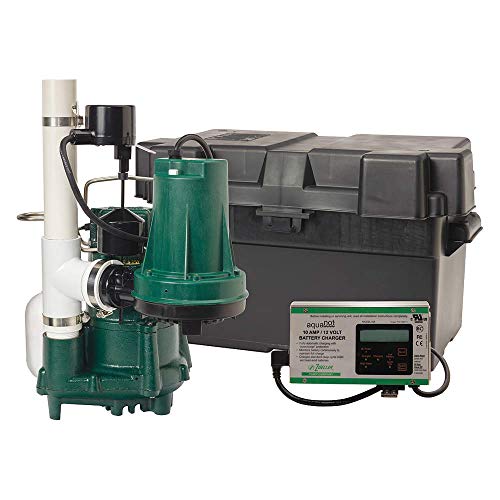

| Item | Sump/Battery Back-Up System |
| Length | 10-1/8" (Primary), 7-7/8" (Secondary) |
| Manufacturers Warranty Length | 3 yr |
| Max. Dia. Solids (In.) - Back-Up, Max. Diameter Solids | 1/2" |
| Max. Head | 23.0 ft (Primary); 22.0 ft (Secondary), 23.0 ft (Primary): 22.0 ft (Secondary) |
| Max. Liquid Temp. | 130 Degrees F |
| Min. Sump Pit Dia. | 18 in |
| Off Point, On Point | Adjustable |
| Overall Height, Primary Pump Overall Height | 12 in |
| Primary Pump Hz | 60 |
| Primary Pump Maximum Solids Diameter | 1/2 in |
| Primary Pump Phase | 1 |
| Primary Pump Width at Widest Point, Width at Widest Point | 8 7/8 in |
| RPM | 3,450 RPM |
| Secondary Pump Body Diameter | 7 7/8 in |
| Shaft Seal Material - Pumps | Carbon, Ceramic |
| Switch Actuation | Vertical Float |
| Switch Electrical Connection | Integral, Piggyback |
| Width | 8-7/8" |
