Description:

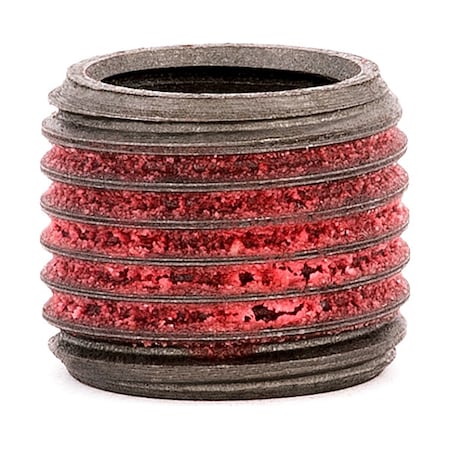

Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 9/16 In.-18, Drill Bit Size 33/64, External Thread Fit 2A, External Thread Size 9/16 In.-18, Finish Black Phosphate, Insert Diameter 9/16 in, Internal Thread Fit 2B, Internal Thread Size M10-1.00, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.516 in, Minimum Installation Depth 33/64 in, Overall Length 12 mm, System of Measurement Inch/Metric, Thread Direction Right Hand, Thread Type Coarse
Attributes
| Key | Value |
|---|---|
| Brinell Hardness | 163 |
| Compatible Material | Metal |
| Compatible Tap Size | 9/16"-18 |
| Drill Bit Size, Minimum Installation Depth | 33/64 in |
| External Thread Fit | 2A |
| External Thread Size | 9/16"-12 |
| Features | Pre-Applied Adhesive |
| Finish | Black Phosphate |
| Insert Diameter | 9/16 in |
| Installation Method | Drive Tool, Screwdriver |
| Internal Thread Fit | 2B |
| Internal Thread Size | M10-1.00 |
| Item | Self Locking Thread Insert |
| Material | Steel |
| Material Grade/Class | 12L14 |
| Maximum Hole Diameter | 0.516 in |
| Overall Length | 12 mm |
| System of Measurement | Inch/Metric |
| Tensile Strength (PSI) | 78,300 psi |
| Thread Direction | Right Hand |
| Thread Pitch | 1 mm |
| Thread Type | Coarse |
| Wall Type | Heavy Wall |
