Description:

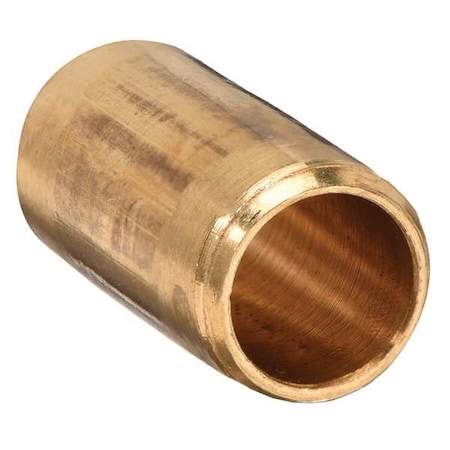

Pipe, Application Air, Natural Gas, Oil, Potable Water, Steam, Fitting Compatibility Class 300, Gravity Flow No, Inside Diameter 1/4 in, Material Red Brass, Material Grade ASTM B43, Maximum Operating Pressure 282 psi @ 450 Degrees F, Maximum Operating Temperature 400 Degrees F, Maximum Steam Pressure 282 psi @ 450 Degrees F, Metal Pipe Construction Seamless, Minimum Operating Temperature -20 Degrees F, Nominal Pipe Size 1/4 in, Outside Diameter 1/2 in, Overall Length 3 ft
Attributes
| Key ^ | Value |
|---|---|
| Basic Pipe Fitting Material | Metal |
| Inside Diameter, Nominal Pipe Size, Pipe Size - Nominal | 1/4 in |
| Item | Red Brass Pipe |
| Material (Pipe), Material - Pipe | Red Brass |
| Maximum Steam Pressure | 282 psi @ 450 Degrees F |
| Outside Dia., Outside Diameter | 1/2 in |
| Overall Length, Overall Pipe Length | 3 ft |
| Pipe Connection Type | Threaded on Both Ends |
| Pipe Schedule | 80 |
| Pipe Size (Fittings), Pipe Size (Nominal) | 1/4" |
| Pipe Thread Type | MNPT x MNPT |
| Pipe Type | Pipe |
| Pressure (PSI) | 250 |
| Pressure Level | Medium Pressure (300-999 psi) |
| Schedule | Schedule 80 |
| Standards | ASTM B43, NSF 372, NSF 61 |
| Temp. Range | - 20 To 400 Degrees F |
| Thread Size | 18" |
