| Basic Gauge Case Material | Plastic |
| Basic Gauge Lens Material | Plastic |
| Basic Gauge Sensor Material | Bronze |
| Basic Gauge Socket Material | Brass |
| Basic Gauge Wetted Parts | Brass / Bronze |
| Calibration Certificate Included | No |
| Case Color | Black |
| Connection Location | Lower |
| Connection Size | 1/4" NPT |
| Country of Origin (subject to change) | China |
| Gauge Accuracy | +/-3-2-3% |
| Gauge Application | General Purpose |
| Gauge Case Color | Black |
| Gauge Case Material | ABS Plastic |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Connection Type | MNPT |
| Gauge Filled With | Glycerin |
| Gauge Lens Material | Acrylic |
| Gauge Nominal Dial Size | 3-1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Smallest Graduation | 100 |
| Gauge Primary Range Units | psi |
| Gauge Primary Range Values | 0 to 3000 |
| Gauge Secondary Range Units | kPa |
| Gauge Secondary Range Values | 0 to 20,000 |
| Gauge Sensor Material | Bronze |
| Gauge Socket Material | Brass |

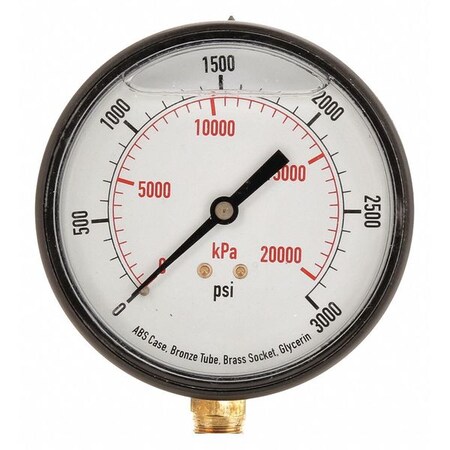

| Item | Pressure Gauge |
| Liquid Filled | Yes |
| Operating Temp. Range | -40 Degrees to 150 Degrees F |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Range | 0 to 3000 psi, 0 to 20,000 kPa |
| Smallest Graduation | 100 psi |
