| Accuracy Scale | Mid-Scale |
| Accuracy, Gauge Accuracy | +/-3-2-3% |
| Ambient Operating Temperature Range, Operating Temp. Range | -40 Degrees to 150 Degrees F |
| Basic Gauge Case Material, Basic Gauge Lens Material, Case Material - Gauge, Lens Material - Gauge | Plastic |
| Basic Gauge Sensor Material, Gauge Sensor Material, Sensor Material | Bronze |
| Basic Gauge Socket Material, Gauge Socket Material, Socket Material | Brass |
| Basic Gauge Wetted Parts, Gauge Wetted Parts | Brass / Bronze |
| Bezel Material | Crimped Stainless Steel |
| Blowout Safety Back, Calibration Certificate Included, Cleaned for Oxygen Service, Field Fillable, Freeze Resistant Movement, Gauge Panel Mountable, Includes Calibration Certificate, Includes Mounting Hardware, Includes Vent Plug, Liquid Filled, Liquid-Filled Case, Non-Sparking, Panel-Mountable, Removable Bezel | No |
| Case Color, Color, Gauge Case Color | Black |
| Connection Location, Gauge Connection Location, Process Connection Location | Bottom |
| Connection Size | 1/8 in NPT |
| Country of Origin (subject to change) | China |
| Dial Color | White |
| Dial Size (In.) | 1-1/2 |
| Dry Dampening Feature, Gauge Case Liquid, Vibration Resistance | None |
| For Use With | Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators |
| Gauge Application | Test |
| Gauge Case Material, Material | ABS plastic |
| Gauge Connection Size, Process Connection Size | 1/8 in |
| Gauge Connection Type | MNPT |
| Gauge Lens Material, Lens Material | Acrylic |
| Gauge Nominal Dial Size, Nominal Dial Size | 1 1/2 in |
| Gauge Primary Range Smallest Graduation | 10 |
| Gauge Primary Range Units, Primary Scale Units | psi |
| Gauge Primary Range Values, Primary Pressure Range | 0 to 400 |
| Gauge Secondary Range Units, Secondary Scale Units | kPa |
| Gauge Secondary Range Values | 0 to 2800 |
| Hazardous Location Rating, IP/NEMA Rating | Not Rated |

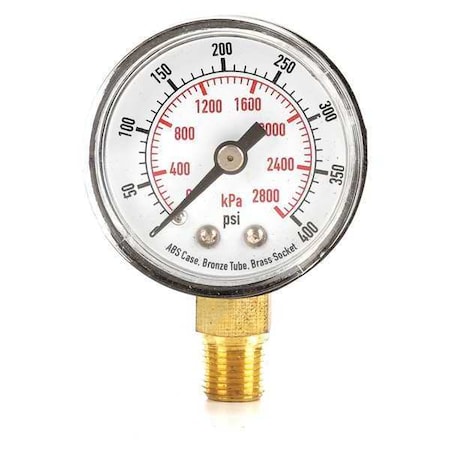

| Item | Commercial Pressure Gauge |
| Max. Pressure (PSI) | 400 |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | General Purpose Dial Pressure Gauge |
| Pressure Range Type | Pressure |
| Primary Graduations | 1 |
| Primary Scale Minor Graduations | 1, 2 |
| Process Connection Gender | Male |
| Process Connection Type | NPT |
| Range | 0 to 2800 kPa, 0 to 400 psi |
| Scale Type | Dual |
| Secondary Pressure Range | 0 to 2,800 |
| Secondary Range | 0 to 2,800 kPa |
| Smallest Graduation | 10 psi |
