Description:

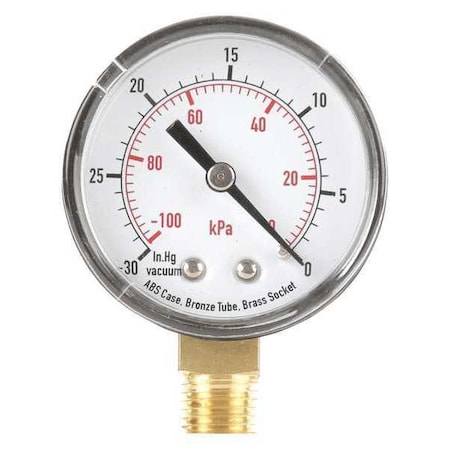

Commercial Vacuum Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type General Purpose Dial Pressure Gauge
Attributes
| Key ^ | Value |
|---|---|
| Basic Gauge Case Material | Plastic |
| Basic Gauge Socket Material | Brass |
| Basic Gauge Wetted Parts | Brass / Bronze |
| Calibration Certificate Included, Liquid Filled | No |
| Connection Location | Lower |
| Connection Size | 1/4 in NPT |
| Gauge Accuracy | +/-3-2-3% |
| Gauge Application | General-Purpose Case |
| Gauge Connection Location | Bottom |
| Gauge Connection Size, Process Connection Size | 1/4 in |
| Gauge Connection Type | MNPT |
| Gauge Nominal Dial Size, Nominal Dial Size | 2 in |
| Gauge Primary Range Smallest Graduation | 1 |
| Gauge Primary Range Units | in Hg |
| Gauge Primary Range Values | -30 to 0 |
| Gauge Secondary Range Values | -100 to 0 |
| Item | Commercial Vacuum Gauge |
| Operating Temp. Range | -40 Degrees to 150 Degrees F |
| Pressure and Vacuum Gauge Type | Vacuum Gauge |
| Range | 100 kPa Vac to 0, 30 in Hg Vac to 0 |
| Smallest Graduation | 1 in Hg |
