Description:

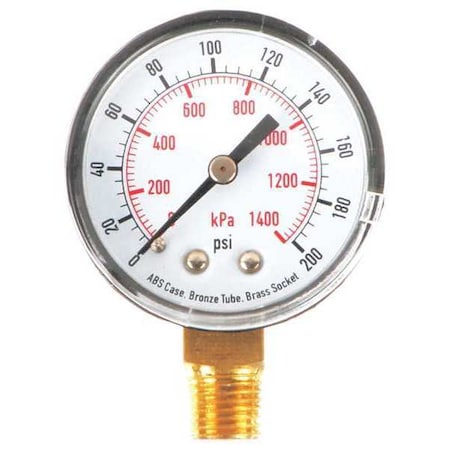

Commercial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type General Purpose Dial Pressure Gauge
Attributes
| Key ^ | Value |
|---|---|
| Accuracy | +/-3-2-3% |
| Basic Gauge Case Material, Basic Gauge Lens Material | Plastic |
| Basic Gauge Sensor Material | Bronze |
| Case Color, Color | Black |
| Connection Location | Bottom |
| Connection Size | 1/4 in NPT |
| Dial Size (In.) | 2 |
| For Use With | Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators |
| Gauge Application | Test |
| Gauge Connection Size, Process Connection Size | 1/4 in |
| Gauge Connection Type | MNPT |
| Gauge Nominal Dial Size, Nominal Dial Size | 2 in |
| Gauge Primary Range Smallest Graduation | 5 |
| Gauge Primary Range Units | psi |
| Gauge Primary Range Values | 0 to 200 |
| Item | Commercial Pressure Gauge |
| Material | ABS plastic |
| Max. Pressure (PSI) | 200 |
| Operating Temp. Range | -40 Degrees to 150 Degrees F |
| Range | 0 to 1400 kPa, 0 to 200 psi |
