Description:

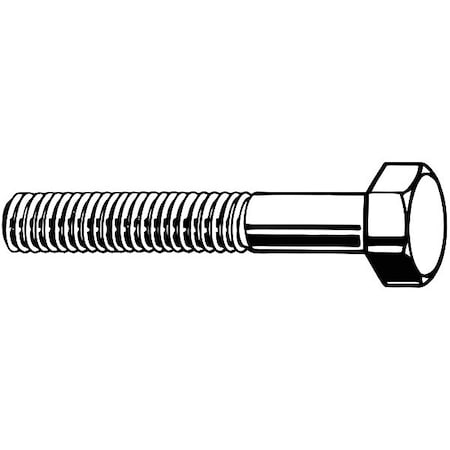

Hex Head Cap Screw, System of Measurement Inch, Basic Material Steel, Material Grade Grade 5, Fastener Finish Zinc Plated, Dia./Thread Size 3/8 In.-24, Fastener Length 1 1/2 in, Fastener Thread Direction Right Hand, Fastener Thread Type UNF (Fine), Fastener Thread Style Partially Threaded, Fastener Industry Standards ASME B18.2.1, Head Type Hex, Min. Thread Length 1 in, Head Height 15/64 in, Head Width 9/16 in, Package Quantity 350
Attributes
| Key ^ | Value |
|---|---|
| Drive | External Hex |
| Fastener Length | 1-1/2 in |
| Finish | Zinc Plated |
| Globally Sourced | Globally Sourced |
| Head Height | 15/64 in |
| Head Width | 0.5625 in |
| Item | Hex Head Cap Screw |
| Material | Steel |
| Material Grade/Class | Grade 5 |
| Min. Thread Length, Minimum Thread Length | 1 in |
| Proof Load | 74,000 to 85,000 psi |
| Rockwell Hardness | HRC19 |
| Standards | ASME B18.2.1 SAE J429 |
| System of Measurement | Inch |
| Temp. Range | -58 Degrees to 302 Degrees F |
| Tensile Strength | 120,000 psi |
| Thread Direction | Right Hand |
| Thread Pitch, Thread Style | Partially Threaded |
| Thread Size | 3/8"-24 |
| Thread Type | UNF (Fine) |
