| Application | Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace |
| Caster Brake Included, Caster Temp. Range Available, ESD Conductive, Extended Lead, Includes Thread Guards, Thread Guards | No |
| Caster Brake Type, Caster Break Type | No Brake Included |
| Caster Core Material, Wheel Core Material, Wheel/Tread Material | Nylon |
| Caster Frame Material, Frame Material | Steel |
| Caster Load Rating Range | Extra-Heavy Duty |
| Caster Mounting Type | Plate |
| Caster Plate Hole Pattern, Mounting Plate Bolt Hole Pattern, Plate Caster Bolt Hole Pattern | D |
| Caster Plate Size | 140 mm x 175 mm |
| Caster Plate Thickness | 10 mm |
| Caster Product Group | Rigid Caster |
| Caster Sub-Type | Rigid |
| Caster Swivel Lock Type, Swivel Lock Type | No Lock Included |
| Caster Temp. Range | -25 Degrees To 80 Degrees C |
| Caster Wheel Bearings, Wheel Bearing Type | Precision Ball |
| Caster Wheel Shape, Tread, Tread Shape | Standard |
| Caster Wheel/Tread Material | Extra Heavy Duty Cast Nylon |
| Core Color | White |
| Country of Origin (subject to change) | Germany |
| Durometer, Wheel/Tread Hardness | 80 Shore D |
| Frame Finish | Zinc Plated, Yellow Passivated |
| Inside Bolt Hole Spacing, Outside Bolt Hole Spacing | 105 mm x 140 mm |

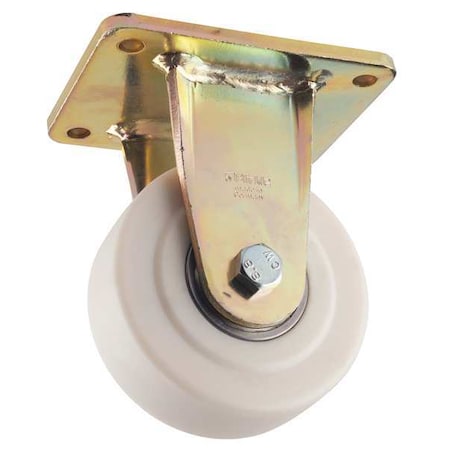

| Item | Rigid Plate Caster |
| Load Capacity | 2500 kg |
| Load Rating | 5500 lb |
| Load Rating Range | - |
| Mounting Bolt Dia. | M14 |
| Mounting Height | 8 1/8 in |
| Mounting Plate Size | 5 1/2 in x 6 7/8 in |
| Non-Marking | Yes |
| Number of Mounting Holes | 4 |
| Number of Wheels | 1 |
| Overall Height | 205 mm |
| Plate Size | 5-1/2" x 6-7/8" |
| Plate Thickness | 0.375" |
| Replacement Wheel | Mfr. No. GSPO 150/30K |
| Resistant To | High Chemical Resistance To Many Aggressive Substances |
| Series | BS Series |
| Standards | RoHS, ICWM |
| System of Measurement | Inch |
| Tread Color | Natural Beige |
| Wheel Color, Wheel/Tread Color | Beige |
| Wheel Dia. | 150 mm |
| Wheel Width | 55 mm |
| Wheel/Tread Hardness Rating | Hard |
