| Application | Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace |
| Caster Brake Included, Caster Temp. Range Available, Non-Marking | Yes |
| Caster Brake Type | Total Lock Brake |
| Caster Break Type | Stop Fix Brake (Total Lock) |
| Caster Core Material, Wheel Core Material | Aluminum |
| Caster Frame Material | Steel |
| Caster Load Rating Range | Medium Duty |
| Caster Max. Temp. | 160 Degrees F |
| Caster Min. Temp. | -15 Degrees F |
| Caster Mounting Type | Plate |
| Caster Plate Hole Pattern, Mounting Plate Bolt Hole Pattern, Plate Caster Bolt Hole Pattern | D |
| Caster Plate Size | 85 mm x 100 mm |
| Caster Plate Thickness | 3.5 mm |
| Caster Product Group | Swivel Caster With Brake |
| Caster Raceway, Swivel Raceway Type | Double Ball |
| Caster Sub-Type | Swivel |
| Caster Swivel Lock Type | Total-Lock |
| Caster Temp. Range | -25 Degrees To 70 Degrees C |
| Caster Wheel Bearings, Wheel Bearing Type | Precision Ball |
| Caster Wheel Shape | Crown |
| Caster Wheel/Tread Material | Besthane Soft Polyurethane |
| Core Color | Silver |
| Country of Origin (subject to change) | Germany |
| Durometer, Wheel/Tread Hardness | 75 Shore A |
| ESD Conductive, Extended Lead, Includes Thread Guards, Thread Guards | No |
| Features | Floor Protective, Sealed Swivel Bearing |
| Frame Finish | Zinc Plated |
| Includes | Stop-Fix Total-Lock Brake |
| Inside Bolt Hole Spacing, Outside Bolt Hole Spacing | 2-3/8 in x 3-1/8 in |

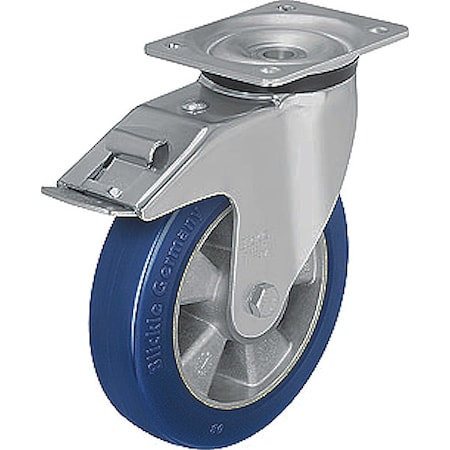

| Item | Swivel Plate Caster With Brake |
| Load Capacity | 350 kg |
| Load Rating | 770 lb |
| Load Rating Range | - |
| Mounting Bolt Dia. | M8 |
| Mounting Height | 6 1/8 in |
| Mounting Plate Size | 3 3/8 in x 3 15/16 in |
| Number of Mounting Holes | 4 |
| Number of Wheels | 1 |
| Overall Height | 155 mm |
| Replacement Wheel | Mfr. No. ALBS 125/15K |
| Resistant To | High Chemical Resistance To Many Aggressive Substances |
| Series | LK Series |
| Standards | RoHS, ICWM |
| Swivel Construction | Kingpin |
| Swivel Lock Type | Total Lock |
| Swivel Radius | 110.5 mm |
| System of Measurement | Metric |
| Tread Color, Wheel Color, Wheel/Tread Color | Blue |
| Tread, Tread Shape | Standard |
| Wheel Dia. | 125 mm |
| Wheel Width | 40 mm |
| Wheel/Tread Hardness Rating | Soft |
| Wheel/Tread Material | Polyurethane |
