brand:
manufacturer:
Weight:
0.13125
Weight:
0.13125 LB
Preferred Price:
60.37
Price:
60.37
Min Simple Price:
32.99
Absolute Min Price:
46.84
Min Price:
46.84
Dimensions:
[8.0, 6.0, 5.0]
qty:
9
simpleSku:
jM3MDU:::P12S-RP050B-12-WB-001
sku:
jM3MDU::GY:P12S-RP050B-12-WB-001@y0
condition:
11
seller:
Zoro
amzMan:
grainger approved
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Application | Retail, Industrial, Commercial |
| Caster Brake Included | Yes |
| Caster Brake Type | Side Pedal Brake |
| Caster Break Type | Strap Type Brake |
| Caster Core Material | Polypropylene |
| Caster Frame Material | Steel |
| Caster Load Rating Range | Light Duty |
| Caster Max. Temp. | 300 Degrees F |
| Caster Min. Temp. | -30 Degrees F |
| Caster Mounting Type | Plate |
| Caster Plate Hole Pattern | C |
| Caster Plate Size | 2-1/2 in x 3-5/8 in |
| Caster Plate Thickness | 0.118 in |
| Caster Product Group | Swivel Caster With Brake |
| Caster Raceway | Double Ball |
| Caster Stem Type | No Stem/Plate Included |
| Caster Sub-Type | Swivel |
| Caster Swivel Lock Type | No Lock Included |
| Caster Temp. Range | -4 Degrees To 140 Degrees F |
| Caster Temp. Range Available | Yes |
| Caster Wheel Bearings | Annular Ball |
| Caster Wheel Shape | Standard |
| Caster Wheel/Tread Material | Thermoplastic Rubber |
| Core Color | Gray |
| Country of Origin (subject to change) | China |
| Durometer | 65 Shore A |
| ESD Conductive | No |
| Extended Lead | No |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Includes | Strap Type Brake |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 1-3/4 in x 2-13/16 in |

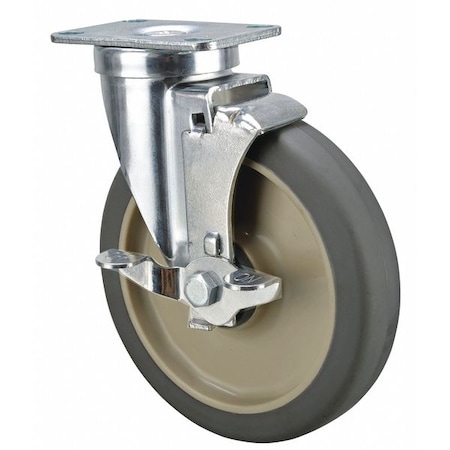

| Item | Swivel Plate Caster With Brake |
| Load Capacity | 220 lb |
| Load Rating | 300 lb |
| Load Rating Range | - |
| Mounting Bolt Dia. | 5/16 in |
| Mounting Height | 6 3/16 in |
| Mounting Plate Bolt Hole Pattern | C |
| Mounting Plate Size | 2 1/2 in x 3 5/8 in |
| Non-Marking | Yes |
| Number of Mounting Holes | 4 |
| Number of Wheels | 1 |
| Outside Bolt Hole Spacing | 1-3/4 in x 3-1/16 in |
| Overall Height | 6-3/16 in |
| Plate Caster Bolt Hole Pattern | C |
| Plate Size | 2-1/2" x 3-5/8" |
| Plate Thickness | 1/8" |
| Replacement Wheel | Mfr. No. P-RP-050x013/038B |
| Resistant To | High Chemical Resistance To Many Aggressive Substances |
| Series | P12 Series |
| Standards | RoHS, ICWM, NSF |
| Stem Dia. | No Stem |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 4 in |
| System of Measurement | Inch |
| Thread Guards | Yes |
| Tread | Standard |
| Tread Color | Gray |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Color | Gray |
| Wheel Core Material | Polypropylene |
| Wheel Dia. | 5 in |
| Wheel Width | 1-1/4 in |
| Wheel/Tread Color | Gray |
| Wheel/Tread Hardness | 85-95 Shore A |
| Wheel/Tread Hardness Rating | Firm |
| Wheel/Tread Material | Thermoplastic Rubber |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G7013544 | 32.99 | 32.99 | 1 | 9 | Zoro Select | 2.1 | 32.99 @ Qty: 1+ |
