| Accessories | Optional: P-DL21-14 (Directional Lock) |
| Application | Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Break Type | No Brake Included |
| Caster Core Material | Polypropylene |
| Caster Frame Material | Steel |
| Caster Load Rating Range | Medium Duty |
| Caster Max. Temp. | 180 Degrees F |
| Caster Min. Temp. | -40 Degrees F |
| Caster Mounting Type | Plate |
| Caster Plate Hole Pattern | B |
| Caster Plate Size | 4 in x 4-1/2 in |
| Caster Plate Thickness | 0.236 in |
| Caster Product Group | Swivel Caster |
| Caster Raceway | Double Ball |
| Caster Stem Type | No Stem/Plate Included |
| Caster Sub-Type | Swivel |
| Caster Swivel Lock Type | No Lock Included |
| Caster Temp. Range | -15 Degrees To 160 Degrees F |
| Caster Temp. Range Available | Yes |
| Caster Wheel Bearings | Roller |
| Caster Wheel Shape | Standard |
| Caster Wheel/Tread Material | Polyurethane |
| Core Color | Gray |
| Country of Origin (subject to change) | China |
| Durometer | 95 Shore A |
| ESD Conductive | No |
| Extended Lead | No |
| Features | Hardened Raceway |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Includes | Complete Caster |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 3 in x 3 in |

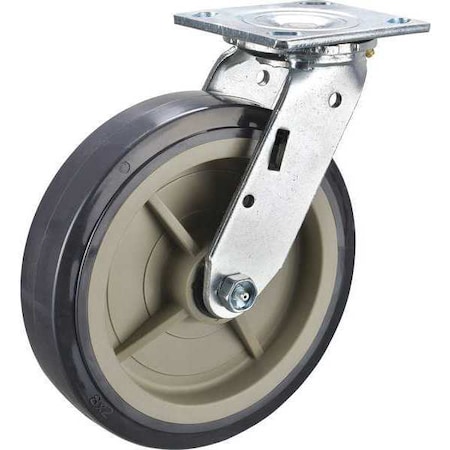

| Item | Swivel Plate Caster |
| Load Capacity | 1000 lb |
| Load Rating | 1000 lb |
| Load Rating Range | - |
| Mounting Bolt Dia. | 3/8 in |
| Mounting Height | 9 1/2 in |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4 in x 4 1/2 in |
| Non-Marking | Yes |
| Number of Mounting Holes | 4 |
| Number of Wheels | 1 |
| Outside Bolt Hole Spacing | 2-5/8 in x 3-5/8 in |
| Overall Height | 9-1/2 in |
| Plate Caster Bolt Hole Pattern | B |
| Plate Size | 4" x 4-1/2" |
| Plate Thickness | 1/4" |
| Replacement Wheel | Mfr. No. P-UP-080x020/050R |
| Resistant To | High Chemical Resistance To Many Aggressive Substances |
| Series | P21 Series |
| Standards | RoHS, ICWM, NSF |
| Stem Dia. | No Stem |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 6-5/8 in |
| System of Measurement | Inch |
| Thread Guards | No |
| Tread | Standard |
| Tread Color | Gray |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Color | Gray |
| Wheel Core Material | Polypropylene |
| Wheel Dia. | 8 in |
| Wheel Width | 2 in |
| Wheel/Tread Color | Gray |
| Wheel/Tread Hardness | 50-60 Shore D |
| Wheel/Tread Hardness Rating | Hard |
| Wheel/Tread Material | Polyurethane |
