| Application | All Purpose Industrial and Commercial Casters, Casters, Aerospace Tooling, Automotive Assembly Lines, Body Dolly Carts, Engine Dollies, Material Carts, Chassis Rack Carts |
| Caster Brake Included, Extended Lead, Thread Guards | No |
| Caster Core Material, Caster Wheel/Tread Material, Wheel Core Material, Wheel/Tread Material | Nylon |
| Caster Frame Material | Steel |
| Caster Load Rating Range | Heavy-Duty |
| Caster Max. Temp. | 200 Degrees F |
| Caster Min. Temp. | -30 Degrees F |
| Caster Plate Hole Pattern, Plate Caster Bolt Hole Pattern | A |
| Caster Plate Size, Plate Size | 5-1/4" x 7-1/4" |
| Caster Plate Thickness, Plate Thickness | 1/2" |
| Caster Product Group | Kingpinless Caster |
| Caster Raceway, Swivel Raceway Type | Single Ball |
| Caster Sub-Type | Kingpinless Swivel |
| Caster Swivel Lock Type, Swivel Lock Type | No Lock Included |
| Caster Temp. Range | -30 Degrees to 200 Degrees F |
| Caster Temp. Range Available, Non-Marking | Yes |
| Caster Wheel Bearings | Ball |
| Caster Wheel Shape, Tread Shape | Standard |
| Core Color, Wheel Color | Black |
| Country of Origin (subject to change) | United States |
| Durometer | 85 shore D |
| Features | Floor Protective |
| Frame Finish | Enamel |
| Frame Material | Forged Steel |
| Includes | Spanner Bushing |
| Inside Bolt Hole Spacing | 3 3/8 in x 5 1/4 in |

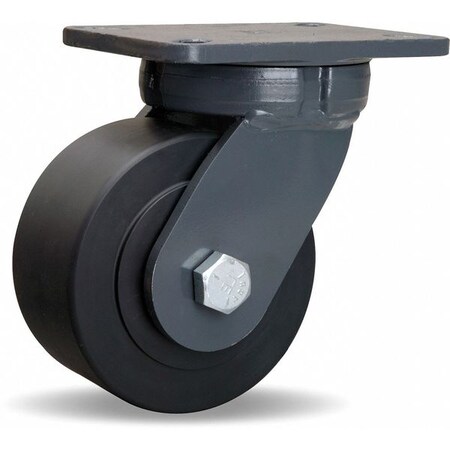

| Item | Plate Caster |
| Load Rating | 5400 lb |
| Load Rating Range | Heavy |
| Mounting Bolt Dia. | 1/2 in |
| Mounting Plate Size | 5 1/4 in x 7 1/4 in |
| Number of Wheels | 1 |
| Outside Bolt Hole Spacing | 4 1/8 in x 6 1/8 in |
| Overall Height | 8" |
| Replacement Wheel | 49H458 |
| Standards | ICWM |
| Wheel Dia. | 6 in |
| Wheel Width | 3 in |
