3M MNG14-250DMFK-A

mpnMNG14-250DMFK-A
brandname: 3-M
manufacturername: 3-M

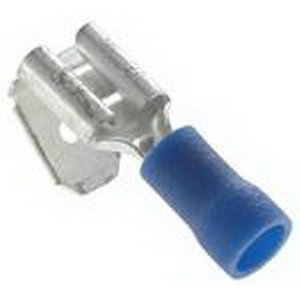

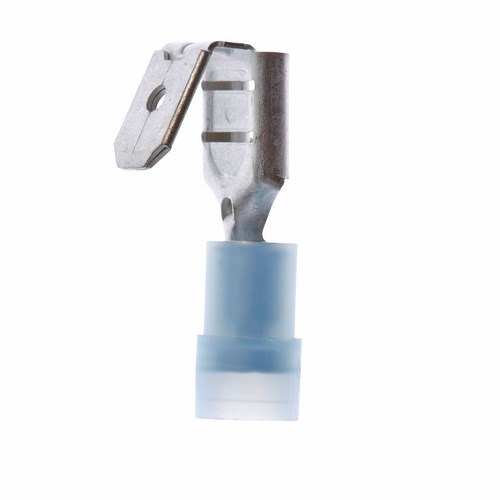

3M MNG14-250DMFK-A Piggyback Disconnect,Blue,PK1000

Brand: 3M
PartNumber: MNG14-250DMFK-A
Model: MNG14 250DMFK
Color: Blue
PackageQuantity: 1
Binding: Misc.
Manufacturer: 3M
Label: 3M

Attributes

Key	Value
3M Number	MNG14-250DMFK-A
Barrel Inside Dia.	0.09 in
Barrel Inside Diameter	0.09 in
Barrel Length Type	Insulation Grip
Barrel Style:	Insulation Grip
Base Product Number	MNG14
Brand	Scotchlok, 3M
Category	Electrical Terminals, C.
Color	Blue
Color Family	Blue
Connection Material	Tin-Plated Brass
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Brass
Country of Origin	TWN, TW - Taiwan
Disconnect Style	Piggyback
Fastener Orientation:	Male-Female
Features	Butted Seam
For Wire Size	16 AWG
Gender	Female and Male, Female
Insulation	Non-Mating End Insulate.
Insulation Color	Blue
Insulation Diameter	0.190" (4.83mm)
Insulation Material	Nylon
Insulation Type	Nylon
Item	Piggyback Disconnect

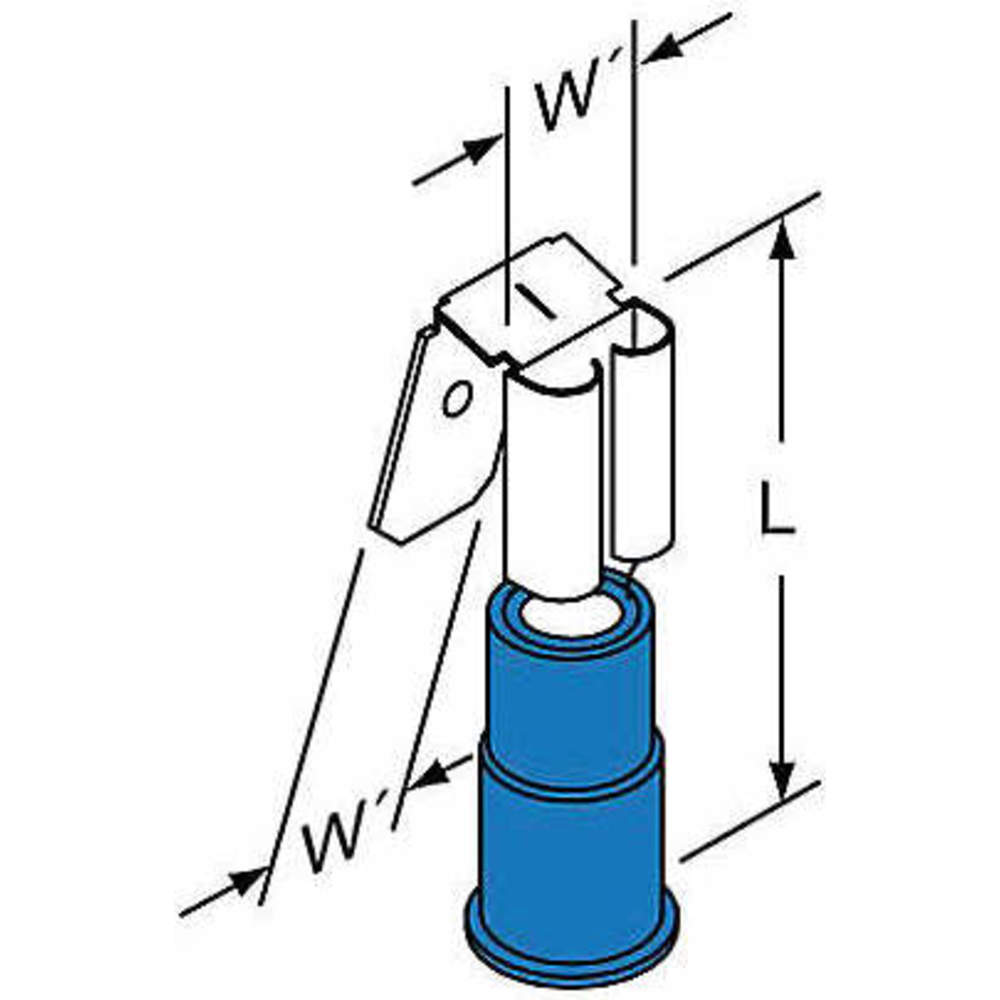

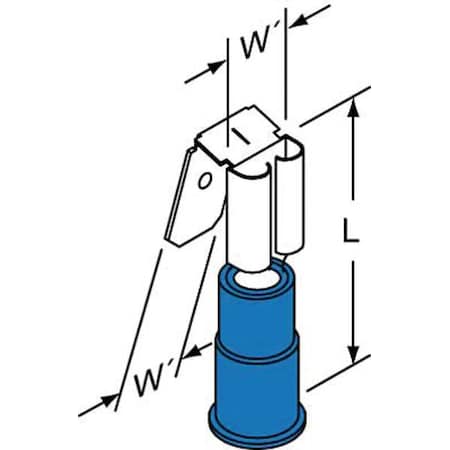

Length - Overall	0.910" (23.11mm)
Male Tab Width	0.25 in
Manufacturer	3M
Material	Brass, Nylon
Material:	Nylon
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Insulation Outs.	0.15 in
Maximum Operating Tempe.	221 ?F
Maximum Voltage	820 V
Maximum Wire Size	14 AWG
Mfr	3M
Minimum Conductor Leg D.	16 AWG
Minimum Wire Size	16 AWG
Mounting Type	Free Hanging (In-Line)
Number Of Terminals:	1000 per bulk box
Overall Length	0.91 in
Package	Bulk
Package Quantity	1000 per case
Pad Width	0.25 in
Pad Width:	0.250 Inch
Part Status	Active
Seam	Brazed
Series	Scotchlok?
Standards	CSA Certified, RoHS Com.
Sub Brand:	Scotchlok
Tab Length	-
Tab Size	0.032 in x 0.250 in
Tab Thickness	0.032" (0.81mm), 0.032 .
Tab Width	0.250" (6.35mm), 0.250 .
Terminal Size:	16 - 14 AWG
Terminal Type	Stacked
Termination	Crimp
Trade Name	Scotchlok
Type	Disconnect, Insulated
Type:	Disconnect
UNSPSC	39121432
UPC	051138980672
Wire Gauge	14-16 AWG
Wire Range	16 to 14 AWG
Wire Size Range	16 AWG - 14 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Digi-Key	3865654	0.75917	1000	1000		3M		0.75917 @ 1000
gordonelectricsupply.com	MNG14-250DMFK-A	0.89	1	1000	455	3-M		0.89 @ 1000
Newark	44P4120	0.996	1000	1000		3M		0.996 @ 1000
Platt.com	0318412	1.03	1	1000		3M		1.03 @ 1000
rshughes.com	051138-98067	690.0	1000	1000		3M		690.0 @ 1000
Zoro	G4330426	762.99	1	1000		3M	3.4	762.99 @ 1000
Dale-Electric	MNG14-250DMFK-A	785.4	1	1000		3M		785.4 @ 1000
sustainablesupply.com	C1180737	793.67	1	1000		3M	3.4	793.67 @ 1000
Graybar	25876946	929.6672	1	1000		3M		929.6672 @ 1000
Raptor Supplies	AC2FMD	1766.3627475	1	1000		3M		1766.3627475 @ 1000
