- mpn1033A 0101000
- brandname: Belden
- manufacturername: Belden

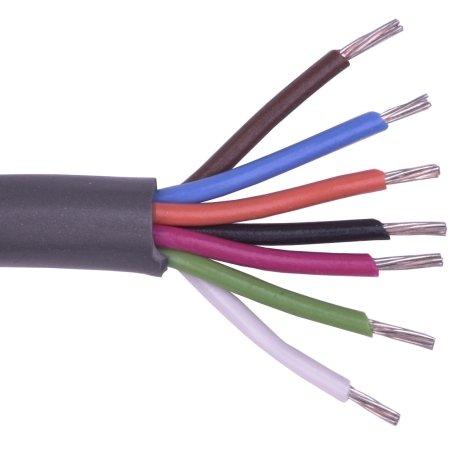

Belden 1033A 20 AWG 300V Power-Limited Multi-Conductor Tray Cable
- Brand: Belden
- PartNumber: 1033A 0101000
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Belden
- Label: Belden
Attributes
| Key | Value |
|---|
| Application | For industrial automati. |
| Cable Type | Multi-Conductor, Instru. |
| Category | Cables, Wires |
| Conductor Insulation | Poly-Vinyl Chloride (PV. |
| Conductor Material | Bare Copper (BC), Bare . |
| Conductor Size | 20 AWG |
| Conductor Strand | 7/28 |
| Configuration | 1 Pair |
| ECCN | EAR99 |
| Features | Drain Wire, Rip Cord |
| Insulation Material | PVC, Polyvinyl Chloride. |
| Insulation Thickness | 0.068 in. |
| Jacket (Insulation) Dia. | 0.220" (5.59mm) |
| Jacket (Insulation) Mat. | Poly-Vinyl Chloride (PV. |
| Jacket (Insulation) Thi. | 0.0370" (0.940mm) |
| Jacket Color | Black |
| Jacket Material | PVC, Polyvinyl Chloride. |
| Jacket Thickness | 0.037 in. |
| Length | 1000 ft, 100.0' (30.5m). |
| Mfr | Belden Inc. |
| No. of Conductors | 2 |
| Nominal Impedance | 50 Ohms |
| Number of Conductors | 2 (1 Pair Twisted), 2 |
| Number of Pairs | 1 |
| Operating Temperature | -30?C ~ 105?C, -30 to +. |
| Outer Diameter | 0.213 in. |
| Package | Spool |
| Packaging | Coil |
| Product Header | UL Instrumentation Cable |
| Product Status | Active |
| Ratings | UL Style 2464 |
| Series | 1033A Series, - |
| Shield | Aluminum Foil-Polyester. |
| Shield Coverage | 100% |
| Shield Material | Aluminum/Polyester Tape. |
| Shield Type | Foil |
| Shielded | Overall Beldfoil Shield |
| Shielding | Foil |
| Standards | UL NEC Type PLTC ; ITC . |
| Stranding | 7x28 |
| Temperature, Rating | -30 to 105 C |
| UNSPSC | 39131704 |
| Usage | - |
| Voltage Rating | 300 V |
| Wire Gauge | 20 AWG |
| Wire Size | 20 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| kirbyrisk.com | 520263 | 0.81131 | 1000 | 1000 | | Belden | | 0.81131 @ 1000 |
 | alldataresource.com | B1033A-1000 | 1.36 | 1 | 1000 | | Belden | | 1.36 @ 1000 |
| Digi-Key | 12749582 | 36.504 | 1 | 1000 | | Belden Inc. | | 36.504 @ 1000 |
| AmazonTP | B075XF9RG2 | 506.96 | 1 | 1000 | 1 | Belden | | 506.96 @ 1000 |
| us.rs-online.com | 70005181 | 932.3 | 1 | 1000 | | Belden | | 932.3 @ 1000 |
| Newark | 04F6148 | 972.72 | 1 | 1000 | | BELDEN | | 972.72 @ 1000 |
| Graybar | 92141503 | 1210.0704 | 1 | 1000 | | Belden | | 1210.0704 @ 1000 |
