BLACK BOX NETWORK SERVICES EVNSL0507MS-0006

mpnEVNSL0507MS-0006
brandname: BLACK BOX
manufacturername: BLACK BOX

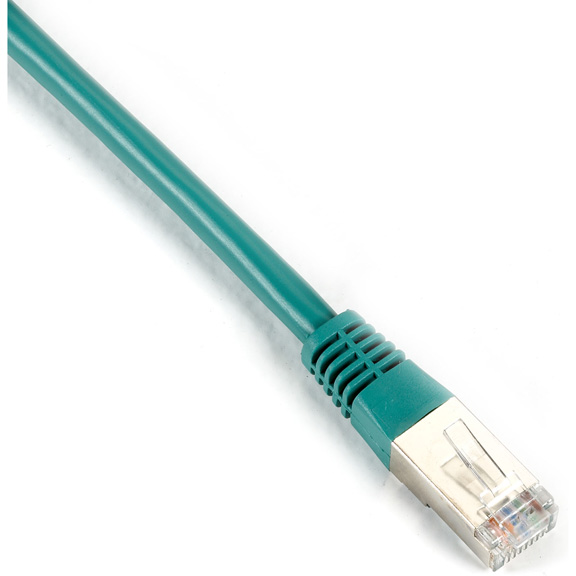

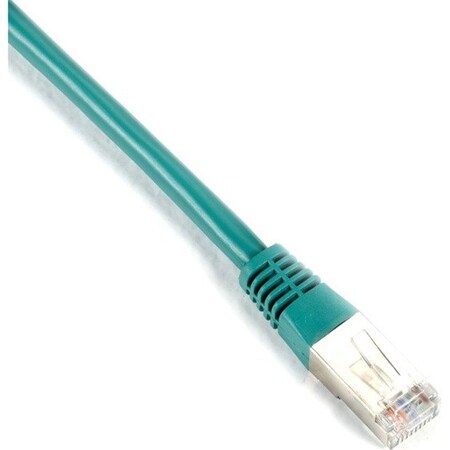

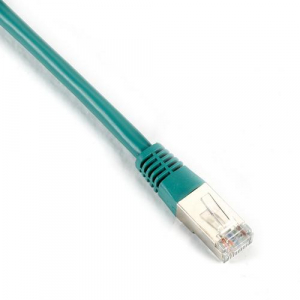

Black Box CAT5E 100MHZ SLD FUTP PVC MLD SNG GN 6FT

Black Box CAT5E 100MHZ SLD FUTP PVC MLD SNG GN 6FT

zoom

Brand: BLACK BOX NETWORK SERVICES
PartNumber: EVNSL0507MS-0006
PackageQuantity: 1
Manufacturer: Black Box
Label: Black Box

Attributes

Key	Value
ACR	13.3 dB/100 m at 100 MHz
ACRF	23.8 db/100 m at 100 MHz
American Wire Gauge	24 AWG
Attenuation	22.0 dB/100 m at 100 MHz
Brand Name	Black Box
Cable Characteristic	Patch Cable
Cable Length	6 ft
Cable Outside Diameter .	0.2" (6.1 mm)
Cable Type	Category 5e
Capacitance Unbalance (.	330 pF/100 m maximum
Color	Green
Conductor	24 AWG, solid, bare cop.
Connector on First End	1 x RJ-45 Male Network
Connector on Second End	1 x RJ-45 Male Network
Country of Origin	Taiwan
Country of Origin (subj.	Unknown
Delay Skew (Maximum)	45 ns/100 m (328 ft.)
Device Supported	Network Device
Environmental Certifica.	RoHS
Environmentally Friendly	Yes
Features	Snagless, Molded, Near .
Impedance	1000 ? 15%
Insulation	HDPE: 0.009" (0.225 mm)
Jacket	PVC; CM; RoHS compliant
Jacket Type	CM
Limited Warranty	Lifetime
Manufacturer	Black Box, Black Box Co.
Manufacturer Part Number	EVNSL0507MS-0006
Manufacturer Website Ad.	http://www.blackbox.com
Material	Polyvinyl Chloride (PVC.
NEXT	35.3 dB/100 m at 100 MHz
Product Condition	New
Product Name	Cat.5e (F/UTP) Patch Ne.
Product Type	Network Cable
Propagation Delay	538 ns/100 m at 100 MHz
PS-ACR	10.3 dB/100 m at 100 MHz
PS-ACRF	20.8 dB/100 m at 100 MHz
PS-NEXT	32.3 dB/100 m at 100 MHz
Return Loss	20.1 dB/100 m at 100 MHz
Shielding	Yes
Standards	UL? 444; ISO/IEC 11801;.
Temperature/Voltage Rat.	167? F (75? C) at 300 V
