4VA79

B00VJL3LI2

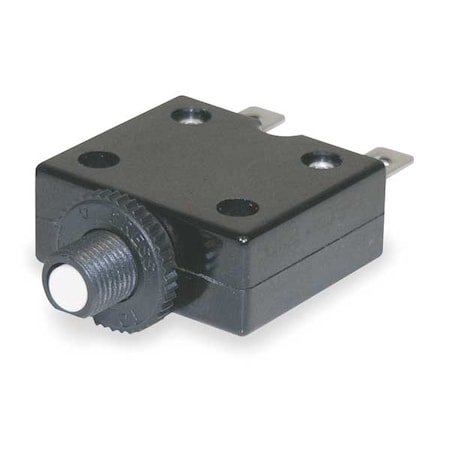

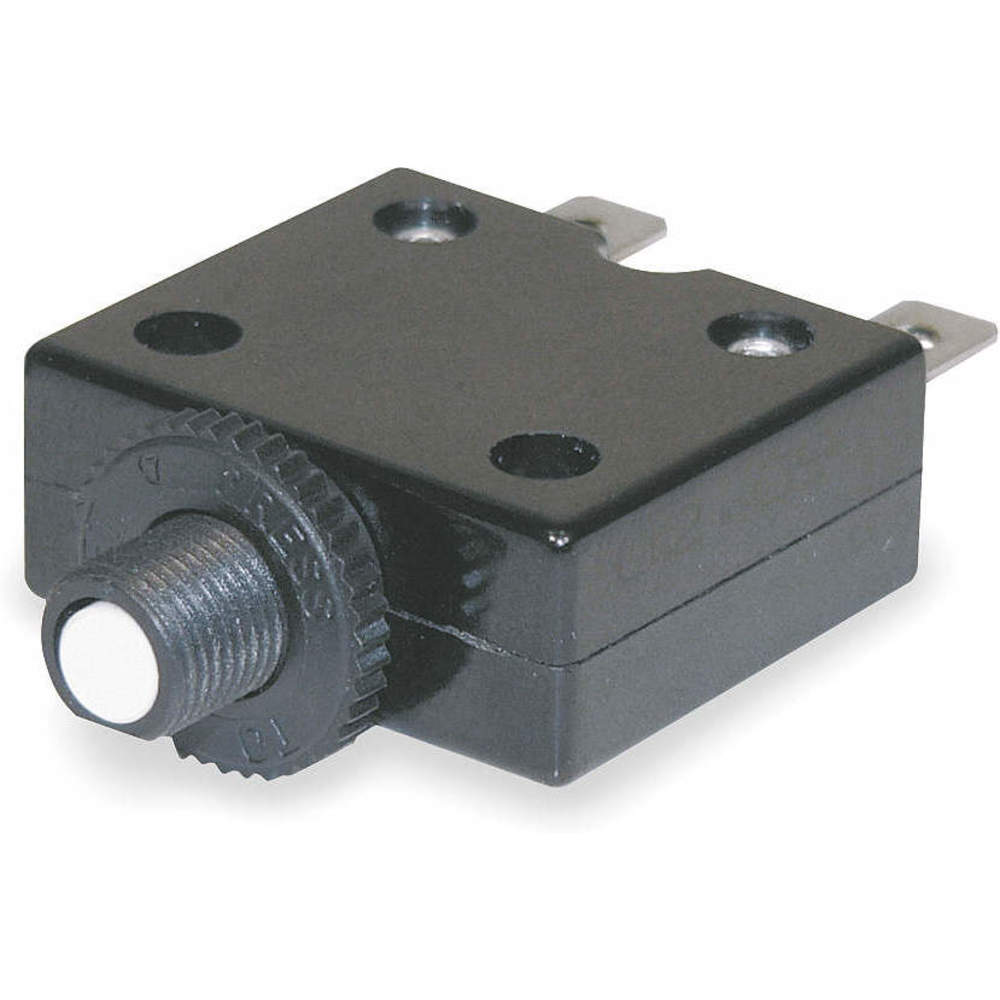

Circuit Breaker, Thermal Circuit Breaker Type, Push Button Switch Type, Number of Poles: 1

Circuit Breaker, Thermal Circuit Breaker Type, Push Button Switch Type, Number of Poles: 1zoom

Attributes

Key Value
AC Voltage Rating125/250V AC
Actuator ColourWhite
Actuator LegendPress to Reset
AIR @ 120VACNot Rated
AIR @ 125VDCNot Rated
AIR @ 240VAC0.2KA
AIR @ 65VDCNot Rated
Amps30 A
Circuit Breaker ActuatorPush Button
Circuit Breaker TypeThermal
Curve TypeMedium
DC Voltage Rating32V DC
Depth2.31 in
ItemPanel Mount Circuit Bre.
Length1.38 in
Length (Straight Wirewa.1.38 in
Max. AIR RatingNot Rated
Max. Operating Temp.140 Degrees F
Max. Panel Thickness0.118 in
Max. Wire Size12 AWG
Min. Operating Temp.14 Degrees F
Mounting Hole Thread Si.3/8"-27
Mounting Type3/8" Collar, 3/8 in Col.
Number of Poles1
Panel Cutout Size0.343 in x 0.382 in
Phase1
StandardsCE, CSA, cUL, TUV, UL, .
Switch TypePush Button
Terminal Connection1/4 in Tab
Width0.57 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caWWG4VA792.78709504135CARLING TECHNOLOGIES0.062.78709504 @ 1
thumbzoomsustainablesupply.comC12016363.2131Carling Technologies0.063.2 @ 1
thumbzoomZoroG13645263.6914156Carling Technologies1.33.69 @ 1
thumbzoomRaptor SuppliesAD9UYJ4.0112865124CARLING TECHNOLOGIES4.0112865 @ 1
Newark60M29715.9720In StockCARLING TECHNOLOGIES5.97 @ 10
