A. O. Smith B126

B007VEZR5G

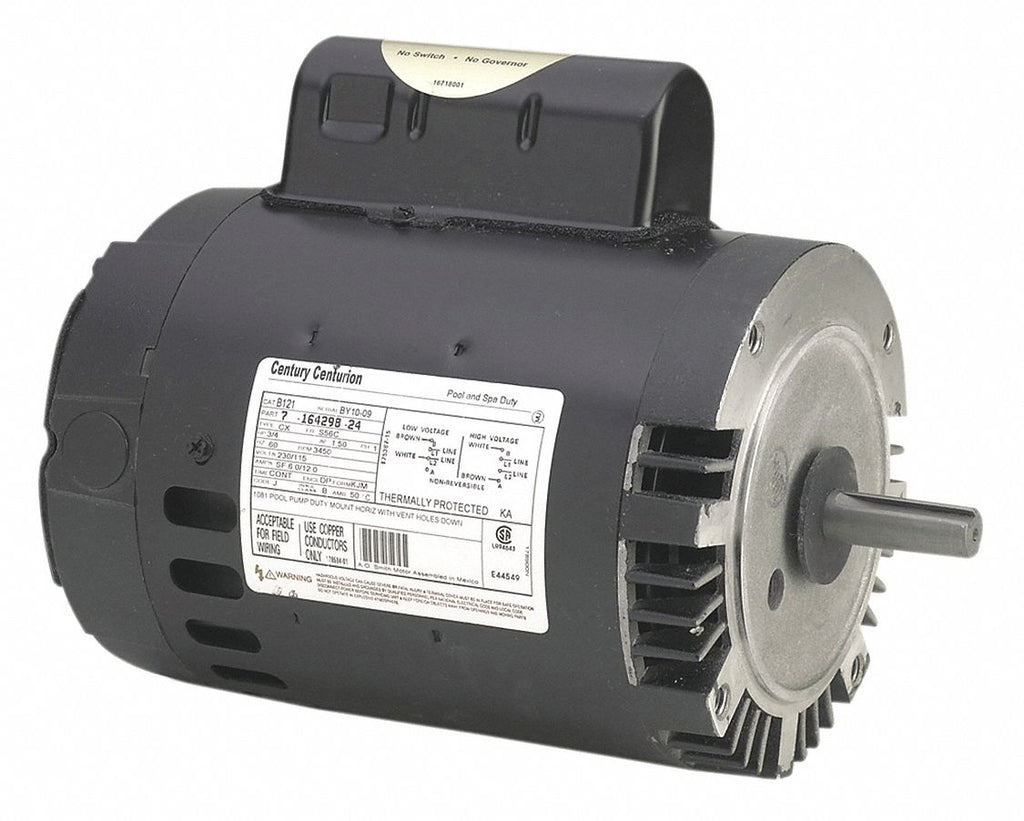

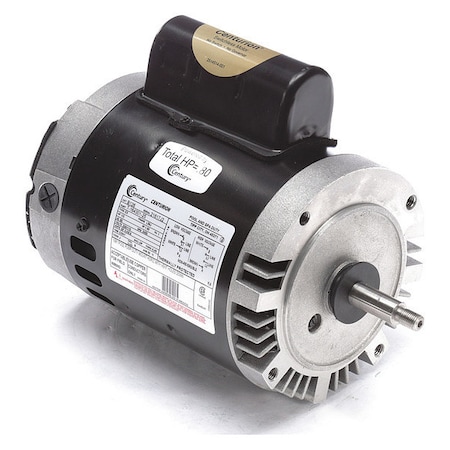

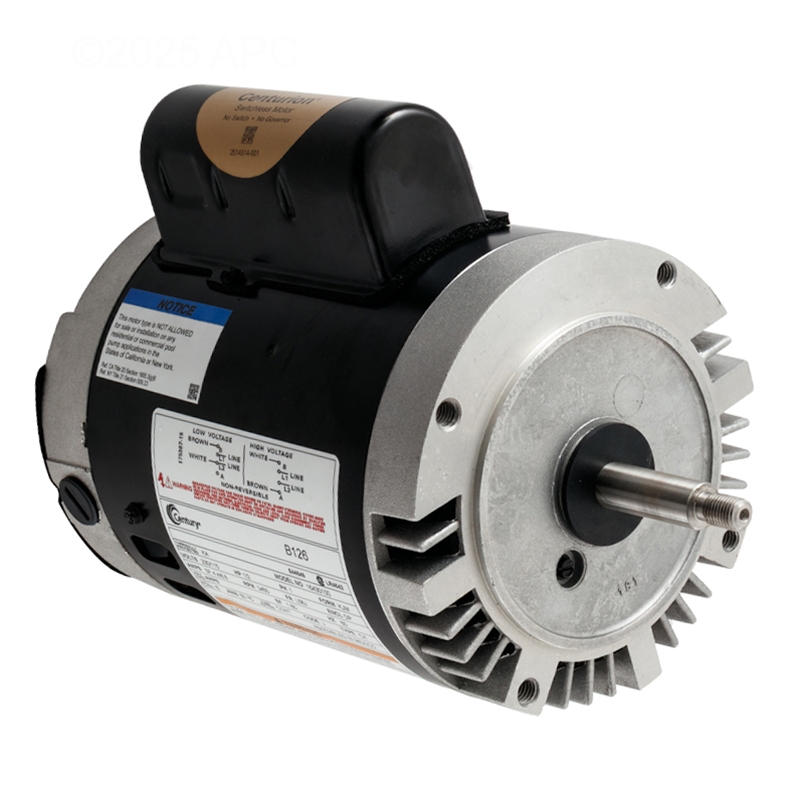

A. O. Smith B126 Motor 56J Thrd Full .5 Hp

A. O. Smith B126 Motor 56J Thrd Full .5 Hpzoom

Attributes

Key Value
Amps4.4/8.8
B126 is listed in Centu.Jacuzzi 90118563, Centu.
BearingsBall
Body Dia.6.5 in, 6.5"
CapacitorIncluded
Duty CycleContinuous
Enclosure TypeODP (Open Dripproof)
FinishBlack
Frame56J
Full Load Amps4.4/8.8, 8.8/4.4
Height11 in
HP1/2
Hz60
Ins. ClassB
Insulation ClassB
ItemPool Pump Motor, Pool a.
Length Less Shaft9 3/8 in, 9 3/8"
Max. Ambient Temp.50 Degrees C
Max. SF Amps8.8
Maximum Ambient Tempera.50? C
Motor ApplicationPump
Motor BearingsBall
Motor DesignPermanent Split Capacit.
Motor Diameter6-1/2"
Motor Efficiency GroupStandard Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting TypeFace
Motor Service Factor1.6, 1.60
Motor Shaft DesignKeyed
Motor Shaft RotationCCWSE
Motor Sub ApplicationPool and Spa Pump
Motor Thermal ProtectionAuto
MountingC-Face
Nameplate RPM3,450
No. of Speeds1
Number of Speeds1
Overall Length11 15/16 in, 11 15/16"
Phase1, Single
Product TypePSC (Permanent Split Ca.
RotationCCW Pump End
RPM3450
RPM Range3,001 - 3,600, 3,001-3,.
Service Factor (SF)1.60
ShaftThreaded 7/16"-20 UNF-2.
Shaft Dia.5/8 in, 5/8"
Shaft Dia. (In.)5/8
Shaft DiameterThreaded
Shaft Length2-9/16", 2 1/2 in
Shaft Material303 Stainless Steel
Ship Weight22 lbs.
StandardsCSA (LR43341/LR94643), .
Stator TypePermanent Split Capacit.
Thermal ProtectionAutomatic
Usable @ 200VNo
Usable @ 208VNo
Voltage115/230V AC, 115/230
Voltage Compatibility115, 120, 230, 240, 115.
Volts115/230
Weight22 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0009X62N2157.231In Stock2Century Electric Motors157.23 @ 1
thumbzoomZoroG3160525235.991In StockCentury21.44235.99 @ 1
thumbzoommidwestapplianceparts.comB126-AO-P241.21In StockAO Smith241.2 @ 1
thumbzoomgetpoolparts.comB126241.271In StockCentury Motors241.27 @ 1
thumbzoomemotorpro.comB126243.071In StockCentury22.0243.07 @ 1
thumbzoomsustainablesupply.comC1564491248.461In StockCentury21.75248.46 @ 1
thumbzoomVoomi SupplyB126266.061In StockCentury Motors266.06 @ 1
thumbzoomNational Supply NetworkB516702276.81In StockAO SMITH276.8 @ 1
grainger.caAOSB126287.978046621In StockCENTURY21.75287.97804662 @ 1
thumbzoomRaptor SuppliesAE6ABB389.7987211In StockCENTURY389.798721 @ 1
thumbzoomturtle.comAO2 B126469.911In StockA. O. Smith469.91 @ 1
