AO Smith/Century Electric B131

B00F7VMB3G

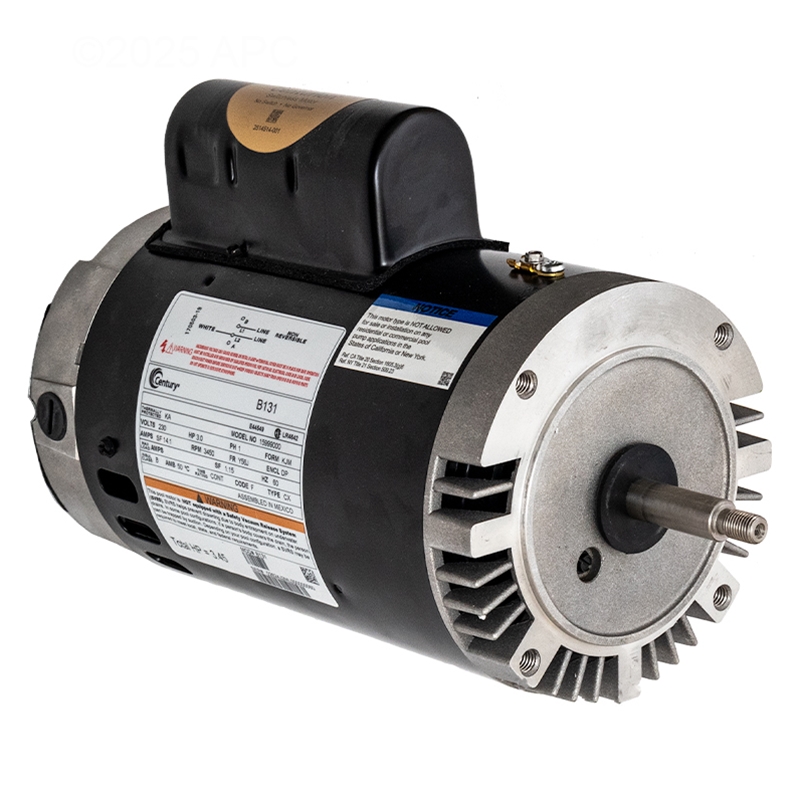

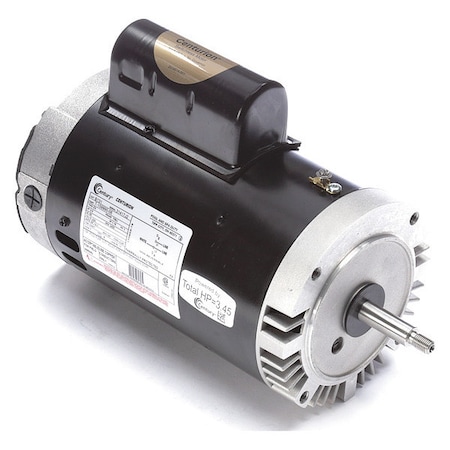

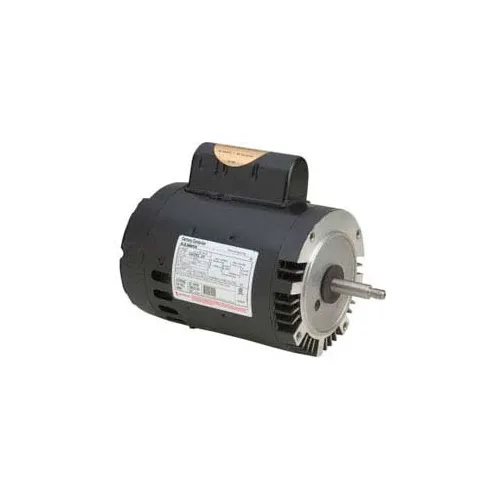

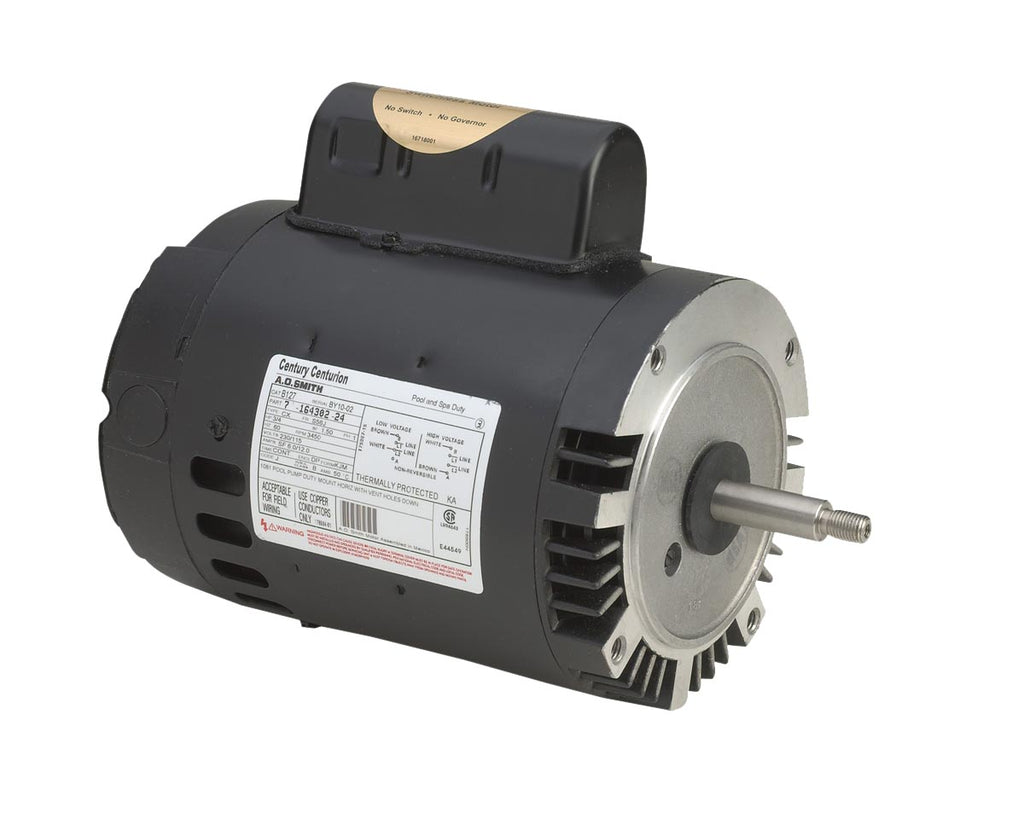

AO Smith/Century Electric PSC, Full Rate, Single-Speed, Switchless, 3HP, 3450RPM, 230V, 14.1 AMPS, 1.15SERVICE Factor, C-Face Flange

AO Smith/Century Electric PSC, Full Rate, Single-Speed, Switchless, 3HP, 3450RPM, 230V, 14.1 AMPS, 1.15SERVICE Factor, C-Face Flangezoom

Attributes

Key Value
<span style="color#ff0000;">We cannot shi.
Amps14.1
B131 is listed in Centu.GE C1440, Century 16511.
Banned StatesThis product is banned .
BearingsBall
Body Dia.6.6", 6.6 in
Bolt Circle Dia.5 13/16 in, 5 13/16"
BrandCentury
CapacitorIncluded
Conduit Box PositionF3
Delivery Time2-5 Business Days
Duty CycleContinuous
Enclosure TypeODP (Open Dripproof)
FinishBlack
Frame56J
Full Load Amps14.1
Height11 in
HP3
Hz60
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemPool Pump Motor, Pool a.
Length Less Shaft11 15/16 in, 11 15/16"
ManufacturerAO Smith
Manufacturer Part #B131
Max. Ambient Temp.50 Degrees C
Max. SF Amps14.1
Maximum Ambient Tempera.50? C
Motor ApplicationPump
Motor BearingsBall
Motor DesignPermanent Split Capacit.
Motor Diameter6-1/2"
Motor Efficiency GroupStandard Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft DesignThreaded
Motor Shaft RotationCCWSE
Motor Sub ApplicationPool and Spa Pump
Motor Thermal ProtectionAuto
MountingC-Face
MpnB131
Nameplate RPM3,450
No. of Speeds1
Number of Speeds1
Overall Length14 1/8", 14 1/8 in
Phase1, Single
Product TypePSC (Permanent Split Ca.
RotationCCW Pump End
RPM3450
RPM Range3,001 - 3,600, 3,001-3,.
Service Factor (SF)1.15
Shaft Dia.5/8 in, 5/8"
Shaft Dia. (In.)5/8
Shaft DiameterThreaded
Shaft Length2 9/16 in, 2-5/8"
Shaft Material303 Stainless Steel
Ship Weight40 lbs.
SKUZO-G4482432, MGT-60-5102
StandardsUL Recognized (E14663),.
Stator TypePermanent Split Capacit.
SubCategoryMotors/Ac Motors
Technical Specs<p>
Thermal ProtectionAutomatic
Usable @ 200VNo
Usable @ 208VNo
Voltage230V AC, 230
Voltage Compatibility230, 240, 115/230, 120/.
Volts230
Weight40 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
hottubworks.com222467409.991In StockCentury A.O. Smith409.99 @ 1
thumbzoomktool.netB131512.831In StockCentury512.83 @ 1
thumbzoomZoroG4482432569.991In StockCentury37.5569.99 @ 1
thumbzoomgetpoolparts.comB131615.681In StockCentury Motors615.68 @ 1
thumbzoomemotorpro.comB131626.71In StockCentury40.0626.7 @ 1
yourpoolhq.comMGT-60-5102627.991In StockAO Smith627.99 @ 1
hvacdiscountstore.comCEN--B131639.631In StockCENTURY MOTORS639.63 @ 1
thumbzoomsustainablesupply.comC2091009661.061In StockCentury15.0661.06 @ 1
thumbzoommidwestapplianceparts.comB131-AO-P663.731In StockAO Smith663.73 @ 1
thumbzoomNational Supply NetworkB516784671.711In StockAO SMITH671.71 @ 1
thumbzoomsimsupply.comZO-G4482432674.61In StockCentury674.6 @ 1
thumbzoomGlobal IndustrialWBB516784679.01In StockA.O. Smith679.0 @ 1
lesliespool.com222467719.991In StockCentury A.O. Smith719.99 @ 1
thumbzoomVoomi SupplyB131725.891In StockAO Smith725.89 @ 1
grainger.caAOSB131819.36239341In StockCENTURY37.5819.3623934 @ 1
thumbzoomRaptor SuppliesAA7XXY1115.3164231In StockCENTURY1115.316423 @ 1
