- mpn2LY99
- brandname: Dayton
- manufacturername: Dayton

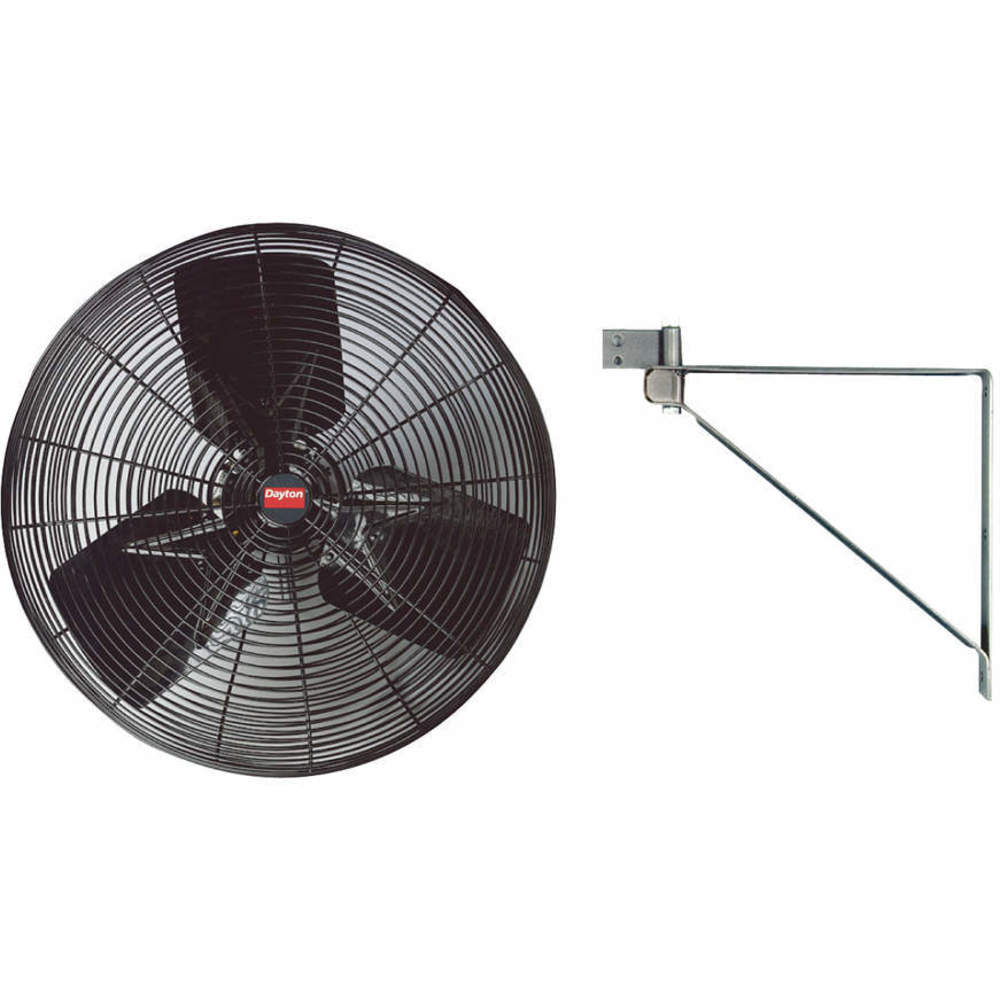

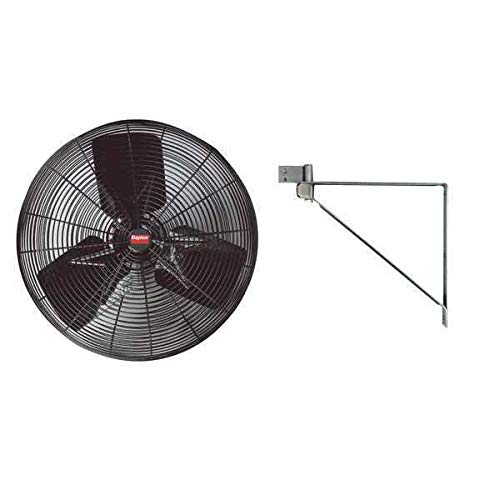

20" Air Circulator,2600/3700 cfm,Non-Oscillating
- Brand: Dayton
- PartNumber: 2LY99
- Model: 2LY99
Attributes
| Key | Value |
|---|
| Air Flow | 2600/3700 CFM, 2,600/3,. |
| Air Velocity @ 10 Ft. | 820/580 fpm |
| Air Velocity @ 20 Ft. | 400/350 fpm |
| Air Velocity @ 40 Ft. | 200/190 fpm |
| Air Velocity @ 60 Ft. | 150/130 fpm |
| Amps | 2.0/1.5 A |
| Application | Spot Cooling and People. |
| Assembly Required | Yes |
| Bearing Type | Ball |
| Blade Dia. | 20" |
| Blade Diameter | 20", 20 in |
| Blade Material | Aluminum |
| Brand | Dayton |
| CFM/Watt | 15.1/15.0 |
| Colour | Black |
| Cord Length | 9 ft. |
| Current Stock | 197 |
| Depth | 23 in |
| Drive Type | Direct Drive |
| Environmental Applicati. | Industrial |
| Fan Cord Length | 9 ft |
| Fan Housing Material | Steel |
| Fan Mounting Location | Ceiling, Wall |
| Guard Material | Steel |
| Height | 29 1/4 in, 29-1/4" |
| Height Adjustment | Fixed Height |
| Hz | 60 Hz |
| Includes | Wall/Ceiling Bracket an. |
| International Shipping | No |
| Item | Light-Duty Industrial F. |
| Material | Steel |
| Max. Ambient Temp. | 104 Degrees F |
| Max. Depth | 23" |
| Motor Enclosure | Open Air-Over |
| Motor HP | 1/8 hp, 1/8 |
| Motor Insulation | Class B |
| Motor Type | Permanent Split Capacit. |
| Mpn | 2LY99 |
| NEMA Plug Configuration | 5-15P |
| Number of Blades | 3 |
| Number of Conductors | 3 |
| Number of Speeds | 2 |
| Oscillating | No |
| Oscillation | Non-Oscillating |
| Outside Dia. | 23" |
| Phase | 1 |
| Prop 65 | WARNING: Cancer and Rep. |
| RPM | 1,200/1,000 |
| Shaft Dia. | 12mm, 12 mm |
| SKU | ZO-G0376722 |
| Sound Level | 72 dBA |
| Standards | cULus Listed |
| Thermal Protection | Automatic Reset |
| UPC | 190735222751 |
| Voltage | 115VAC, 120V AC |
| Watts | 240/175 |
| Wheeled Base | Stationary |
| Width | 23", 23 in |
| Wire Guard Finish | Polyester Powder Coated. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0376722 | 181.99 | 1 | 187 | | Dayton | 32.2 | 181.99 @ 1 |
 | simsupply.com | ZO-G0376722 | 191.8 | 1 | 197 | | Dayton | | 191.8 @ 1 |
| grainger.ca | GGE2LY99 | 202.97890596 | 1 | In Stock | | DAYTON | 32.2 | 202.97890596 @ 1 |
 | sustainablesupply.com | C1133214 | 216.17 | 1 | In Stock | | Dayton | 32.2 | 216.17 @ 1 |
 | Raptor Supplies | AC2QBR | 265.2700635 | 1 | In Stock | | DAYTON | | 265.2700635 @ 1 |
