4THV5

B004KFKK8S

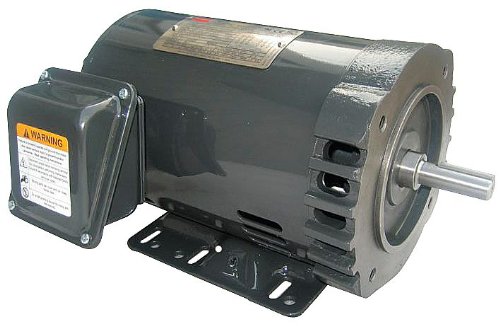

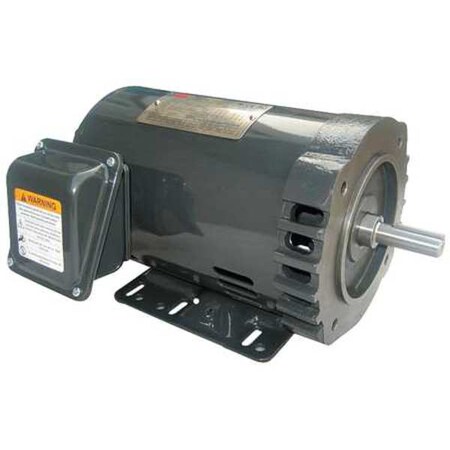

Dayton 4THV5 Mtr, 3-Ph, 1.5hp, 1740, 208-230/460, Eff 86.5

Dayton 4THV5 Mtr, 3-Ph, 1.5hp, 1740, 208-230/460, Eff 86.5zoom

Attributes

Key Value
CC NumberCC060A
Country of Origin (subj.China
DutyContinuous
Footnotes2,10
Frame143/5TC
Frame MaterialSteel
Full Load Amps4.1/2.1
Green Certification or .NEMA Premium Rated
Green Environmental Att.Product Contributes To .
HP1-1/2
Hz60
Ins. ClassF
Inverter RatedYes
ItemGeneral Purpose Motor
Length Less Shaft10"
Manufacturers Warranty .1 yr.
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Nameplate RPM1740
No. of Speeds1
Nominal Efficiency86.5
Overall Length12-1/4"
Phase3
RPM Group1701-1800
RPM Range1701-1800
Shaft Dia.7/8"
Shaft Length2-1/4"
StandardsUL, CSA, CE
Voltage230/460
Voltage Compatibility208, 230, 240, 460, 208.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0543697305.371In Stock26Dayton305.37 @ 1
