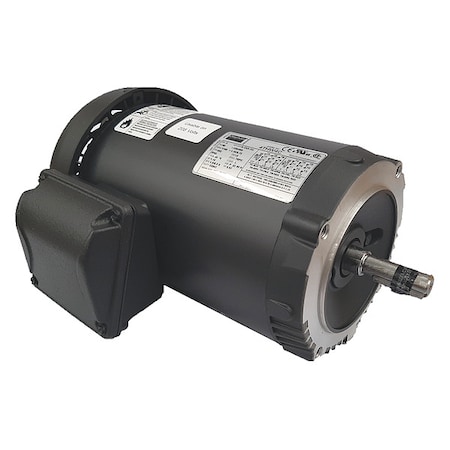

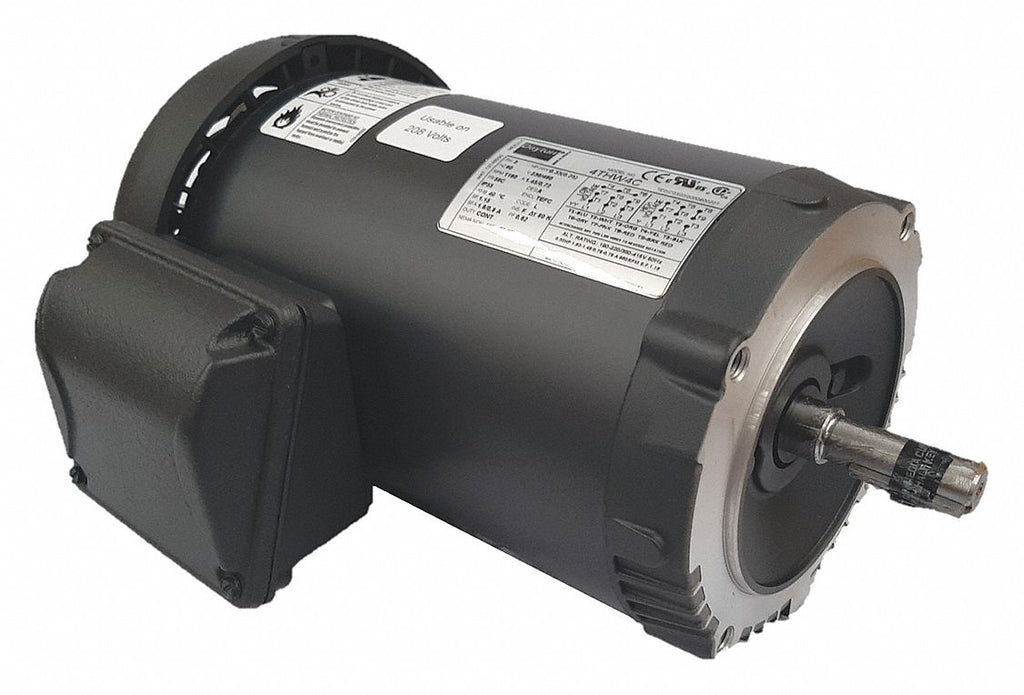

Dayton 4THW4

B08WHBRVPJ

GP Motor,1/3 HP,1,140 RPM,230/460V,56C

GP Motor,1/3 HP,1,140 RPM,230/460V,56Czoom

Attributes

Key Value
Amps1.5-1.5/0.70
BearingsBall
BrandDayton
Current Stock22
Duty CycleContinuous
Efficiency68.0%
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Frame56C
HP1/3
Hz60
Insulation ClassF
International ShippingNo
ItemGeneral Purpose Motor
Lead TimeExpected to ship in 1-2.
Length Less Shaft10 1/4 in
Manufacturers Warranty .1 yr
Maximum Ambient Tempera.40? C
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Diameter6-1/2"
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionAll Angle
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Shell Length10-1/4"
Motor Thermal ProtectionNone
MountingC-Face
Mpn4THW4
Nameplate RPM1,140
Nominal Efficiency70 %
Number of Speeds1
Overall Length12 1/8 in, 12-1/8"
Phase3
Product Type3 Phase
RotationReversible
RPM1140
RPM Range1,101-1,200
Service Factor (SF)1.15
Shaft Dia.5/8 in
Shaft Diameter5/8" Keyed
Shaft Length1-7/8", 1 7/8 in
Ship Weight27 lbs.
SKUZO-G2025222
StandardsCE, CSA, UL
SubCategoryMotors/Ac Motors
Thermal ProtectionNone
UPC190735334300
Voltage230/460V AC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2025222249.99138Dayton26.29249.99 @ 1
thumbzoomsimsupply.comZO-G2025222306.59122Dayton306.59 @ 1
emotorpro.com4THW4320.441In StockDayton27.0320.44 @ 1
thumbzoomsustainablesupply.comC1561312344.521In StockDayton26.29344.52 @ 1
thumbzoomRaptor SuppliesAD9LLT411.21832051In StockDAYTON411.2183205 @ 1
