Destaco 030-1-S-475

B09KS986KN

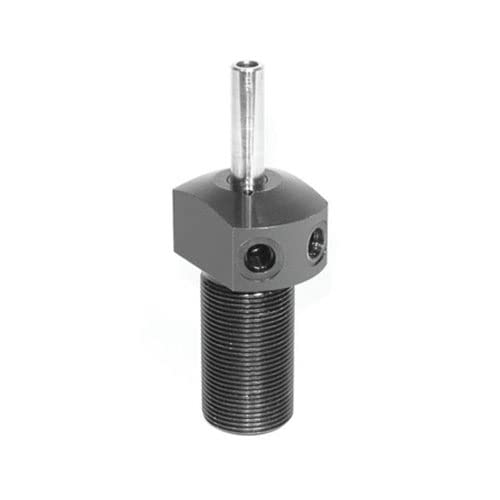

DESTACO 030-1-S-475 Series 030 Hydraulic Single-Acting Swing/Pull Clamp, Left Hand Swing Direction, 475lb Force, 2 SAE Port, 0.65" Stoke, 4.96" Height

DESTACO 030-1-S-475 Series 030 Hydraulic Single-Acting Swing/Pull Clamp, Left Hand Swing Direction, 475lb Force, 2 SAE Port, 0.65" Stoke, 4.96" Heightzoom

Attributes

Key Value
Body StyleThreaded Body;Upper Fla.
Body Thread Length1.930, 49
Body Thread Size1-1/8-16
BrandDestaco
Collapsed Height4.43, 112.5
Country of Origin (subj.Taiwan, Province of Chi.
Force (lb)475
Holding Capacity2112.9, 475
ItemHyd. Swing Clamp, Singl.
Maximum Operating Press.5000, 344.7
MountingThreaded Body
Operating MethodSingle-Acting
Operating Pressure (PSI)5000
Outside Diameter1.125, 28.6
Port SizeSAE #2
Port Thread Size#2
Product FamilyHydraulic Clamping
Product FunctionClamping
Product Grouphydraulic work holding
Product Series Descript.Manual Power Source
Product TypeSwing/Pull Clamps
Stroke (in)0.650
Stroke Length16.5, 0.65
Swing DirectionLH (Standard)
Vertical clamp stroke (.0.21
Vertical clamp stroke (.5.3

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
reidsupply.comTBSC-SA-475623.851In StockDestaco623.85 @ 1
thumbzoomGuardian81137176655.481In StockDe-Sta-Co655.48 @ 1
thumbzoomZoroG3127461663.341In Stock30De-Sta-Co1.0663.34 @ 1
thumbzoomfreertool.comDE-STA-CO-030-1-S-475708.21In StockDESTACO708.2 @ 1
