Destaco 207-LR

B09KS8VG15

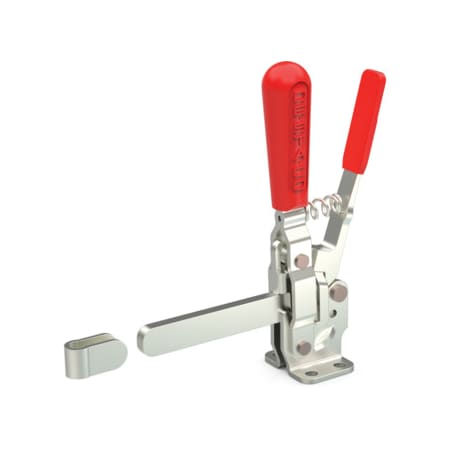

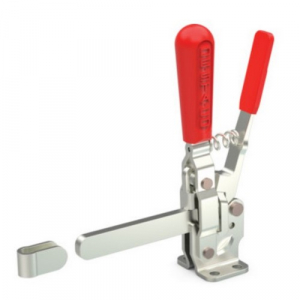

DESTACO 207-LR Series 207 Vertical Hold Down Clamp, Flanged Base, Long Solid Bar, Toggle Lock Plus

DESTACO 207-LR Series 207 Vertical Hold Down Clamp, Flanged Base, Long Solid Bar, Toggle Lock Pluszoom

Attributes

Key Value
Accommodates Workpiece .No
ApplicationAssembly, Checking Fixt.
Application - AssemblyExcellent/High
Application - Checking .Excellent/High
Application - ClosuresExcellent/High
Application - Food Proc.Fair/Medium
Application - MachiningPoor/Low
Application - WeldingPoor/Low
Application - Wood-Work.Excellent/High
Arm Length3.48 in
AvailableYes
Bar Thickness (Decimal .0.2400
Base Mounting StyleFlange
Body MaterialSteel
Capacity500 lb
Clamp Arm Length (in)3.480
Clamp Arm StyleLong Solid Bar
Clamp Bar Opening (+10?.99
Duty Cycle2
Fastener Thread Size1/4 in
FeaturesLargest Selection of Ar.
HandleVertical
Handle DesignLocking Vertical Handle
Handle Opening (+10?)57
Height Under Arm1.25 in
Height Under Clamp Arm .1.260
Holding Capacity - Maxi.500 lbf
Includes Locking HandleYes
ItemStraight Line Clamp
Locking Handle IncludedLocking
Material - MachiningSteel
Max Arm LengthGreater than 3"
Max Height Under Arm1 - 1.5"
Maximum Holding Capacit.500
Mounting Holes Center t.1.25 in
Mounting Holes Center t.0.75 in
Overall Depth6.93 in
Overall Length4.86 in
Overall Width1.73 in
Product FamilyManual Clamping
Product FunctionClamping
Product GroupHold Down Clamps
Product Series Descript.Vertical Clamp
Product TypeStandard
Service EnvironmentNormal
Spindle Thread SizeM8
Standard MaterialSteel
Tip Diameter0.34 in
Toggle Lock PlusYes
Weight (lb)0.99

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB003D3MO6434.311In StockDe-Sta-Co34.31 @ 1
thumbzoomfreertool.comDE-STA-CO-207-LR50.711In StockDESTACO0.9950.71 @ 1
thumbzoomkinequip.com207-LR51.22134Destaco51.22 @ 1
thumbzoomZoroG322051951.291In StockDe-Sta-Co1.051.29 @ 1
thumbzoomRaptor SuppliesAJ8BEP68.4265141In StockDESTACO68.426514 @ 1
thumbzoomprimebuy.com207-LR69.411In StockDestaco69.41 @ 1
thumbzoombscsource.com207LR69.791In StockDe-Sta-Co69.79 @ 1
thumbzoomNational Supply Network810380674.261In StockDe-Sta-Co74.26 @ 1
