- mpn3907
- brandname: GENTEQ
- manufacturername: GENTEQ

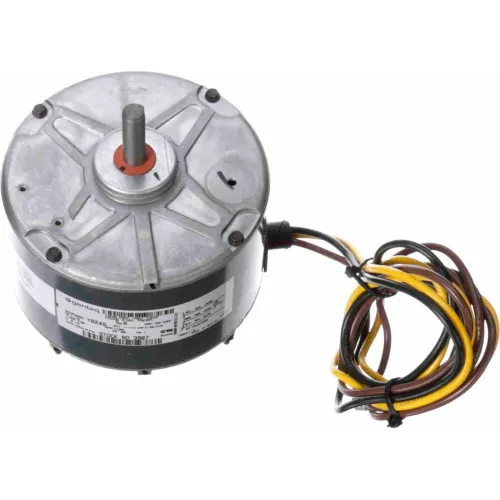

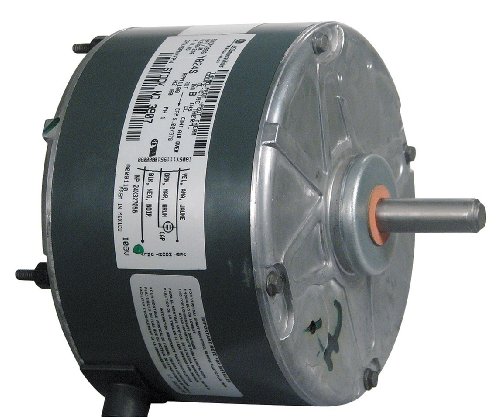

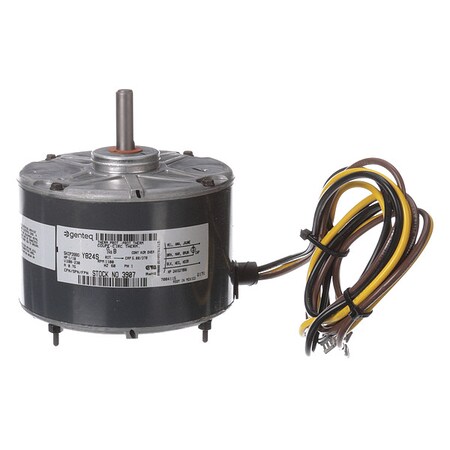

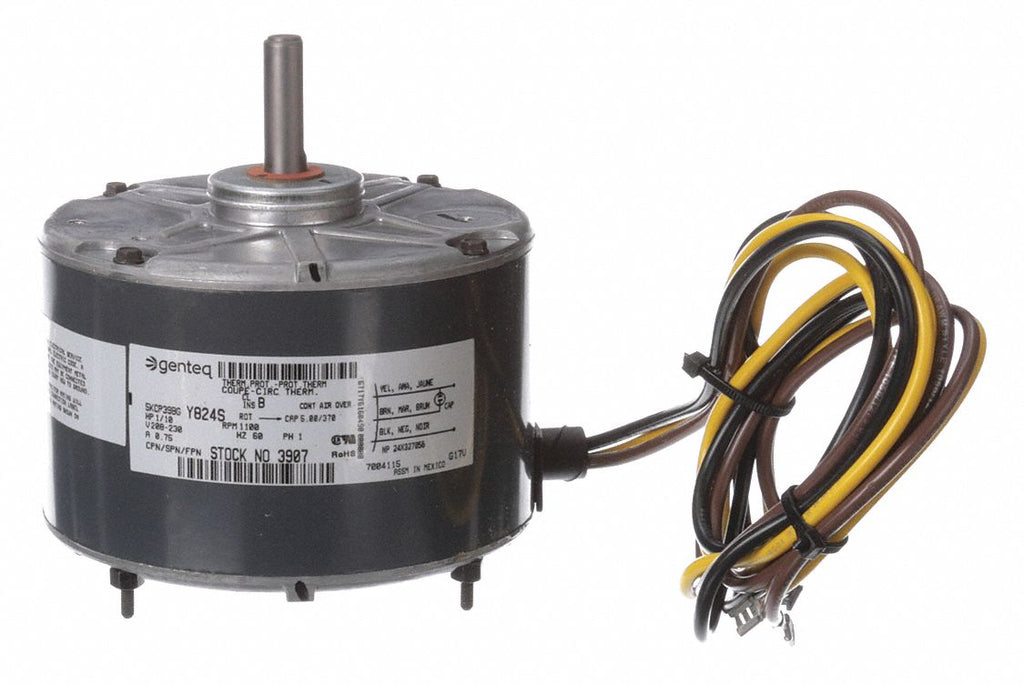

Mtr, PSC, 1/10 HP, 1100rpm, 208-230V, 48, TENV
- Brand: Genteq
- PartNumber: 3907
- Model: 3907
- PackageQuantity: 1
- Manufacturer: GENTEQ
- Label: GENTEQ
Attributes
| Key | Value |
|---|
| Amps | 0.75 |
| Application | Replaces Carrier Mfr. N. |
| Bearings | Sleeve |
| Body Dia. | 5-3/5", 5.6 in |
| Brand | Genteq |
| C-Dimension (In.) | 5.71 |
| Capacitor | 5MFD/370VAC |
| Capacitor Required | 2MDV4 |
| Catalog Number | 3907 |
| CE | N |
| Country of Origin (subj. | Mexico |
| Cross Reference | Carrier 5KCP39BGY824S/5. |
| CSA | Y |
| DE Bearing Type | Sleeve |
| DEM Reference | 3907 |
| Duty | Continuous Air Over |
| Duty Cycle | Continuous |
| Electrical Type | Permanent Split Capacit. |
| Enclosure Type | TEAO (Totally Enclosed . |
| Frame | 39, 48 |
| Frame Material | Rolled Steel |
| Frame Type | 48 |
| Frequency | 60 |
| Full Load Amps | 0.75 |
| HP | 1/10, 0.10 |
| Hz | 60 |
| Ins. Class | B |
| Insulation Class | B |
| International Shipping | No |
| IP Code | - |
| Item | Condenser Fan Motor |
| KVA Code | - |
| Length Less Shaft | 4 3/16 in, 4-3/16" |
| Max Ambient | 40?C |
| Max. Ambient Temp. | 40 Degrees C, 40 Degre. |
| Motor Application | OEM Replacement |
| Motor Bearings | Sleeve |
| Motor Design | Permanent Split Capacit. |
| Motor Enclosure Design | Totally Enclosed Nonven. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Vertical Shaft Down, Al. |
| Motor Mounting Type | Stud |
| Motor Orientation | Vertical Shaft Down |
| Motor Service Factor | 1, 1.00 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CCWSE, CW |
| Motor Thermal Protection | Auto |
| Mounting | Band/Ring |
| Mounting Stud Pattern | 3-11/16 in x 3-11/16 in. |
| Mounting Type | Extended Studs |
| Mpn | 3907 |
| Nameplate RPM | 1,100 |
| No. of Speeds | 1 |
| Number of Phases | 1 |
| Number of Shafts | 1 |
| Number of speeds | 1 |
| Number of Speeds | 1 |
| ODE Bearing Type | Sleeve |
| OEM Replacement Brand | Carrier/BDP |
| Overall Length | 5 11/16 in, 5.71", 5-11. |
| Phase | 1, Single |
| Product Category | HVAC/R Motors > HVAC/R. |
| Product Type | PSC (Permanent Split Ca. |
| Replacement For | Carrier 5KCP39BGY824S, . |
| Rotation | CCWSE, CW Shaft End, Cl. |
| RPM | 1100 |
| RPM (Nameplate) | 1100 |
| RPM (Number of Poles) | 6 (901 RPM to 1200 RPM) |
| RPM Range | 1,001-1,100 |
| Service Factor | 1 |
| Shaft Dia. | 1/2", 1/2 in |
| Shaft Diameter (In.) | 0.500 |
| Shaft Extension (In.) | 1.50 |
| Shaft Length | 1-1/2", 1 1/2 in |
| Shaft Type | Flat |
| Ship Weight | 8 lbs. |
| SKU | ZO-G2066276 |
| Standards | CSA Certified, UL Recog. |
| Stud Size | 8", 8 in |
| SubCategory | Motors/Ac Motors |
| Type of Overload Protec. | Thermally Protected |
| UL | Recognized |
| UPC | 815585022015 |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230, 208-230V AC |
| Voltage Compatibility | 115/208-230V AC, 208-23. |
| Volts | 208, 230, 208-230 |
| Weight | 8 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2066276 | 143.29 | 1 | In Stock | | Genteq | 8.0 | 143.29 @ 1 |
 | emotorpro.com | 3907 | 155.28 | 1 | In Stock | | Genteq | 8.0 | 155.28 @ 1 |
 | simsupply.com | ZO-G2066276 | 156.75 | 1 | In Stock | | Genteq | | 156.75 @ 1 |
| AmazonTP | B0085AKVH4 | 158.31 | 1 | In Stock | 2 | GENTEQ | | 158.31 @ 1 |
 | Global Industrial | WBB2777005 | 165.95 | 1 | In Stock | | Genteq | | 165.95 @ 1 |
| grainger.ca | AOS3907 | 166.71038014 | 1 | In Stock | | GENTEQ | 8.0 | 166.71038014 @ 1 |
 | sustainablesupply.com | C1566082 | 172.68 | 1 | In Stock | | Genteq | 8.0 | 172.68 @ 1 |
 | Dreisilker | GE-RBC-3907 | 196.5 | 1 | In Stock | | Genteq | | 196.5 @ 1 |
