Hubbell 1224PWB

B00N300MRA

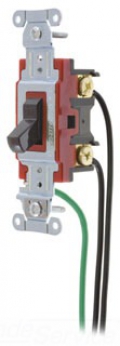

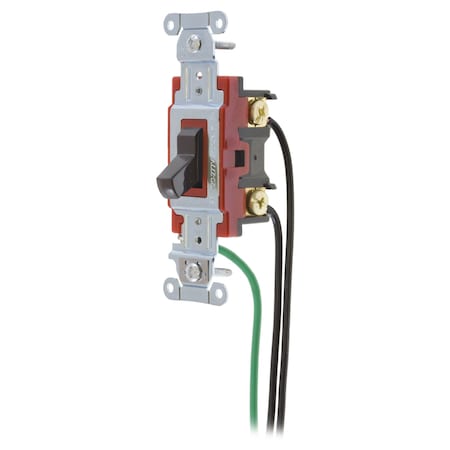

Hubbell 1224PWB Switch, Catalog #1224B with 8" Leads, Brown

Hubbell 1224PWB Switch, Catalog #1224B with 8" Leads, Brownzoom

Attributes

Key Value
ActionDPDT
Amperage20 A
Application8 #12 AWG THHN
ApprovalsCSA, UL
Carton Quantity10
ColorBrown
CommentsHeavy Duty
ConnectivityPre-Wired
Country of Origin (subj.China
Current20 A
Current / amperage rati.20 A
Current Rating20 A
Current rating20 A
Dielectric StrengthWithstands 1500V AC min.
Dielectric strengthWithstands 1500V AC min.
Dimensions4.18 in x 1.3 in x 1.83.
Face ColorRed
Family SeriesHubbell Switches
GradeIndustrial
Gross Weight0.2 lbs
GroundingAutomatic
Height1.83 in
HP @ 120 VAC1 hp
HP @ 240 VAC2 hp
IlluminatedNo
Industry Standard(s)UL Listed
Item Number1224PWB
Length4.18 in
LockingNo
ManufacturerHubbell
Manufacturer Part Number1224PWB
Max Temperature Rise30C maximum at rated cu.
Net Weight0 lbs
Number Of PolesDouble pole
Number of polesDouble pole
Operating temperatureMaximum continuous 75C .
OperatorToggle
Operator ColorBrown
SeriesHeavy Duty
StyleFour way
Switch ConfigurationFour way
Temp. Rise30?C maximum at rated c.
Temperature-40-167 ?F
TypeToggle
Voltage120-277 VAC, 120 VAC, 2.
Voltage Rating120-277 VAC
Voltage rating descript.120-277 VAC
Width (in)1.3
Wire Range#14 to #10 AWG Solid an.
Wire size#14 AWG to #10 AWG
Wire Size#14 AWG to #10 AWG
WiringBack and Side Wired, Pr.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG50048986925.57101046Hubbell Wiring Device-Kellems25.57 @ 10
thumbzoomMRO Supply101370725.86210Hubbell Wiring25.86 @ 10
thumbzoomGalco1224PWB-HBBL26.621010Hubbell0.226.62 @ 10
Newark94Y463740.11010HUBBELL WIRING DEVICES40.1 @ 10
kirbyrisk.com252396241.465010Hubbell41.46 @ 50
thumbzoomgordonelectricsupply.com1224PWB249.4110HUBBELL249.4 @ 10
