Hubbell 1224PWI

B00N300P1I

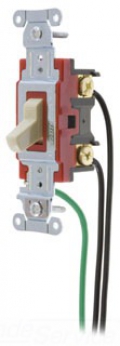

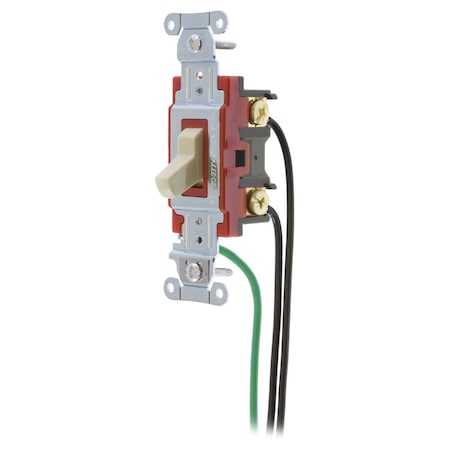

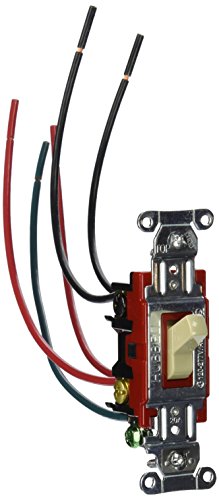

Hubbell 1224PWI Switch, Catalog #1224I with 8" Leads, Ivory (Pack of 10)

Hubbell 1224PWI Switch, Catalog #1224I with 8" Leads, Ivory (Pack of 10)zoom

Attributes

Key Value
ActionDPDT
Amperage20 A
Application8 #12 AWG THHN
ApprovalsCSA, UL
Carton Quantity50
ColorIvory
CommentsHeavy Duty
ConnectivityPre-Wired
Country of Origin (subj.China
Current20 A
Current / amperage rati.20 A
Current Rating20 A
Current rating20 A
Dielectric StrengthWithstands 1500V AC min.
Dielectric strengthWithstands 1500V AC min.
Dimensions4.18 in x 1.3 in x 1.83.
Face ColorRed
Family SeriesHubbell Switches
GradeIndustrial
Gross Weight0.2 lbs
GroundingAutomatic
Height1.83 in
HP @ 120 VAC1 hp
HP @ 240 VAC2 hp
IlluminatedNo
Industry Standard(s)UL Listed
Item Number1224PWI
Length4.18 in
LockingNo
ManufacturerHubbell
Manufacturer Part Number1224PWI
Max Temperature Rise30C maximum at rated cu.
Net Weight0 lbs
Number Of PolesDouble pole
Number of polesDouble pole
Operating temperatureMaximum continuous 75C .
OperatorToggle
Operator ColorIvory
SeriesHeavy Duty
StyleFour way
Switch ConfigurationFour way
Temp. Rise30?C maximum at rated c.
Temperature-40-167 ?F
TypeToggle
Voltage120-277 VAC, 120 VAC, 2.
Voltage Rating120-277 VAC
Voltage rating descript.120-277 VAC
Width (in)1.3
Wire Range#14 to #10 AWG Solid an.
Wire size#14 AWG to #10 AWG
Wire Size#14 AWG to #10 AWG
WiringBack and Side Wired, Pr.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply101371225.86210Hubbell Wiring25.86 @ 10
thumbzoomZoroG20048983125.89101046Hubbell Wiring Device-Kellems25.89 @ 10
thumbzoomGalco1224PWI-HBBL26.621010Hubbell0.226.62 @ 10
Newark94Y464040.11010HUBBELL WIRING DEVICES40.1 @ 10
thumbzoomgordonelectricsupply.com1224PWI249.4110HUBBELL249.4 @ 10
