Hubbell HBL1433

B00N7GJFUK

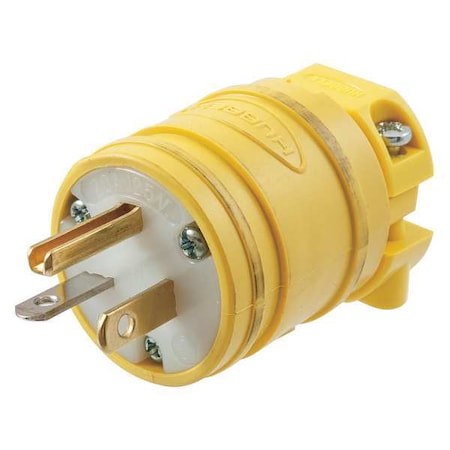

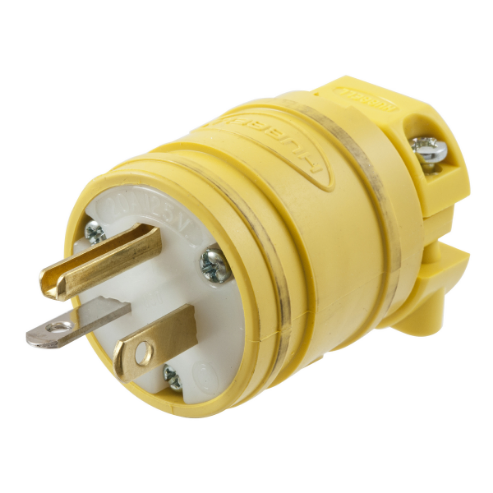

Hubbell HBL1433 ElastoGrip Plug, 20 amp, 125V, 5-20P

Hubbell HBL1433 ElastoGrip Plug, 20 amp, 125V, 5-20Pzoom

Attributes

Key Value
Amperage15A
Amperage Rating20A
Amps20
Amps - Plugs and Recept.20
AntimicrobialNo
ApplicationIndustrial/Commercial G.
AWG Range#18 AWG to #12 AWG
Body Length2.19 in
ColorYellow
Color - Plugs and Recep.Yellow
Color FamilyYellow
Connection OrientationStraight
Cord dia300 in-0.655 in
Cord Size0.300 in to 0.655 in
Corrosion ResistantYes
Country of OriginUS - United States
Country of Origin (subj.United States
Current Rating20 A
Display TypeStandard Sized Product
ECCNEAR99
For Maximum Cable Diame.0.655 in
For Minimum Cable Diame.0.3 in
GradeGeneral
Grade - Plugs and Recep.General
GroundingGrounded
Horsepower Rating1/2 hp
Housing ColorYellow
Housing ColourYellow
Housing MaterialPolycarbonate
HP0.5, 1.0
Insulation MaterialElastomer
IP Rating55, IP20
ItemDust Tight Straight Bla.
Item - Plugs and Recept.Dust Tight Straight Bla.
Key Resistance Properti.General Use
MarketCommercial, Industrial
MaterialPVC, Polycarbonate
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size12 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size18 AWG
NEMA Configuration5-20P
NEMA Plug Configuration5-20P
NEMA Plug Configuration.5-20P
NEMA Type5-20P
No. of Poles2
No. of Wires3
Number of Blades3
Number of Poles2
Number of Wires3
Phase1, Single
Phase - Plugs and Recep.1
PolarizedYes
Rated Voltage125V AC
Resistance PropertiesDust Ignition Proof, Mo.
Special FeaturesCorrosion resistant
StandardCSA Certified to C22.2 .
StandardsUL Listed to UL498 File.
StyleStandard
TerminationScrew
TypePlugs
UL 94 Flammability Rati.HB
UNSPSC39121402
UPC Code783585013336
Voltage125V, 125VAC
Voltage - Plugs and Rec.125V AC
Voltage Rating125V AC, 125 V
Wire Connection TypeScrew Terminals
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG079254716.191In StockHubbell0.216.19 @ 1
Onlinecomponents.comHBL143317.01In StockHubbell17.0 @ 1
thumbzoomKelly HayesHBL143319.016Hubbell Wiring Device-Kellems19.0 @ 1
Graybar8812608922.76961In StockHubbell Wiring Device - Kellems22.7696 @ 1
thumbzoomgordonelectricsupply.comHBL143322.911In StockHUBBELL22.91 @ 1
standardelectricsupply.com223897923.071In StockHubbell23.07 @ 1
thumbzoomMRO Supply101973823.072In StockHubbell Wiring23.07 @ 2
AmazonTPB00N7GJFUK24.551In Stock2Hubbell24.55 @ 1
thumbzoomsustainablesupply.comC119267327.091In StockHubbell0.227.09 @ 1
thumbzoomRadwellHBL143332.0183HUBBELL KELLEMS32.0 @ 1
us.rs-online.com7011635834.1915Hubbell Wiring Device-Kellems34.19 @ 1
grainger.caHBLHBL143334.940300841In StockHUBBELL WIRING DEVICE-KELLEMS0.234.94030084 @ 1
thumbzoomNewark35B45435.211In StockHUBBELL WIRING DEVICES35.21 @ 1
kirbyrisk.com185651041.621In StockHubbell41.62 @ 1
thumbzoomRaptor SuppliesAC8PUZ41.68832851In StockHUBBELL WIRING DEVICE-KELLEMS41.6883285 @ 1
