Leeson 103082.00

B00EPKR9EG

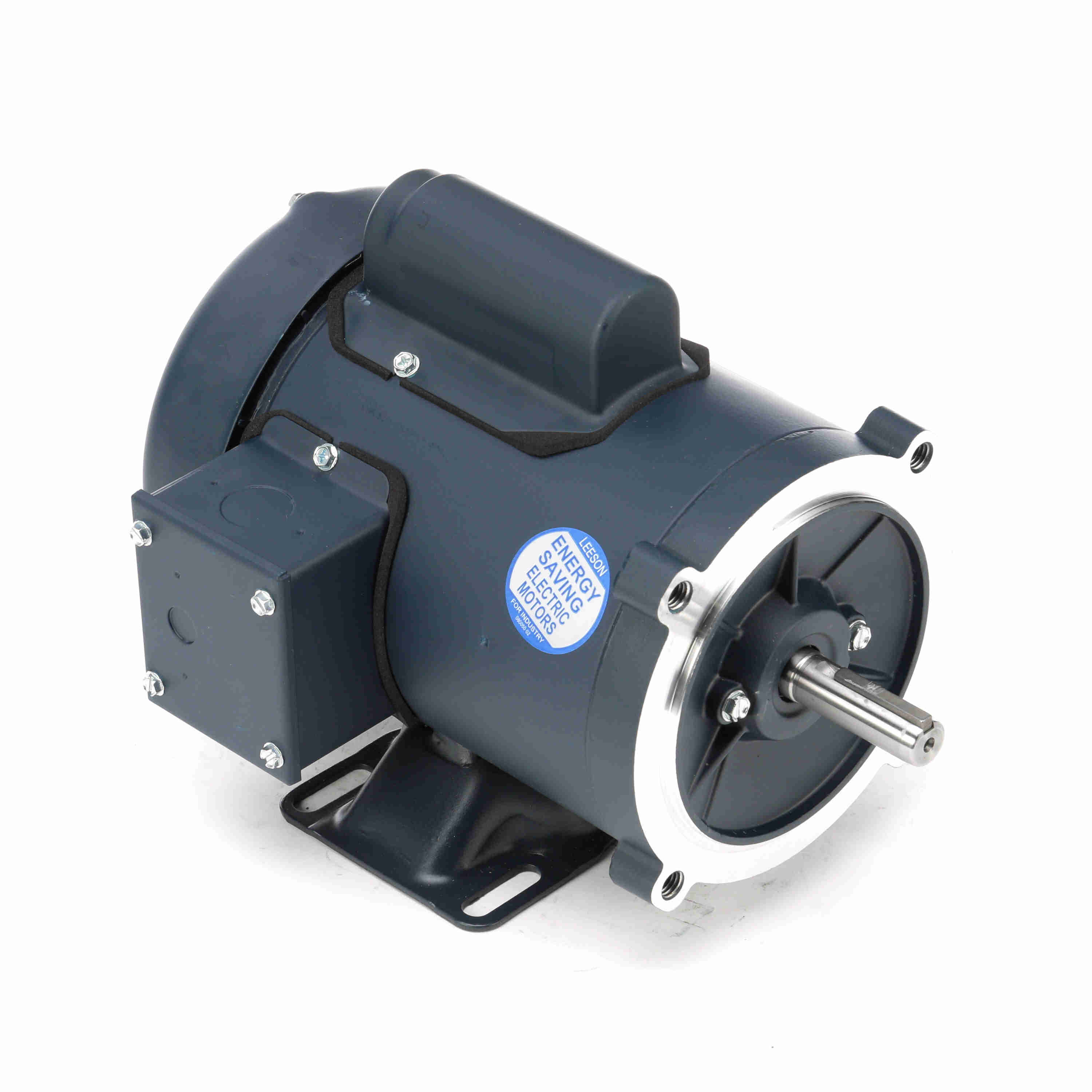

Leeson 103082.00 General Purpose C Face Motor, 1 Phase, S56C Frame, Rigid Mounting, 1/3HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 103082.00 General Purpose C Face Motor, 1 Phase, S56C Frame, Rigid Mounting, 1/3HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.M4C17FK7A
Amperage Rating6.2/2.9 to 3.1 A
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
CategoryElectric Motor
Class/GroupM4C17FK7
CompositionSteel
Current Rating6.2 ; 2.9 to 3.1 A
Description:1/3HP..1725RPM.48.TEFC..
Dimensions10.44 in L x 7.84 in H
Duty CycleContinuous
Efficiency61 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Family SeriesLeeson Motors, General .
FrameS56C, 56C
Frame RemarksFOOTED
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower1/3 hp, 0.33 HP
Horsepower Rating0.33 HP
HP0.33
Insulation ClassClass B
Insulation TypeClass B
Item ConditionFACTORY NEW
Item Number103082.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number103082.00
MaterialRolled Steel
MFG Part #:103082.00
Model NumberM4C17FK7
Motor TypeCapacitor Start
mountingC-face w/ rigid base
Mounting TypeC-Face Less Base, Rigid.
NEMA FrameS56C
Net Weight24 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles4
Number of Speeds1
Overall Length10.31 "
Overload ProtectionManual
Phase1, 1 Phase, 1 ph
Product SeriesGeneral Purpose
RotationSelective CCW
RPM1725 RPM, 1,800 RPM, 18.
Service Factor1.15
Shaft DiameterUL;CSA
Shaft Size0.63 in Dia x 1.88 in L
Special FeaturesService Factor - 1.15, .
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage115/208-230 VAC
TypeCapacitor Start Inducti.
UPC Code691720354117
UPC:691720354117
Volts115/208/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0773SZY6C306.661In Stock3Leeson Electric306.66 @ 1
thumbzoomDealers Electric103082.00314.91In StockLeeson24.0314.9 @ 1
us.rs-online.com72239298444.031In StockLeeson444.03 @ 1
thumbzoomGalco103082.00-LEES448.981In StockLeeson24.0448.98 @ 1
thumbzoomWalker Industrial103082-00486.424In Stock17Leeson486.4 @ 24
kscdirect.comLEE 103082.00527.011In StockLEESON ELECTRIC CORPORATION527.01 @ 1
thumbzoomRaptor SuppliesAJ2PQY615.15704251In StockLEESON615.1570425 @ 1
