Leeson 113583.00

B00EP2T0QO

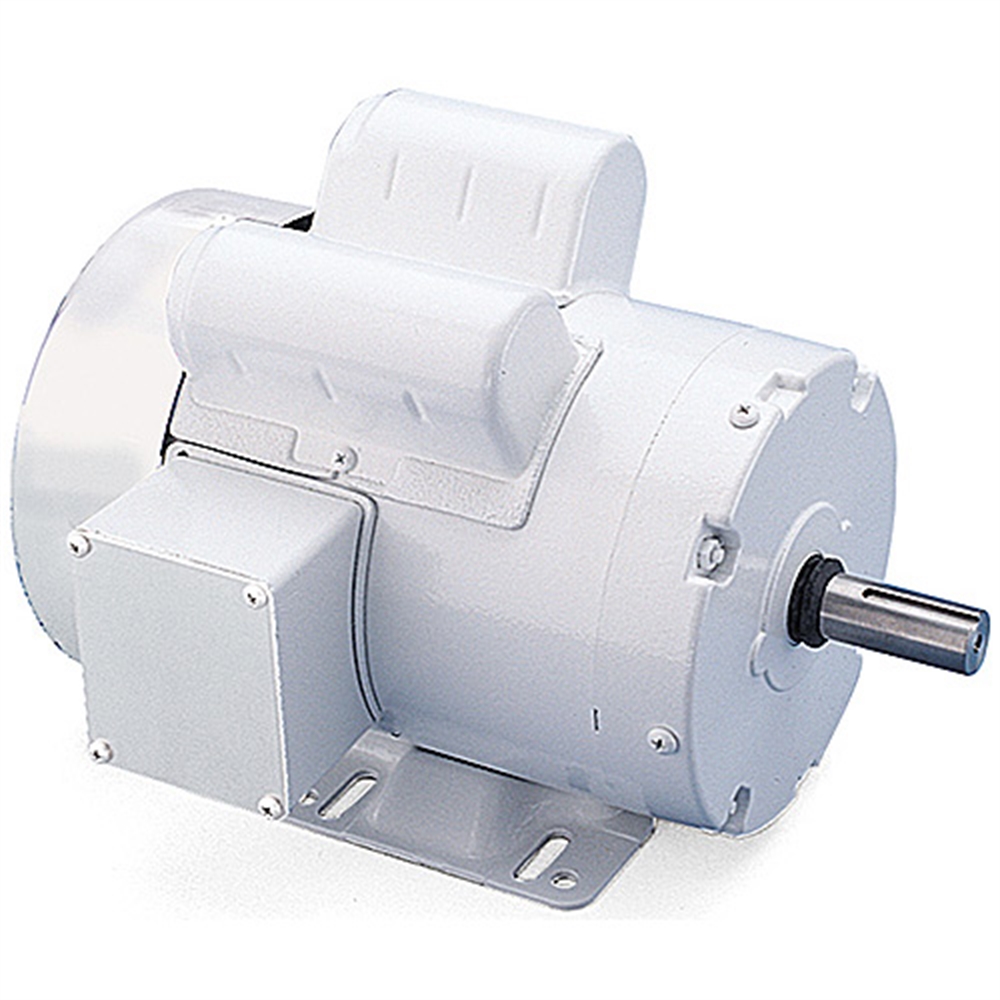

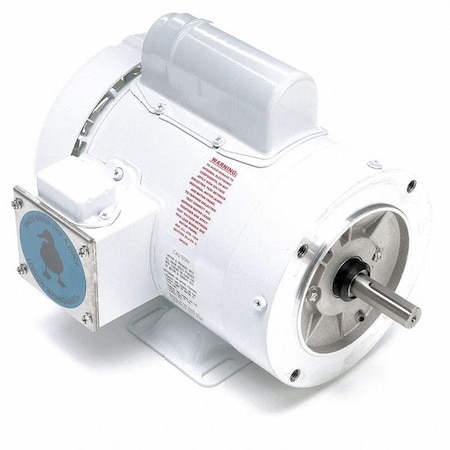

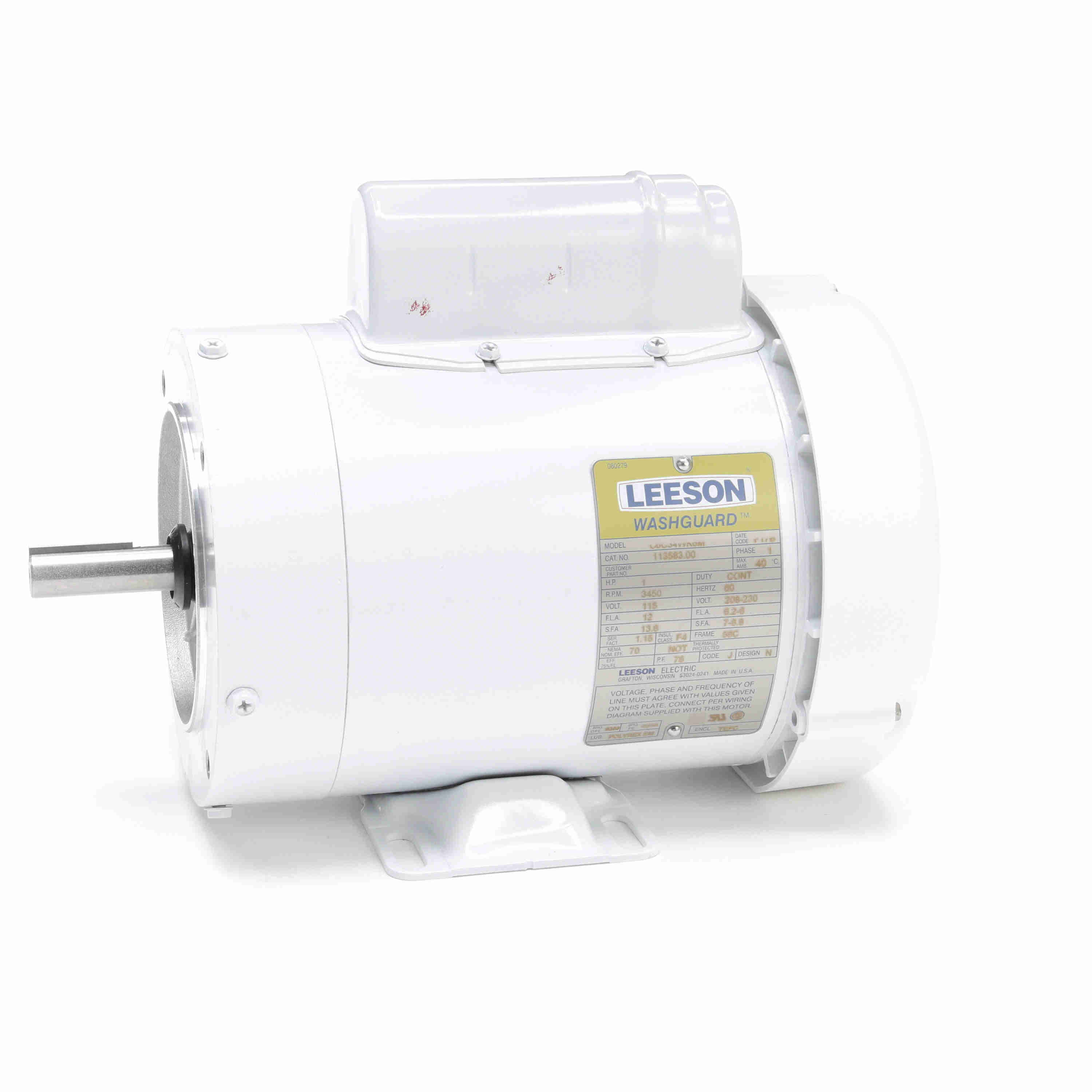

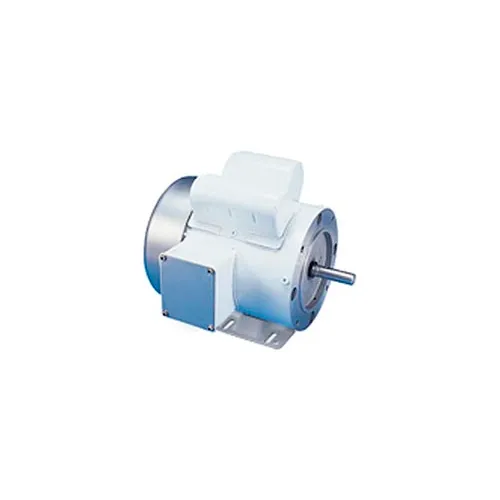

Leeson 113583.00 White Epoxy Painted Washguard Motor, 1 Phase, 56C Frame, Rigid Mounting, 1HP, 3600 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 113583.00 White Epoxy Painted Washguard Motor, 1 Phase, 56C Frame, Rigid Mounting, 1HP, 3600 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage12/6.2-6 Amps
Amperage Rating12/6.2 to 6 A
Amps12.0/6.2-6.0
Application TypeGeneral Purpose AC Moto.
ApprovalsCSA, UL
Bearing TypeBall, 12.19
BearingsBall
Body Dia.7.4 in
Bolt Circle Dia.5 7/8 in
BrandLeeson
Catalog No.113583.00
CategoryElectric Motor
Class/GroupC6C34WK6
CompositionSteel
Conduit BoxSplit Clam Shell with R.
ConstructionRolled Steel
Current Stock9
Description:1HP.- C-FACE WITH BASE .
Dimensions11.87 in L x 8.75 in H
Drain Plugs(4) Each End, (2) In Co.
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency70.0%, 70
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight31.00
Family SeriesLeeson Motors, Washguar.
FL Amps12/6.2-6
FL Efficiency70
Frame56C
Frame MaterialRolled Steel
Frame RemarksFOOTED, WASHDOWN
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1 HP
HP1
Hz60
Ins. ClassF
Insulation ClassClass F, F
International ShippingNo
ItemWashdown Motor
Item ConditionFACTORY NEW
Item Number113583.00
KW0.75
Lead TimeExpected to ship in 1-2.
Length Less Shaft9 15/16 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number113583.00
Manufacturers Warranty .1 yr
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:113583.00
Model NumberC6C34WK6
Motor BearingsBall
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Shaft RotationCCW, CW
Motor Shell Length6.00"
Motor Thermal ProtectionNone
MountingFoot Mount, Rigid Base
mountingC-face w/ rigid base
Mounting TypeC-Face Less Base, C-Fac.
Mpn113583.00
NEMA Frame56C
Net Weight31 lbs
Nominal Voltage120 VAC, 208 VAC, 240 V.
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length11.87", 11 7/8 in, 12.1.
Overload ProtectionNone
Part Number113583.00
Phase1, Single, 1 ph
Power1 HP
Product SeriesWashguard
Product TypeWashdown Duty, Capacito.
RotationSelective CCW, Reversib.
RPM3450, 3600, 3400 - 3600.
RPM Range3,001-3,600
Service Factor1.15
Shaft5/8" dia. x 1-15/16" w/.
Shaft Dia.5/8 in
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88, 1 7/8 in
Shaft MaterialStainless Steel
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight34 lbs.
Shpg.38 lbs.
Size12-3/16" x 9-1/8" x 9"
SKUZO-G4241940
Special FeaturesCapacitor Start Motors
Speed3450 RPM
Speed (RPM)3450
SubCategoryMotors/Ac Motors
Supplier:LEESON ELECTRIC CORPORA.
UPC691720012123
UPC:691720012093
Voltage115/208-230 AC, 110-120.
Volts115/208/230, 115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com113583338.01In StockLEESON338.0 @ 1
thumbzoomGlobal IndustrialWBB228196425.951In Stock17Leeson425.95 @ 1
AmazonTPB00EP2T0QO428.921In Stock2Leeson428.92 @ 1
thumbzoomMRO Supply2525681462.711In StockLeeson462.71 @ 1
thumbzoomemotorpro.com113583.00492.491In StockLeeson34.0492.49 @ 1
thumbzoomZoroG4241940493.99136Leeson32.0493.99 @ 1
thumbzoomDealers Electric113583.00532.521In StockLeeson34.0532.52 @ 1
thumbzoomsurpluscenter.com10-2851561.551In StockLeeson561.55 @ 1
thumbzoommotorsandcontrol.comLE-113583.00569.54132Leeson Electric31.0569.54 @ 1
us.rs-online.com73397275574.021In StockLeeson574.02 @ 1
thumbzoomGalco113583.00-LEES574.021In StockLeeson31.0574.02 @ 1
thumbzoomsimsupply.comZO-G4241940587.0419Leeson587.04 @ 1
thumbzoomAutomation Direct113583.00596.013Leeson34.0596.0 @ 1
kscdirect.comLEE 113583.00597.111In StockLEESON ELECTRIC CORPORATION597.11 @ 1
thumbzoomWalker Industrial113583-00681.621In Stock17Leeson681.62 @ 1
cbtcompany.com113583.00688.971In StockLeeson Electric688.97 @ 1
thumbzoompumpproducts.com113583.00893.761In StockLeeson893.76 @ 1
thumbzoomRaptor SuppliesAJ2QKE937.4343031In StockLEESON937.434303 @ 1
