Leviton M8200-ILG

B005ZAOHOU

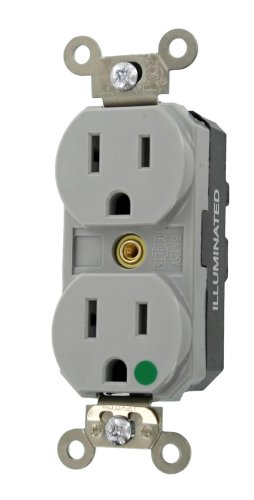

Leviton M8200-ILG Lev-Lok 15-Amp, 2P, 3W, Illuminated Face, Straight Blade, Hospital Grade, Isolated Ground, Modular Wiring Device Duplex Receptacle, Gray

Leviton M8200-ILG Lev-Lok 15-Amp, 2P, 3W, Illuminated Face, Straight Blade, Hospital Grade, Isolated Ground, Modular Wiring Device Duplex Receptacle, Grayzoom

Attributes

Key Value
(2P) Double PolePole
07847755299UPC
10 Year LimitedWarranty
125 VACVoltage (V)
15 AAmperage
15A-125VAmp Rating
3Wire Number
5-15RNEMA
Amperage Rating15 A
Amperage Rating:15 A
CategoryElectrical Receptacles
ColorGray
Color:Gray
Connection:Modular Terminal
Country of OriginMX
Country of Origin (subj.Mexico
Description:GY LEV-LOK REC DUP HG I.
Dielectric Strength:2000 (Min.) V
Dimensions46 in H x 1.53 in W x 1.
Environmental Condition.Flammability (Rated V-2.
For additional options .Notes
GradeCommercial
GrayColor
Horsepower1/2 hp
ItemLeviton M8200-Ilg 15 Am.
Lev-Lok? Modular DevicesFamily
LevitonBrand
M8200-ILGStock Code
ManufacturerLEVITON, Leviton Manufa.
MaterialThermoplastic, Nylon, T.
Material:Thermoplastic
MFG Part #:M8200-ILG
Mounting:Wall Box
NEMA Configuration5-15R
NEMA RatingNEMA 5-15R
NEMA Rating:5-15R
Number of Poles2
Number Of Poles:2
Number of Wires3
Number Of Wires:3
Phase:1
Size:46 H x 1.53 W x 1.22 D .
Standard Pack:Order QTY must be in mu.
Standard:NEMA (WD-1, WD-6);ANSI .
Sub Brand:Lev-Lok
Supplier:LEVITON
Temperature Rating-40 to 60 deg C
Temperature Rating:-40 to +60 DEG C
Terminal TypeModular
Type1-Phase Duplex Extra He.
Type:Straight Blade;Duplex O.
UL / ANSI / CSA / NOM /.UL Listed
UNSPSC39121406
UPC078477552995
UPC:078477552995
Voltage125
Voltage Rating125 VAC
Voltage Rating:125 V
Wire Size:12 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG082073627.271In Stock9Leviton27.27 @ 1
thumbzoomLighting SupplyM8200-ILG33.671In StockLeviton33.67 @ 1
thumbzoomPlatt.com028670434.01In StockLeviton34.0 @ 1
thumbzoomgordonelectricsupply.comM8200-ILG34.071In Stock755LEVITON34.07 @ 1
Dale-ElectricM8200-ILG34.671In StockLeviton Manufacturing34.67 @ 1
kscdirect.comLEV M8200-ILG35.861In StockLEVITON35.86 @ 1
thumbzoomturtle.comLEV M8200-ILG40.251In StockLeviton40.25 @ 1
thumbzoomRadwellM8200-ILG44.050In StockLEVITON44.0 @ 50
thumbzoombulbspro.comM8200-ILG50.911In StockLeviton50.91 @ 1
us.rs-online.com7240455056.4450In StockLeviton56.44 @ 50
