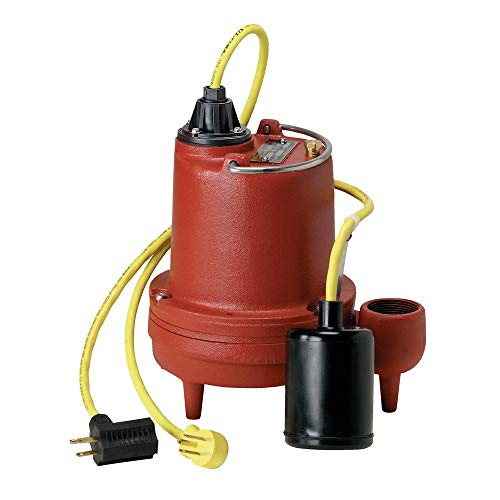

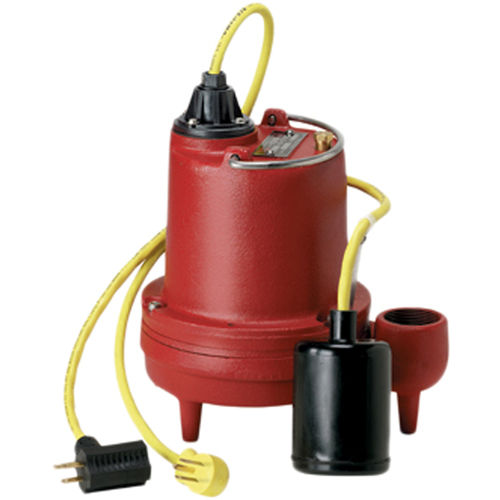

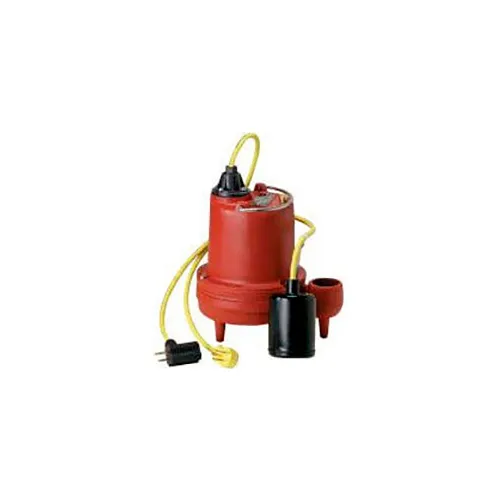

Liberty Pumps HT41A

B000CG7CSU

4/10 HP 1-1/2" Submersible Sump Pump 115V Tether

4/10 HP 1-1/2" Submersible Sump Pump 115V Tetherzoom

Attributes

Key Value
ADA CompliantNo
AdjustableNo
AMP12
Amperage Rating12 A
ApplicationCommercial, Residential
Automatic Shut-OffYes
Body Dia.9 13/16 in
BrandLiberty Pumps
Brand Model Compatibili.High Temp Sump Pumps
Built-In GrinderNo
Clean BaggedNo
CoatingPowder Coated
CollectionHT40 Series
Color Finish CategoryReds
Color Finish NameRed, Black, Yellow
Connection TypeFPT
Cord Length10', 10 ft
Cord Length - Pumps10 ft.
Cord TypeSJEOOW
Corded CordlessCorded
Cover IncludedNo
Current Stock42
Description:4/10 HP, Submersible Hi.
Diameter9-13/16", 9 in
Diameter - Base9 in
Dimensions9.8 in W x 9.6 in H
Discharge1-1/2", 1-1/2 in
Discharge ConfigurationVertical
Discharge Dia.1 1/2 in
Discharge NPT1-1/2" F
End Connection 1FNPT
End ConnectionsFNPT
Energy Star CompliantNo
Fits Pipe Size1-1/2 in
Flow Rate65 gpm
Frequency Rating60 Hz
Height9-5/8", 17-1/2 in
Horsepower4/10 hp
Housing MaterialCast iron
HP4/10
Hz60
ImpellerVortex
Impeller MaterialEngineered Polymer
Impeller TypeVortex
Installation TypeFreestanding
International ShippingNo
ISOISO 9001
ItemHigh-Temperature Submer.
Length12 in
MA Approved -Yes
ManufacturerLiberty Pumps, Liberty .
MaterialCast iron
Max Head19'
Max. Dia. Solids3/4"
Max. Diameter Solids3/4 in
Max. Head20.0 ft
Max. Temp.200 Degrees F
Maximum Feet of Head19
Maximum Head20 ft
Maximum Temperature200
MFG Part #:HT41A
Min. Sump Pit Dia.18 in
Motor RPM1550
Motor TypeShaded pole
MpnHT41A
NSF CertifiedNo
On Point13 1/2 in
OriginDomestic
Outlet Size1-1/2 in FNPT
Overall Height9 5/8 in
Part NumberHT41A
Phase1, Single Phase, 1 ph
Power SourceElectric
ProductSump
Product TypeSubmersible, High Temp .
Prop 65WARNING: Cancer and Rep.
Pump Application -Sump
Pump Body MaterialCast iron
Pump Motor TypeThermally Protected
Pump Phase1
Pump Stage1
Pump TypeSubmersible Pump
RPM3450
SeriesHT40, HT40 Series
Shaft SealCarbon/Ceramic, Buna N,.
Shaft Seal Material - P.Nitrile Rubber, Carbon,.
SKUZO-G1650521
SubCategoryPumps
Supplier:Liberty Pumps Inc
SwitchAuto
Temperature Rating200, 302 deg F Thermal .
Turn On/Turn Off LevelsTurn-on 12 in/Turn-off .
TypeLHT41A, Automatic High .
UPC671812103533
UPC:671812103533
VA Cat 60 Hz115
Voltage115
Voltage Rating115 VAC
Volts115, 115V
Weight38 lb
Width8-3/4 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomCanarseeHT41A460.9515LIBERTY PUMPS460.95 @ 1
AmazonTPB000CG7CSU469.01In Stock2LIBERTY PUMPS469.0 @ 1
thumbzoomnyrpcorp.comLIHT41A522.01In StockLiberty Pumps522.0 @ 1
ferguson.com2369016522.01In StockLiberty Pumps38.0522.0 @ 1
thumbzoomPlumbersStock72194522.01In StockLiberty36.0522.0 @ 1
thumbzoomZoroG1650521522.0190Liberty Pumps35.7522.0 @ 1
thumbzoomPexUniverseHT41A522.01In StockLiberty Pumps522.0 @ 1
AF SupplyHT41A522.01In StockLiberty Pumps522.0 @ 1
thumbzoompumpproducts.comHT41A535.381In Stock26Liberty535.38 @ 1
thumbzoomGlobal IndustrialWBB2333679549.01In StockLiberty Pumps549.0 @ 1
kscdirect.comLIB HT41A563.71In StockLiberty Pumps Inc563.7 @ 1
thumbzoomsimsupply.comZO-G1650521605.591In StockLiberty Pumps605.59 @ 1
thumbzoomGateway SupplyHT41A622.81In StockLiberty Pumps622.8 @ 1
thumbzoomEdge SupplyHT41A696.01In StockLiberty Pumps696.0 @ 1
thumbzoomwaterpumpsnow.comHT41A731.811In StockLiberty36.0731.81 @ 1
