Marathon Industries 326TSTDP16005

B07HJWBRJV

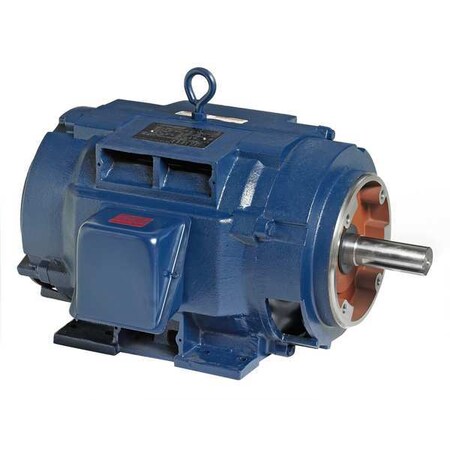

Motor 60 HP 3555 RPM 230/460V 326TSC

Motor 60 HP 3555 RPM 230/460V 326TSCzoom

Attributes

Key Value
CC NumberCC003A
ClassificationGeneral Purpose
CompositionCast Iron
Country of Origin (subj.United States
DutyContinuous
Efficiency %94.1 %
EnclosureODP, Open
Family SeriesMarathon Electric Motors
Frame326TSC
Frame MaterialCast Iron
Frame RemarksC-Face Rigid
Full Load Amps135.0/67.5
Gross Weight0 lbs
Horsepower60 hp
HP60
Hz60/50
Ins. ClassF
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number326TSTDP16005
Kilowatts45 kW
Length Less Shaft22-1/2"
ManufacturerMarathon Electric
Manufacturer Part NumberU447A
Manufacturers Warranty .1 yr.
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Mounting TypeFooted
Nameplate RPM3555
NEMA Frame326TSC
Net Weight483 lbs
No. of Speeds1
Nominal Efficiency96.2%
Nominal Voltage240 VAC, 277 VAC, 347 V.
Overall Length26"
Phase3
RPM3,555 RPM, 3600
RPM Group3001-3600
RPM Range3001-3600
Service Factor1.15
Shaft Dia.1-7/8"
Shaft Length3-3/4"
StandardsUL, CSA
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Voltage Compatibility460, 230/460, 220-230/4.
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG19917403802.971In Stock25Marathon Motors3802.97 @ 1
thumbzoomGalco326TSTDP16005-MARA5166.881In StockMarathon Electric483.05166.88 @ 1
thumbzoomDealers Electric326TSTDP160056869.531In StockMarathon Electric483.06869.53 @ 1
