Martin 6 5V 1130 E

B004BJ2F54

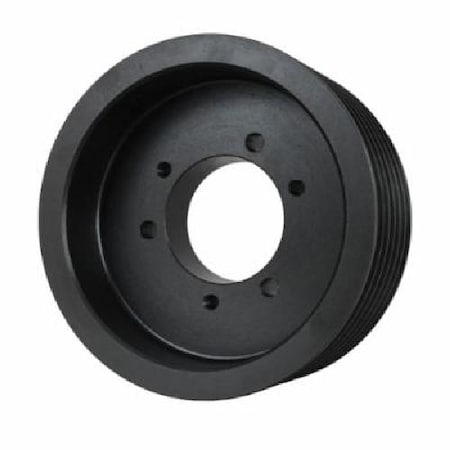

Martin 6 5V 1130 E Hi-Cap QD Sheave, 5V Belt Section, 6 Grooves, E Bushing required, Class 30 Gray Cast Iron, 11.3" OD, 2196 max rpm, 11.2" Pitch Diameter

Martin 6 5V 1130 E Hi-Cap QD Sheave, 5V Belt Section, 6 Grooves, E Bushing required, Class 30 Gray Cast Iron, 11.3" OD, 2196 max rpm, 11.2" Pitch Diameterzoom

Attributes

Key Value
Belt Cross Section5V
Bore TypeBushed
Bushed ForE
Bushing Maximum Bore Si.2.875 "
Bushing MountReverse
Bushing StyleQD
Length Through Bore2.625 "
MaterialCast Iron
Number of Grooves6
Outer Diameter11.3 in
Outside Dia11.300"
Pitch Diameter11.2 "
Sheave ConstructionWeb
Sheave Face Width4.4375 "
Sheave TypeHigh Capacity
UPC Code697950119779
Weight35.9 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com72480265411.01In StockMartin Sprocket & Gear35.9411.0 @ 1
thumbzoomMRO Supply255508429.041In StockMartin Sprocket429.04 @ 1
factorysupplyoutlet.comBT87MA434.41In Stock25MARTIN434.4 @ 1
thumbzoomPurvis6 5V 1130 E448.161In StockMartin448.16 @ 1
thumbzoomapexindustrialautomation.com6 5V 1130 E466.351In StockMartin Sprocket466.35 @ 1
cbtcompany.com6 5V 1130 E495.061In StockMartin Sprocket & Gear495.06 @ 1
thumbzoomZoroG3376209550.991In StockMartin Sprocket & Gear550.99 @ 1
